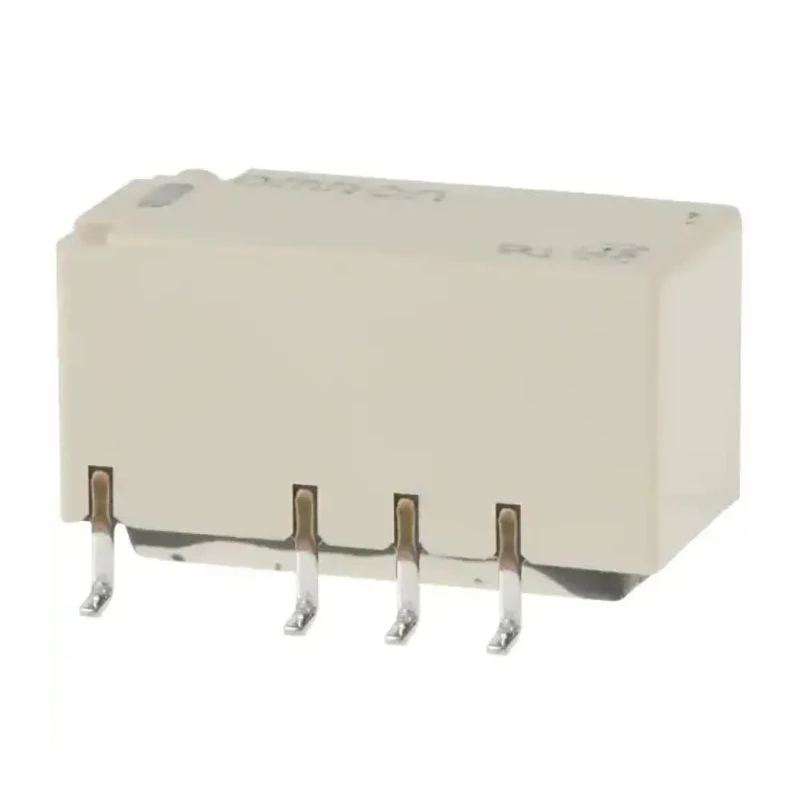

Omron Surface Signal Relay DPDT 2A Switching 12V DC Coil 75mΩ Contact Resistance Silver Alloy Contacts G6S-2F-TR DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 15mm |
| Model | G6S-2F-TR DC12 |
| Width | 7.5mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | HFD3-V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 75mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1000Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- Compact surface mount relay with dimensions 15mm length, 9.2mm height, and 7.5mm width.
- Contact material made of silver alloy ensuring durable and consistent electrical contact.
- Switching voltage capacity up to 250V AC and 220V DC for versatile use.
- Operating temperature range from -40°C to 85°C suitable for harsh environments.
- Low contact resistance of 75 milliohms for efficient signal transmission.
- Coil resistance of 1000 ohms and coil power consumption of 140mW for energy efficiency.
- Fully sealed design with long terminals ideal for soldering and mounting reliability.
- Compliant with RoHS to ensure environmentally safe manufacturing standards.
Product Description
Omron G6S-2F-TR DC12 Surface Signal Relay is a high-quality DPDT relay designed for signal switching with a 12V DC coil and 2A switching current. It features a compact surface mount design with dimensions of 15mm length, 9.2mm height, and 7.5mm width. The contact material is silver alloy, providing reliable electrical performance over extended use.
This relay supports a switching voltage of up to 250V AC and 220V DC, making it versatile for various electrical applications. Its operating temperature range of -40°C to 85°C allows it to function reliably in demanding industrial and commercial environments.
The G6S relay has a coil resistance of 1000 ohms and consumes 140mW power, contributing to lower energy use. Contact resistance is low at 75 milliohms, ensuring high signal integrity. The fully sealed construction and long terminals improve durability and ease of mounting through soldering on printed circuit boards.
It complies with RoHS standards, reflecting environmentally responsible manufacturing processes. Typical applications span across telecommunications equipment, measurement instruments, office automation machinery, audio-visual products, security devices, building automation systems, and amusement equipment.
Omron’s G6S-2F-TR DC12 relay represents a reliable and industry-trusted choice for engineers and manufacturers needing robust Signal Relays with surface mount compatibility. Its high switching capacity and compact footprint make it ideal for dense PCB layouts in industrial and commercial electronic systems.
Compact surface mount relay for space-saving PCB integration. Durable silver alloy contacts minimize electrical degradation. Wide operating temperature range for industrial use. Low power coil contributes to energy-efficient operation.
Sealed construction protects internal components from environmental factors. High switching voltage and current support diverse application needs. RoHS compliance guarantees safe and environmentally friendly design. Versatile applications include telecommunications, security, automation, and measurement devices.
Explore a broad selection of relays and signal conditioning equipment in EnvMart’s Electronics & Electricals category for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The G6S-2F-TR DC12 relay has a switching current capacity of 2A.
This model operates with a coil voltage of 12V DC.
The contact resistance is 75 milliohms, which helps ensure efficient signal transmission.
The relay has dimensions of 15mm in length, 9.2mm in height, and 7.5mm in width.
It supports a maximum switching voltage of 250V AC and 220V DC.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
The coil power consumption is 140mW, contributing to its energy efficiency.
The contact material is silver alloy, which provides reliable electrical performance.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing processes.
It supports surface mounting, making it suitable for printed circuit board applications.
Typical applications include telecommunications equipment, measurement instruments, office automation machinery, and building automation systems.
