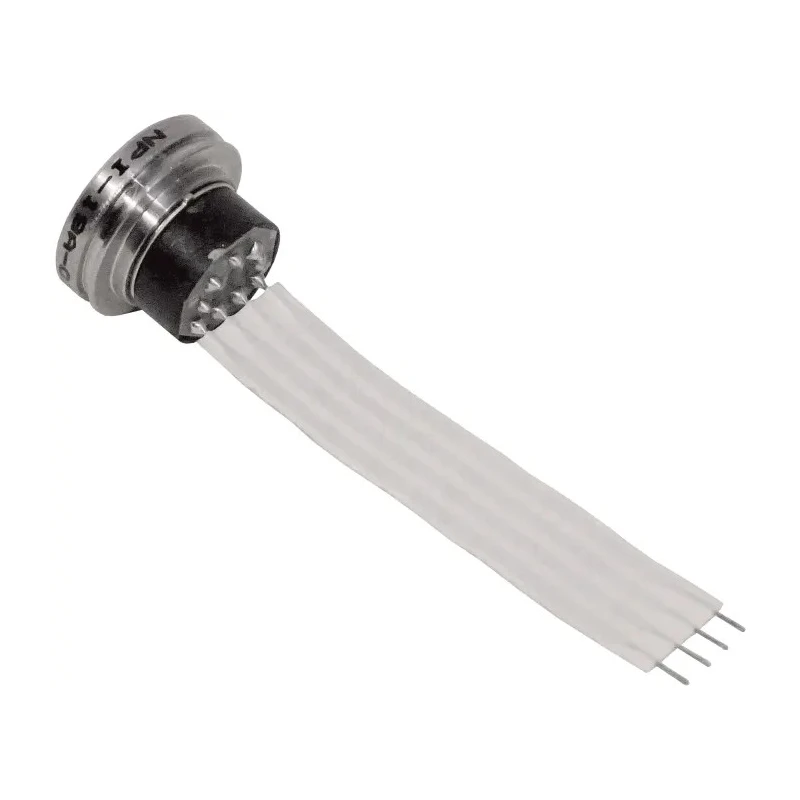

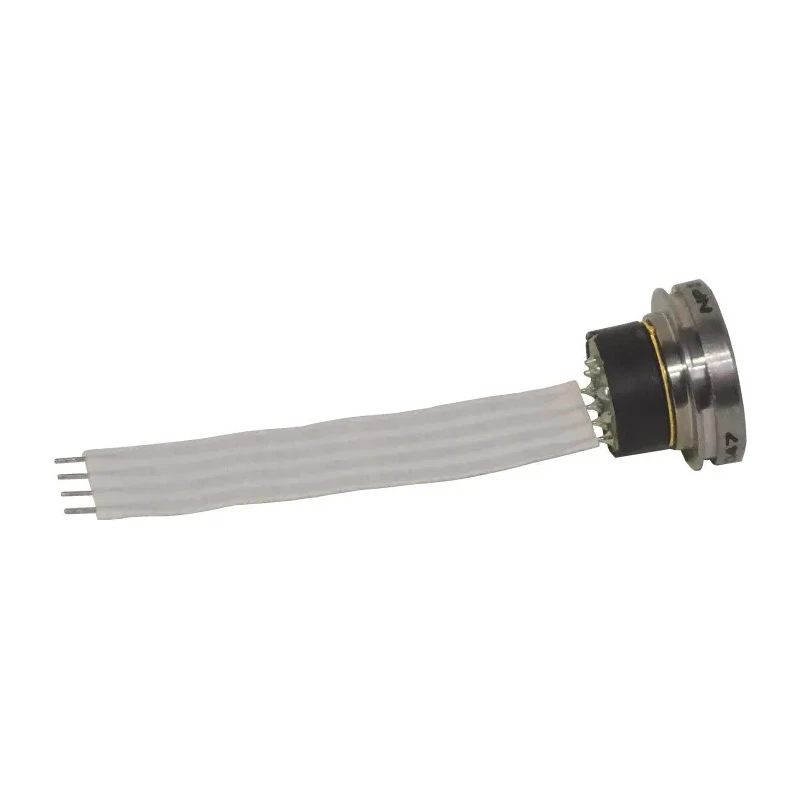

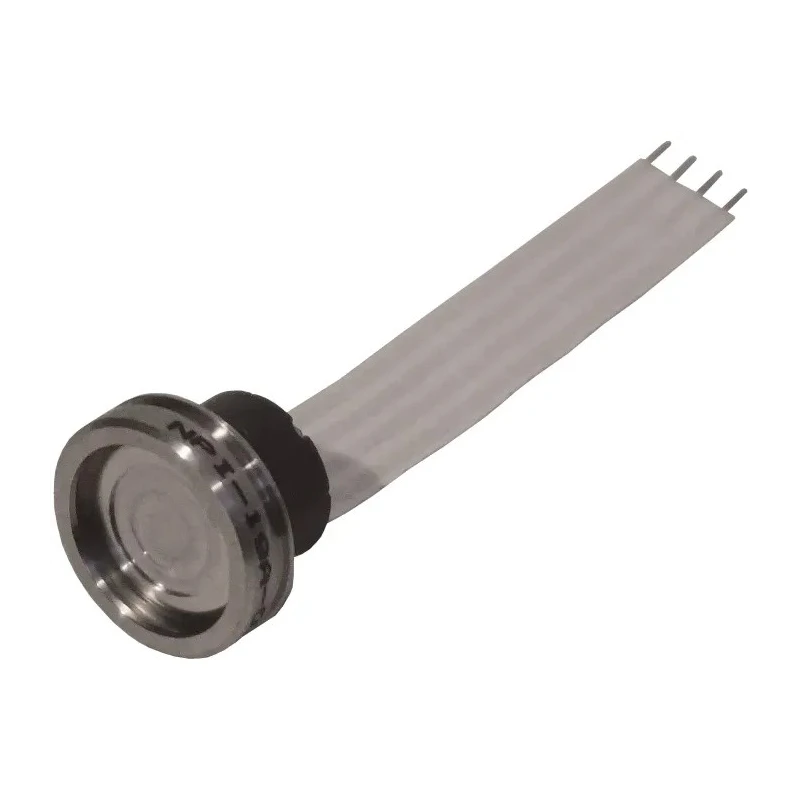

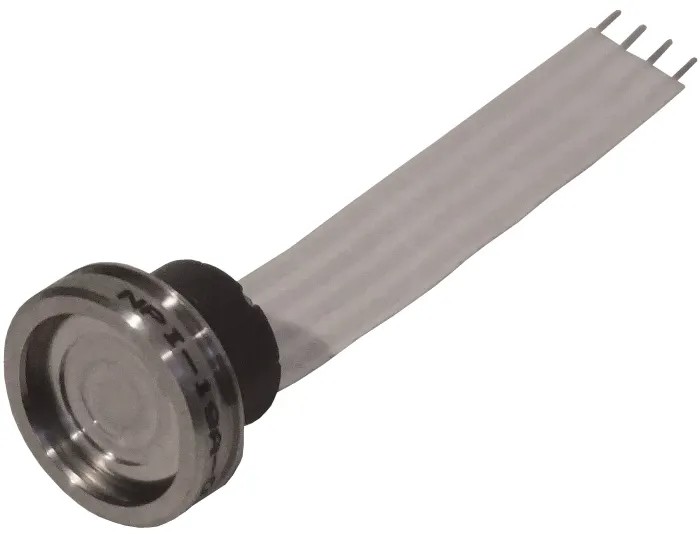

Amphenol Advanced Sensors NPI-19 Series Pressure Sensor Digital Output Absolute 0 psi to 200 psi NPI-19A-200A2

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Advanced Sensors NPI-19 Series Pressure Sensor Digital Output Absolute 0 psi to 200 psi NPI-19A-200A2

Name: Amphenol Advanced Sensors NPI-19 Series Pressure Sensor Digital Output Absolute 0 psi to 200 psi NPI-19A-200A2
Brand: Amphenol Advanced Sensors
SKU: 168820
Price: 107.08 USD
Availability: InStock



Category Pressure Sensor Brand Amphenol Advanced Sensors Condition New

Specifications

Country of Origin	China
Accuracy	±0.25 %
Brand	Amphenol Advanced Sensors
Model	NPI-19A-200A2
Housing Material	Stainless Steel
Output type	Digital
Series	NPI-19
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Maximum Pressure Measurement	200psi
Minimum Pressure Measurement	0psi
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Pressure Reading Type	Absolute
Media Measured	Gas, Liquid

Key Features

It features a stainless steel housing for durability in harsh conditions.
The sensor supports I2C digital interface with a 14-bit output for precise measurements.
Operates within a temperature range from -40°C to 125°C ensuring wide application suitability.
Provides ±0.25% full scale output linearity and ±1% total error band for high accuracy.
Supplies a stable output with SenStable® processing technology minimizing drift.
Rated for 2.5 V minimum and 5.5 V maximum supply voltages, consuming 3 mA current.
Designed to measure gas and liquid media pressures with absolute reading type.
Offers 2X overpressure and 3X burst pressure protection enhancing robustness.

Product Description

Amphenol Advanced Sensors NPI-19A-200A2 pressure sensor features a robust stainless steel housing, engineered for accurate absolute pressure measurements up to 200 psi. It utilizes advanced SenStable® processing technology to ensure excellent output stability and minimal drift, critical for industrial and laboratory sensor applications.

The sensor outputs a 14-bit digital signal via I2C interface, facilitating easy integration with control systems and automation platforms. Its operating voltage range from 2.5 V to 5.5 V and low current consumption of 3 mA make it efficient for embedded applications.

With an operating temperature range between -40°C and 125°C, the sensor performs reliably in extreme environmental conditions common in manufacturing, HVAC, and process control industries. Its ±0.25% full scale linearity and ±1% total error band ensure high measurement accuracy required for precision instrumentation.

The sensor is suitable for measuring the pressure of both gases and liquids, delivering absolute readings which are essential for applications requiring reference to vacuum or atmospheric pressure. Mechanical protections include 2X overpressure and 3X burst pressure ratings, increasing operational safety and durability in demanding industrial environments.

Stainless steel housing for resistance to harsh environments. 14-bit digital I2C output for high-resolution pressure reading. Wide operating temperature range of -40°C to 125°C. High accuracy with ±0.25% linearity and ±1% total error band.

SenStable® technology ensures excellent output stability over time. Low power consumption with 3 mA current rating. Capable of measuring absolute pressure on gases and liquids. Designed for industrial, laboratory, HVAC, and process control applications.
