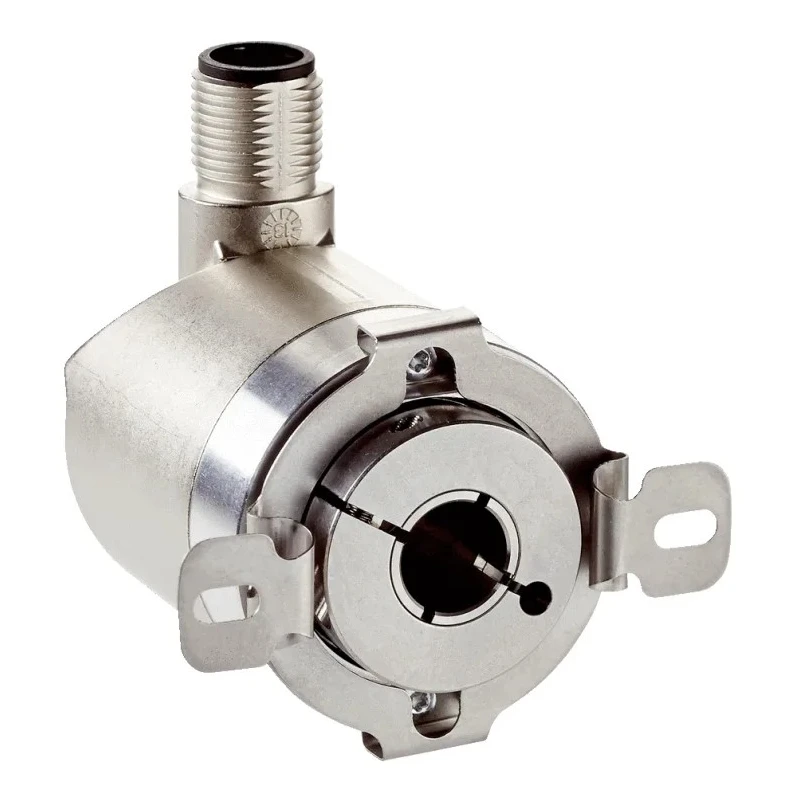

SICK AHS/AHM36 Series Absolute Encoder 32V Maximum 4096ppr SSI Signal Blind Hollow Shaft 10mm Diameter AHM36
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Model | AHM36 |
| IP Rating | IP65 |
| Mount Type | Hollow Shaft Mount |
| Series | AHS/AHM36 |
| Overall Width | 36mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Shaft Diameter | 10mm |
| Overall height | 36mm |
| Shaft Type | Blind Hollow Shaft |
| Terminal type | Plug-In |
| Interface Type | SSI |
| Pulses per Revolution | 4096ppr |
| Maximum Supply Voltage | 32V |
| Overall Depth | 51mm |
| Encoder Technology | Absolute |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | SSI |
| 36 mm absolute encoder with maximum 26 bits (singleturn | 14 bits multiturn: 12 bits) |
Key Features
- Robust blind hollow shaft design with 10 mm shaft diameter.
- Supports SSI interface for precise absolute position measurement.
- Compact 36 mm housing diameter with IP65 rated enclosure.
- Operates reliably between -20°C and 70°C temperature range.
- Maximum rotational speed up to 9000 rpm.
- Stainless steel versions offer IP67 to IP69K protection for harsh environments.
- Includes intelligent diagnostic functions for maintenance interval evaluation.
- Suitable for mounting with servo flange and face mount flange options.
Product Description
SICK AHM36 series absolute encoder features a maximum supply voltage of 32V and supports 4096 pulses per revolution with SSI output signal type. This encoder is designed with a blind hollow shaft type featuring a 10 mm shaft diameter, making it ideal for precise rotary position measurement in industrial automation and control applications.
The compact overall dimensions of 36 mm width and height with 51 mm depth and a hollow shaft mount type provide versatile installation options including face mount flange and servo flange. Its rugged stainless-steel construction ensures high resistance to environmental influences and IP65 protection rating, with Inox versions rated up to IP69K.
This encoder supports rotary speeds up to 9000 rpm and can operate in temperatures ranging from -20°C to 70°C. Advanced diagnostic functions help evaluate maintenance intervals, enhancing system reliability. The encoder’s magnetic sensor technology offers singleturn resolution of 14 bits and multiturn resolution of 12 bits, with total 26 bits resolution.
Robust blind hollow shaft design with 10 mm diameter. SS interface enables easy integration with various control systems. Compact design enables space-saving installations. Stainless steel versions suited for harsh environments.
Multiple mounting hole patterns and rotor adapter flanges. Applicable in industrial trucks, AGVs, packaging, logistics, and medical technology. Reliable under harsh ambient conditions due to stainless steel IP69K enclosure.
Diagnostic features support preventive maintenance planning. Compliant with EN 61000-6-3 and EN 61000-6-2 electromagnetic compatibility standards.
Installed in equipment such as gripper arms on garbage trucks, azimuth control motors on aircraft tractors, and screw gun monitoring devices, this encoder sets a benchmark for mechanical adaptation and communication robustness. The product is manufactured in Germany and designed for advanced industrial use cases including construction, manufacturing, HVAC, and water treatment systems.
Browse Environment & Automation Sensors at EnvMart to find related components from SICK and other reputable brands.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AHM36 encoder provides a maximum resolution of 26 bits, with a singleturn resolution of 14 bits and a multiturn resolution of 12 bits.
It operates reliably within a temperature range of -20°C to 70°C.
This encoder can handle a maximum rotational speed of up to 9000 rpm.
The encoder outputs a SSI (Synchronous Serial Interface) signal type.
The shaft diameter of this model is 10 mm.
The AHM36 encoder has an IP65 rating, ensuring protection against dust and water ingress.
The overall dimensions of this encoder are 36 mm in width and height, and 51 mm in depth.
This model can be mounted using a hollow shaft mount, with options for face mount flange and servo flange.
The maximum supply voltage for this encoder is 32V.
It is suitable for applications in industrial automation, including use in industrial trucks, AGVs, packaging, logistics, and medical technology.
The AHM36 encoder is manufactured in Germany.
It includes intelligent diagnostic functions that help evaluate maintenance intervals, enhancing system reliability.
