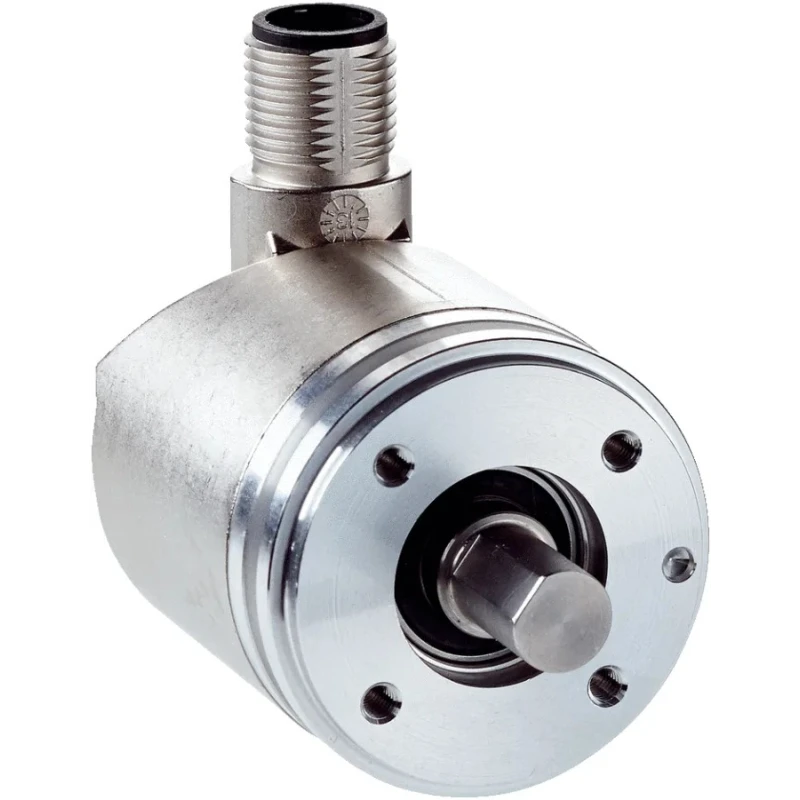

SICK AHS/AHM36 Series Absolute Encoder 32V, 4096 ppr, SSI Signal, Solid Type, 6 mm Shaft AHM36

SICK AHM36 Absolute Encoder AHM36 is a high-performance motion control sensor featuring absolute encoder technology with a 32 V maximum supply voltage and a resolution of 4096 pulses per revolution. This solid shaft encoder has a 6 mm diameter shaft and is designed with a compact profile measuring 36 mm in height, 36 mm in width, and 43 mm in depth. It offers reliable position feedback essential for precise automation and control applications.

The encoder supports a maximum rotational speed of 6000 rpm and operates reliably within an extended temperature range from -20°C to 70°C. It features an IP65 ingress protection rating for resistance to dust and water in industrial settings. The plug-in terminal type simplifies installation and maintenance, complemented by a full shaft mount type. The device complies with EN 61000-6-2 and EN 61000-6-3 EMC standards ensuring stable operation in electrically noisy environments.

Connectivity options include an SSI interface with a rotatable male connector or cable connection enabling flexible integration into various automation systems. Advanced diagnostic functions assist in evaluating maintenance intervals to enhance system reliability. The stainless steel version provides additional robustness with protection ratings up to IP69K, suitable for harsh environments.

This encoder finds widespread applications in industrial machinery, automated guided vehicles (AGV), packaging machines, logistics systems, commercial vehicles, and medical technology. Common uses include gripper arm positioning on garbage trucks, azimuth motor control, length measurement, and monitoring of roll-down gates.

The robust magnetic sensor technology ensures precise absolute positioning with a singleturn resolution of 14 bits and multiturn resolution of 12 bits, totaling up to 26 bits. The variety of mounting hole patterns and adapter flanges provide mechanical adaptability for nearly any installation requirement.

Integrated absolute encoder technology providing precise position feedback. Supports maximum 6000 rpm for high-speed applications. Equipped with IP65 rated robust housing suitable for industrial environments. Operates over a temperature range of -20°C to 70°C ensuring durability.

Features a plug-in terminal type for easy installation and maintenance. Compact design with overall dimensions 36x36x43 mm for space-saving mounting. Compliant with EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.

Interfaces include SSI with rotatable male connector or cable connection for versatile integration. Ideal for industrial automation tasks including position detection and azimuth motor control. Manufactured in Germany with stainless steel design options for harsh environments.
