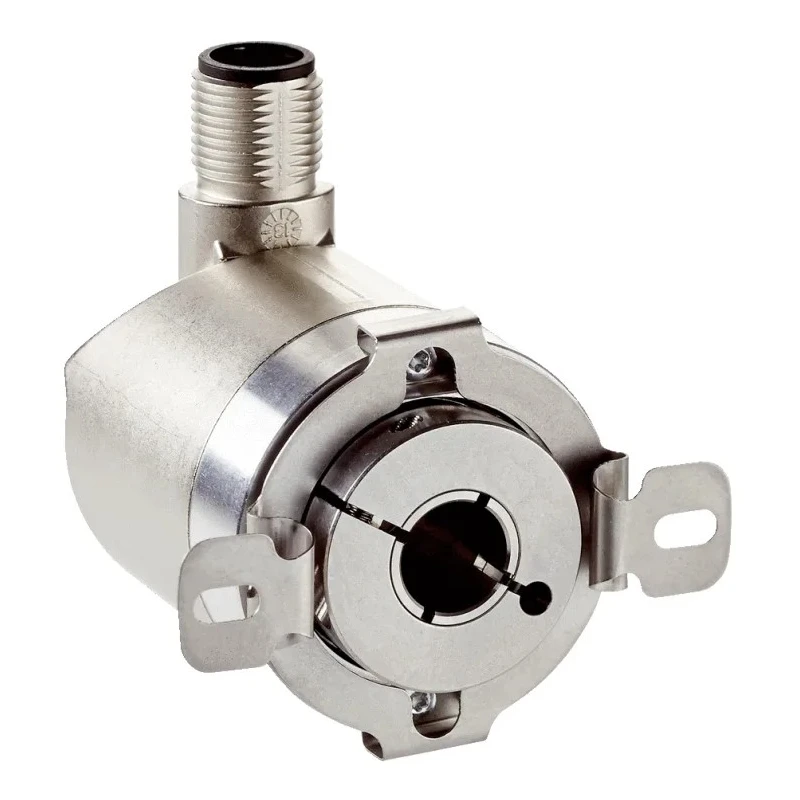

SICK AHS/AHM36 Series Absolute Encoder 32V, 4096 ppr, SSI Signal, Blind Hollow Shaft 10 mm AHM36

SICK AHM36 absolute encoder AHS/AHM36 Series operates with a maximum supply voltage of 32V and delivers a high resolution of 4096 pulses per revolution through an SSI output signal. It utilizes a blind hollow shaft type with a 10 mm diameter, designed for precise absolute position measurement with up to 26 bits total resolution (14 bits singleturn and 12 bits multiturn).

This encoder features a rotatable male connector or cable connection enabling simple mechanical installation and multiple mounting hole patterns. It supports IO-Link, CANopen, and SSI interfaces with programmable parameterization, easing integration into varied control systems. The product includes intelligent diagnostic functions that assess maintenance intervals, enhancing system uptime.

Built with stainless steel components in the Inox versions, the encoder is highly resistant to harsh ambient conditions and complies with IP67 to IP69K protection ratings. It conforms to EN 61000-6-2 and EN 61000-6-3 standards, ensuring electromagnetic compatibility.

The device maintains stable operation within a temperature range from -20°C to 70°C and a maximum rotational speed of 6000 rpm, with a switching frequency of 2 MHz for precise, high-speed applications. Compact dimensions (36 mm width, 36 mm height, and 51 mm depth) facilitate space-saving installation.

Typical industrial applications include positioning the gripper arms on garbage trucks, position detection in aircraft tractors, and steering angle measurement on heavy-duty trucks. It is also used in automated guided vehicle (AGV) systems, industrial trucks, packaging machines, logistics, machine construction, and medical technology.

This high-performance absolute encoder leverages a fully magnetic sensor system providing reliable feedback in demanding environments, making it a cost-efficient solution for various motion control needs.

Provides absolute position measurement with a maximum 26-bit resolution including 14 bits singleturn and 12 bits multiturn. Equipped with a rotatable male connector or cable connection for simple mechanical installation.

Interfaces support IO-Link, CANopen, and SSI with programmable parameterization for versatile control integration. Constructed with stainless steel versions offering IP67 to IP69K protection for harsh industrial environments.

Applications include gripper arm positioning on garbage trucks, aircraft tractor detection, and steering angle measurement on heavy trucks. Supports switching frequency up to 2 MHz for high-speed motion control. Compact design with overall dimensions of 36 mm width, 36 mm height, and 51 mm depth.
