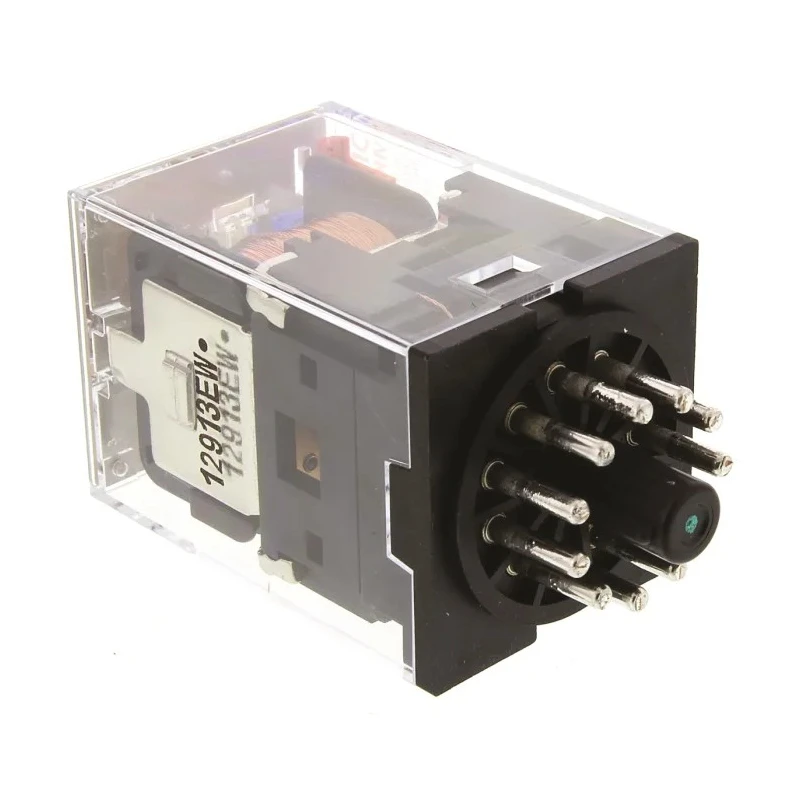

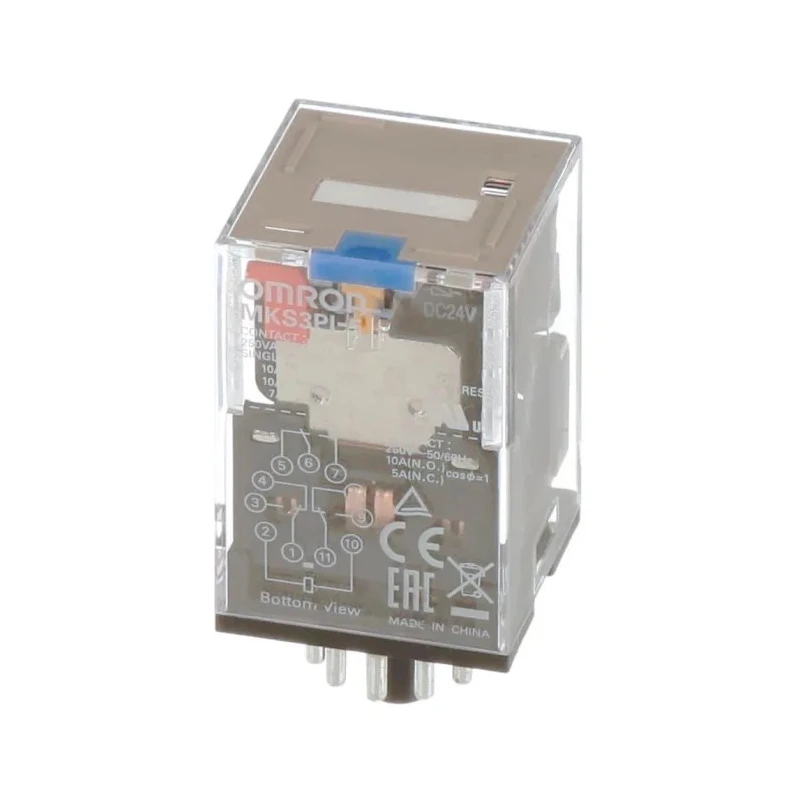

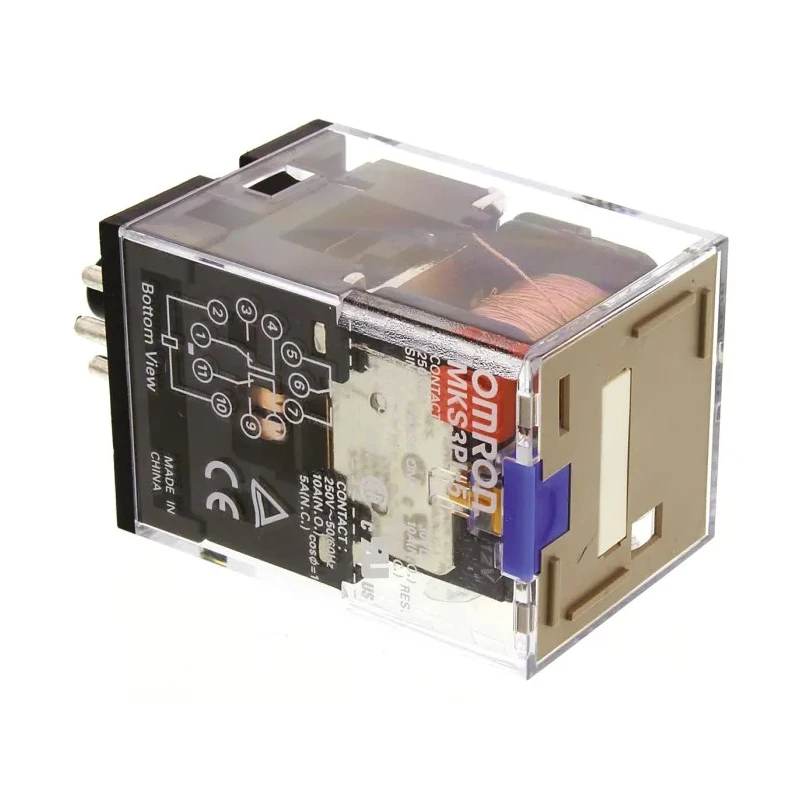

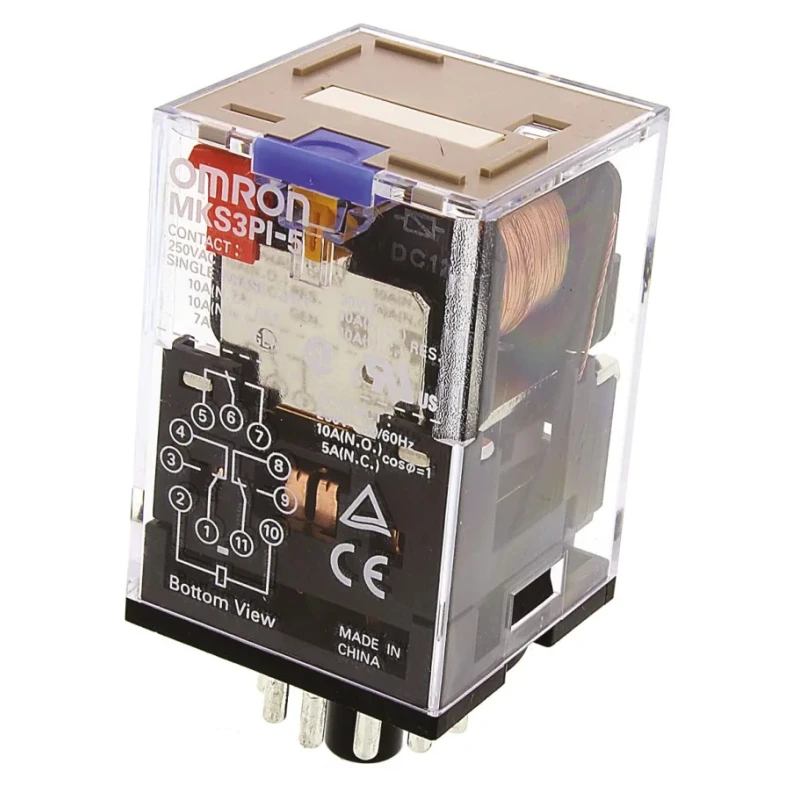

Omron PCB Relay 12V dc Coil 10A Switching Current 3PDT MKS3PI-5 12VDC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Operating Temperature | -40 → +60 °C |
| Height | 53.3mm |
| Length | 34.5mm |
| Model | MKS3PI-5 12VDC |
| Width | 34.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MKS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PDT |
| Contact Rating | 10A at 30Vdc/250Vac |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, EN, IEC, RoHS, UL |
| Coil Resistance | 107Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 2.5kW |
| RELAY MK3P-12VCCBrand | Omron |
Key Features
- Operates at a 12V DC coil voltage for reliable actuation.
- Supports a 10A switching current suitable for various loads.
- Provides a 3PDT (3 Pole Double Throw) contact configuration for versatile circuit control.
- Compact PCB mounting form factor with plug-in terminals for ease of installation.
- Contact material is Silver Alloy (AgSnIn) for enhanced conductivity and durability.
- Wide operating temperature range from -40°C to +60°C ensuring stable operation.
- Maximum switching voltage rated at 250V AC/DC making it adaptable for multiple systems.
- Mechanical indicator and lockable test button facilitate maintenance and status checks.
Product Description
Omron MKS3PI-5 12VDC PCB Relay 3PDT 10A Switching Current is a robust and versatile power relay engineered for demanding electronics and automation systems. It features a coil voltage of 12V DC with a 10A switching current capacity, making it ideal for switching medium power loads.
This relay supports a 3 Pole Double Throw (3PDT) contact configuration, enabling complex circuit operations through multiple contact points. Designed for PCB mounting, it includes plug-in terminals facilitating quick installation and replacement in automated and industrial environments.
The contact material utilizes a Silver Alloy (AgSnIn), which offers superior conductivity and resistance to contact wear, significantly enhancing the relay's service life and reliability under switching operations. Its compact dimensions of 34.5mm x 34.5mm x 53.3mm suit space-constrained applications.
Designed to operate reliably within a temperature range from -40°C to +60°C, this relay maintains performance in harsh environments. The maximum switching voltage is rated at 250V AC and 250V DC, allowing usage across a variety of AC and DC equipment.
In addition to electrical performance, the relay includes a mechanical indicator and a lockable test button with nameplate for easy status monitoring and maintenance, enhancing operational safety and diagnostics.
Industrial and commercial applications for this relay include control of motors, lighting systems, and automation machinery sequences. Its compliance with CE, EN, IEC, RoHS, and UL standards ensures adherence to international safety and quality requirements.
Operates at a 12V DC coil voltage for reliable actuation. Supports a 10A switching current suitable for various loads. Provides a 3PDT contact configuration for versatile circuit control. Compact PCB mount design with plug-in terminals for easy installation.
Utilizes Silver Alloy contact material for durability and conductivity. Wide temperature operational range from -40°C to +60°C. Maximum switching voltage of 250V AC and DC for flexible use. Includes mechanical indicator and lockable test button for maintenance.
Ideal for motor, lighting, and automation control applications. Certified to CE, EN, IEC, RoHS, and UL standards. Explore a wide range of Power Relays by Omron and other precision components in the Electronics & Electricals category at EnvMart for all your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current capacity of 10A, making it suitable for various loads.
This model operates at a coil voltage of 12V DC.
It features a 3 Pole Double Throw (3PDT) contact configuration, allowing for versatile circuit control.
The maximum switching voltage is rated at 250V AC and 250V DC.
The relay has dimensions of 34.5mm x 34.5mm x 53.3mm (L x W x H).
It operates reliably within a temperature range of -40°C to +60°C.
The contact material is Silver Alloy (AgSnIn), which enhances conductivity and durability.
This model is designed for PCB mounting and includes plug-in terminals for easy installation.
It is certified to CE, EN, IEC, RoHS, and UL standards, ensuring adherence to international safety and quality requirements.
The coil resistance is 107Ω.
Yes, it includes a mechanical indicator and a lockable test button for easy status monitoring and maintenance.
This relay is suitable for applications such as control of motors, lighting systems, and automation machinery sequences.
