Displaytech Alphanumeric LED LCD Monochrome Display 2 x 16 Characters, Green Yellow on Green Backlight 162H BC BW

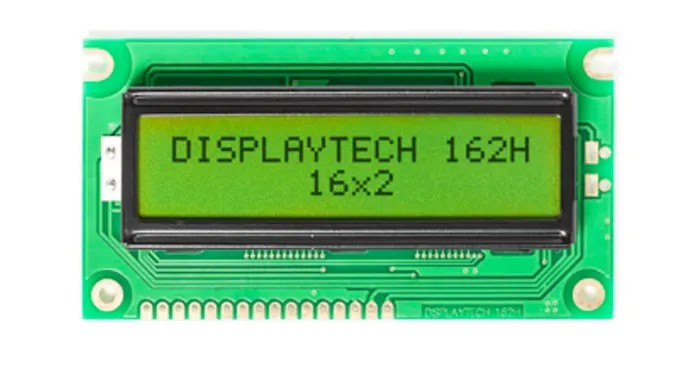

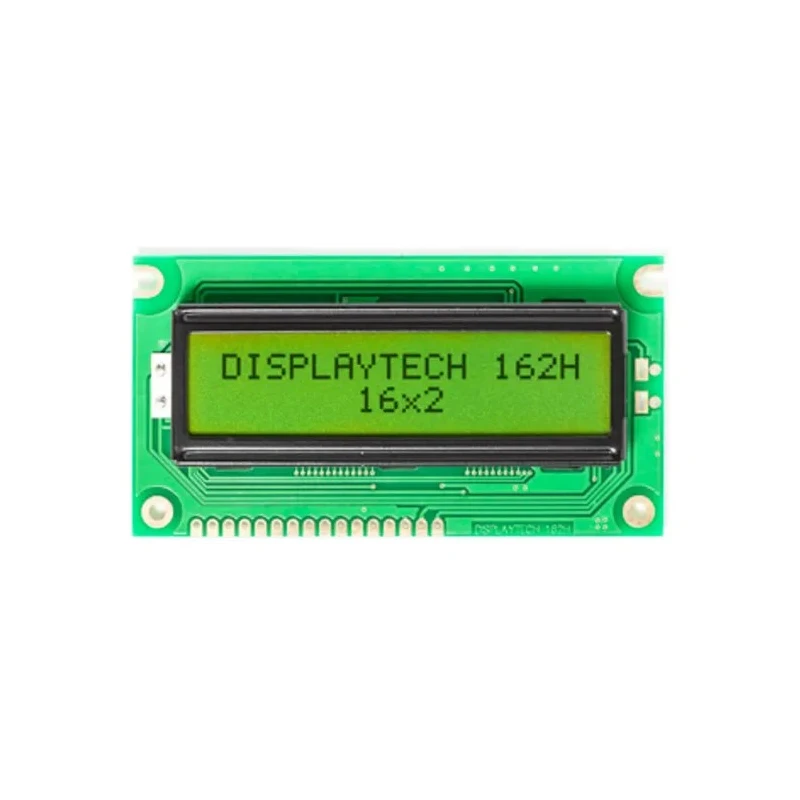

Displaytech 162H BC BW is an alphanumeric LED LCD Monochrome Display module offering a character matrix of 2 by 16, suitable for applications requiring compact and clear visual information output. The display features green and yellow LED backlighting on a green background, which provides excellent contrast and visibility in various lighting conditions.

With a viewing area of 66 x 16 mm, the display measures externally 84 mm in height, 9.7 mm in width, and 44 mm in depth. Each character is 5.6 mm tall and 3 mm wide, facilitating clear alphanumeric representation. The display adopts an STN transflective LCD type supporting low power consumption with a typical supply voltage of 4.2 V and operating current of approximately 1.2 mA, making it energy efficient.

This module operates reliably within a temperature range from -20°C to +70°C, making it suitable for diverse industrial, laboratory, and electronic component applications. The product complies with RoHS standards, ensuring environmentally friendly materials.

Character matrix layout of 2 rows and 16 columns with each character measuring 5.6 mm in height. Green and yellow LED backlighting enhances display readability in various lighting environments. Compact external dimensions with 84 mm height, 9.7 mm width, and 44 mm depth.

Wide operating temperature range from -20°C to +70°C for industrial robustness. Efficient power consumption with 4.2 V typical supply and 1.2 mA current. STN transflective LCD technology for good ambient light readability.

RoHS compliant ensuring safe and environmentally responsible manufacturing. Ideal for use in electronic devices, industrial displays, instrumentation, and laboratory equipment.

This alphanumeric monochrome display from Displaytech effectively balances high visibility and power efficiency, making it well-suited for demanding applications in electronics and automation sectors. Explore more related products and suitable display components in the EnvMart catalog to find the ideal match for your project requirements.
