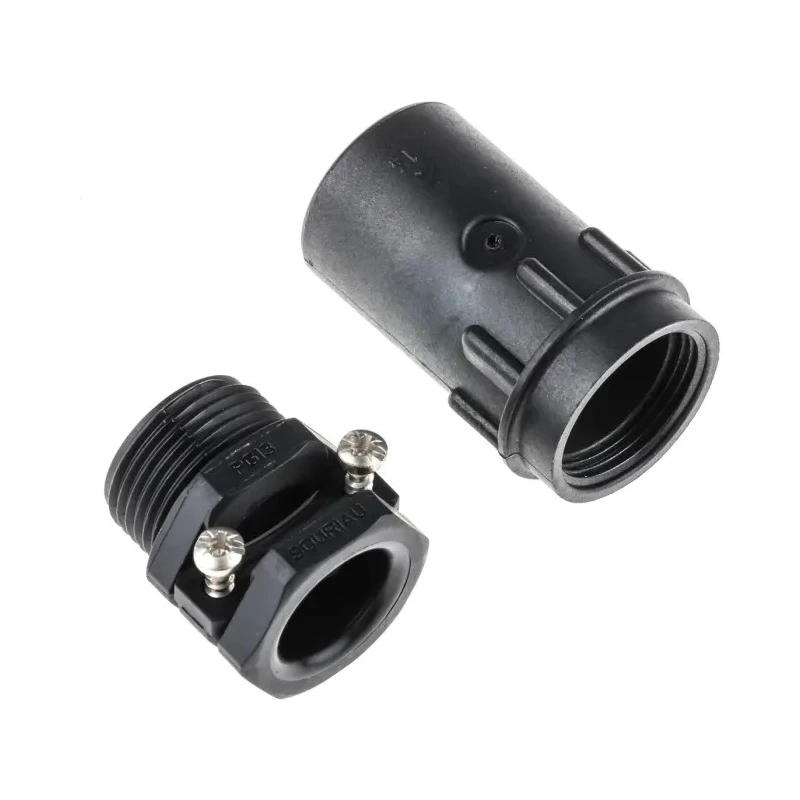

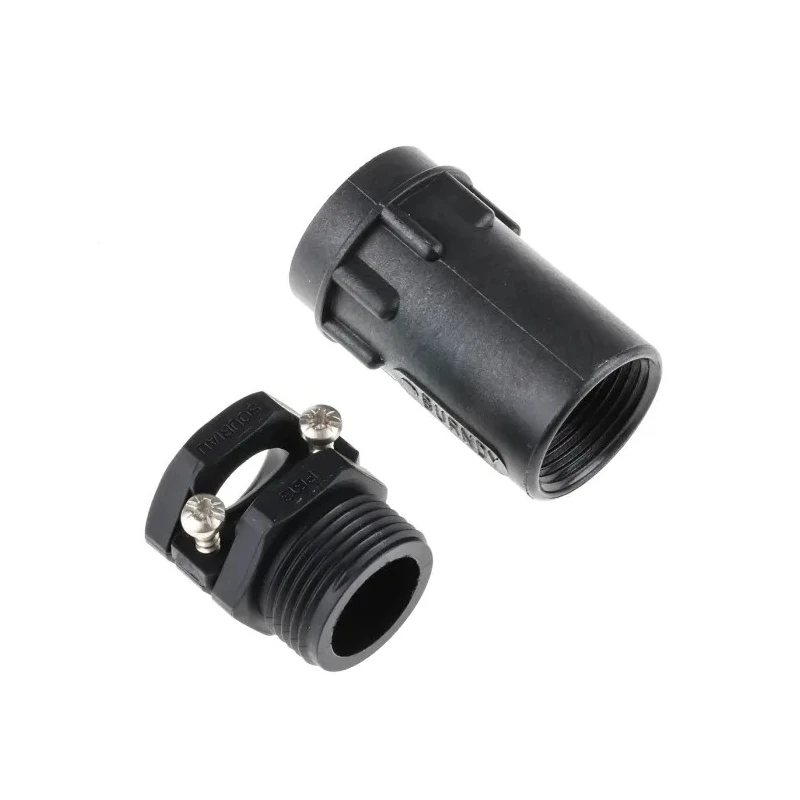

Souriau Sunbank by Eaton Circular Connector Backshell Shell Size 14, Straight Female, Plastic Housing, IP65 Rated UTG14PG

Souriau Sunbank by Eaton UTG14PG Circular Connector Backshell with shell size 14 is a high-quality accessory for cable assemblies requiring robust strain relief and environmental protection. This backshell offers a straight orientation and female gender connector interface designed for secure and reliable connections in demanding industrial and commercial settings.

The backshell housing is made of durable black plastic material that provides mechanical protection and water resistance, rated to IP65 standards. It includes a neoprene sealing gland that is pre-split in decreasing circular gradients to ensure an effective seal for cables ranging between 7mm and 18.50mm in diameter.

The length of the backshell is 62mm, which allows for proper cable clamping using the included strain relief nut. The PG13.5 thread size and metal bayonet coupling ring secure the connection while facilitating durability and ease of assembly. This unit is intermateable and interchangeable with MIL-C-26482 series 1 connectors, offering flexibility in usage.

Operating temperature ranges from -55°C to 125°C make this backshell suitable for military and commercial applications, including harsh environments. The IP65 ingress protection rating guarantees functionality in water-protected conditions, which is critical for industrial and rugged applications.

This backshell is manufactured in France, ensuring compliance with high-quality standards. It is ideal for use in power and circular connector assemblies where strain relief, protection, and environmental sealing are required.

Constructed with durable black plastic housing for reliable protection. Features a 62mm length for effective cable management. Provides strain relief with a neoprene sealing gland ensuring IP65 ingress protection. Compatible with MIL-C-26482 series 1 connectors offering intermateability.

Suitable for water-protected industrial and military environments. Thread size PG13.5 supports secure cable clamping. Operating temperature range from -55°C to 125°C for versatile use. Designed with a metal bayonet coupling ring for durability and security.

Perfect for commercial and military electronic power and connector applications.
