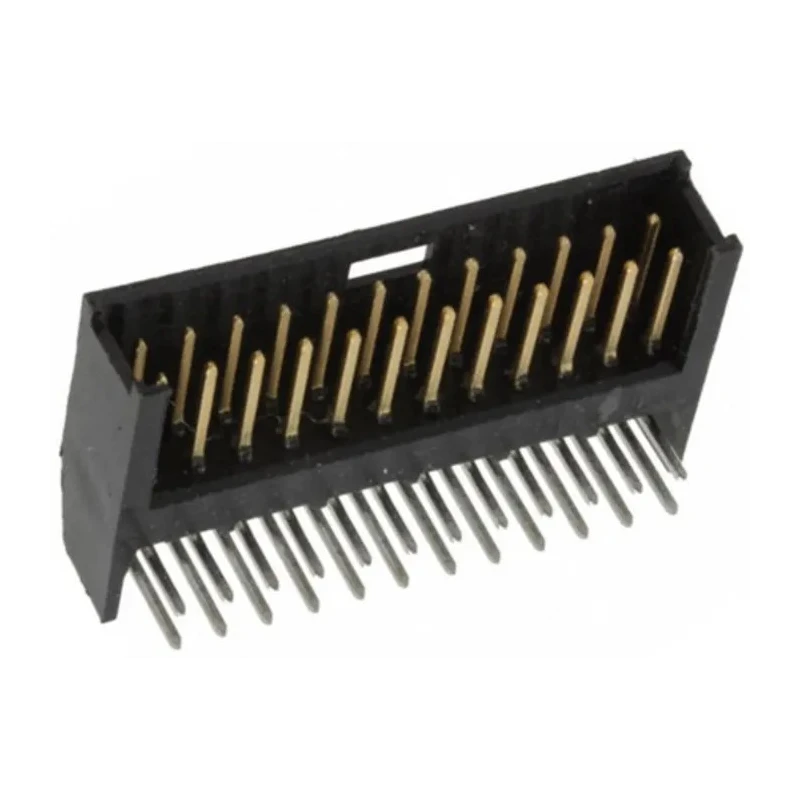

TE Connectivity AMPMODU Mod II Series Right Angle Through Hole 24 Contact PCB Header 2.54 mm Pitch 280522-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | 280522-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- 24 gold-plated brass contacts for high conductivity and corrosion resistance.
- Shrouded housing made of thermoplastic providing pin protection and polarization to prevent mismating.
- Right angle orientation for compact PCB layouts.
- Operates reliably from -65°C to 105°C temperature range.
- Supports up to 750V voltage and 3A current rating.
- Tail pin length of 3.5 mm suitable for solder termination.
- Detent positive locking mechanism ensures secure connector mating.
- Suitable for automotive, industrial, telecommunications, medical, and computer applications.
Product Description
TE Connectivity 280522-2 AMPMODU Mod II Series Right Angle Through Hole PCB Header is a high-quality connector designed for board-to-board and wire-to-board applications. This 24-contact male header features a 2.54 mm pitch and a shrouded thermoplastic housing that protects pins and provides polarization to prevent misconnection. Its right angle mounting orientation allows for space-efficient PCB designs.
The contacts are made of brass with gold plating, ensuring excellent electrical conductivity and resistance to corrosion. The tail pins, with a length of 3.5 mm, are designed for solder termination, facilitating reliable and robust solder joints. The header supports a voltage rating of 750V and current of up to 3A, suitable for a wide variety of industrial and electronic applications.
Operating temperatures range from a minimum of -65°C up to a maximum of 105°C, ensuring performance stability in harsh environments. The detent positive locking mechanism embedded in the housing assures secure mating with compatible receptacles, enhancing connection reliability.
This connector is widely applicable in automotive controls, industrial test equipment, computer systems, telecommunications infrastructure, medical instruments, storage solutions, and domestic appliances. The AMPMODU Interconnect system is recognized for its compact design and dependable performance in automation and control applications.
24 gold-plated brass male contacts ensure reliable electrical connections. Thermoplastic shrouded housing protects pins and prevents mismating. Right angle orientation accommodates compact PCB layouts. Supports 750V voltage and 3A current ratings for versatile use.
Operates across an extensive temperature range (-65°C to 105°C). Detent locking mechanism provides secure and stable connector engagement. Widely used in automotive, industrial, telecommunications, medical, and computer applications.
Explore EnvMart's extensive range of TE Connectivity connectors and other PCB interconnect solutions to find reliable components for your electronic and industrial projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 750V and a current rating of up to 3A.
The pitch size of this connector is 2.54 mm.
The contacts are made of brass with gold plating, while the housing is constructed from thermoplastic.
It operates reliably within a temperature range of -65°C to 105°C.
The tail pin length is 3.5 mm, designed for solder termination.
This unit uses through hole mounting.
Yes, it features a detent positive locking mechanism to ensure secure connector mating.
It is suitable for automotive, industrial, telecommunications, medical, and computer applications.
This connector has a right angle orientation, which allows for compact PCB layouts.
The 280522-2 model features 24 contacts.
The housing of this connector is shrouded, providing pin protection and polarization to prevent mismating.
It supports both board-to-board and wire-to-board connector systems.
