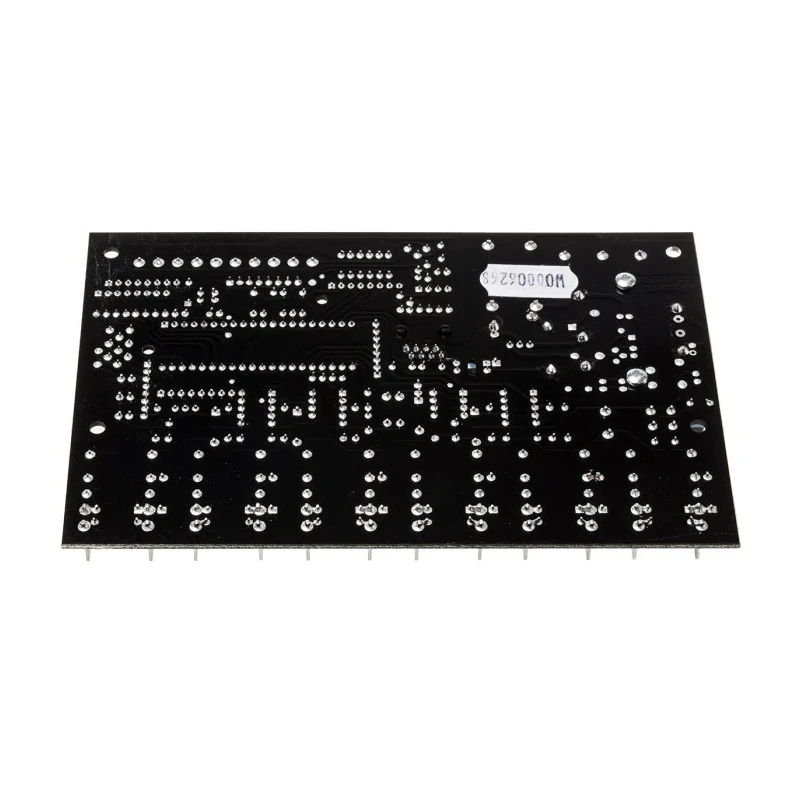

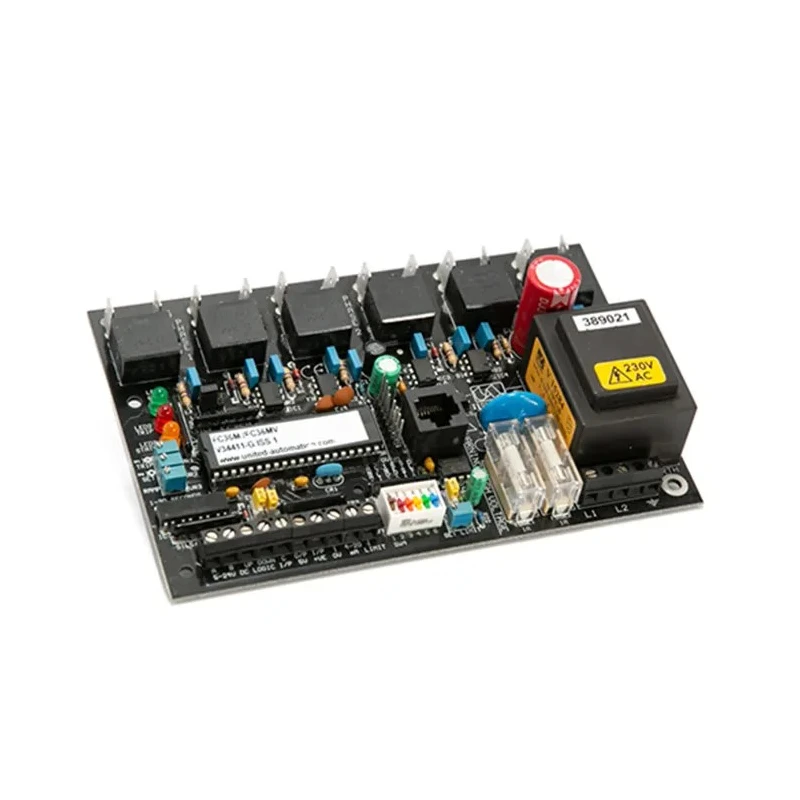

United Automation Three Phase Thyristor Driver 500 mA, PCB Mount, DIN Rail, Model FC36M
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | United Automation |
| Model | FC36M |
| Mount Type | DIN Rail |
| Series | FC36M |
| Maximum Operating Temperature | 65°C |
| Package Type | PCB |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | I.E.T. Regulations (BS7671) |
| Thyristor Type | SCR |
| Maximum Gate Trigger Current Igt | 500mA |
Key Features
- Operates within 0°C to 65°C temperature range for reliable industrial use.
- Supports phase angle and burst firing modes suitable for AC/DC resistive and inductive loads.
- Maximum gate trigger current of 500 mA enables efficient control of SCR thyristors.
- Analog control inputs include 0-5 Vdc and 4-20 mA current loop for flexible interfacing.
- Opto-coupled digital isolated control ensures electrical safety between input and output.
- Selectable current limit with LED indication and over-current latching trip rated at 150%.
- Suitable for three-phase stacks without need for external phasing transformers.
- Output status indication enhances monitoring and diagnostics.
Product Description
United Automation FC36M is a three-phase thyristor driver designed for precise phase angle and burst firing control. This 415 VA microprocessor-based PCB mount controller supports both resistive and inductive AC/DC loads, providing advanced firing control without the need for external phasing transformers. The device is designed for DIN Rail mounting, ensuring easy installation in industrial automation environments.
Operating within a temperature range of 0°C to 65°C, the FC36M is well-suited for various demanding applications in industrial, manufacturing, and electronic control systems. Its maximum gate trigger current of 500 mA supports Silicon Controlled Rectifier (SCR) thyristors, with selectable load types including resistive and inductive options.
Control interfaces include analogue inputs ranging from 0-5 Vdc and 4-20 mA current loops, combined with opto-isolated digital inputs from +5 to +25 Vdc. The device features a selectable current limit with LED indication, and an over-current latching trip mechanism rated at 150%, enhancing both protection and diagnostic capabilities. Output status indication further facilitates system monitoring.
The trigger pulses coincide with the zero-crossing points of the mains supply, minimizing radio frequency interference when used with resistive loads. This model complies with I.E.T. Regulations (BS7671) and is manufactured in the United Kingdom, ensuring quality and regulatory adherence.
Operates with phase angle and burst firing modes for flexible thyristor control. Supports AC/DC resistive and inductive loads without external phasing transformers. Maximum gate trigger current of 500 mA suitable for SCR Thyristors.
Analogue and digital isolated control inputs provide versatile interfacing. Selectable current limit and over-current protection enhance safety and reliability. Output status indication aids in system monitoring. DIN Rail mounting allows for efficient industrial installation.
Manufactured in the United Kingdom with compliance to I.E.T. Regulations (BS7671).
This three-phase thyristor driver is ideal for industrial automation, power electronics, and manufacturing process control where precise and reliable thyristor firing is essential. Explore more semiconductor and power control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum gate trigger current for the FC36M is 500 mA, which enables efficient control of SCR thyristors.
This model operates within a temperature range of 0°C to 65°C, making it suitable for reliable industrial use.
It supports both AC/DC resistive and inductive loads, providing flexibility for various applications.
This unit is designed for DIN Rail mounting, ensuring easy installation in industrial environments.
It features analog control inputs including 0-5 Vdc and 4-20 mA current loops, along with opto-isolated digital inputs from +5 to +25 Vdc.
Yes, it includes a selectable current limit with LED indication and an over-current latching trip rated at 150% for enhanced safety.
This model complies with I.E.T. Regulations (BS7671), ensuring adherence to relevant safety and quality standards.
The output status indication enhances monitoring and diagnostics, facilitating system oversight.
Yes, it is designed to operate without the need for external phasing transformers, simplifying installation.
The package type of this model is PCB, which is suitable for mounting on printed circuit boards.
It is manufactured in the United Kingdom, ensuring quality and regulatory adherence.
The FC36M supports phase angle and burst firing modes, allowing for flexible thyristor control.
