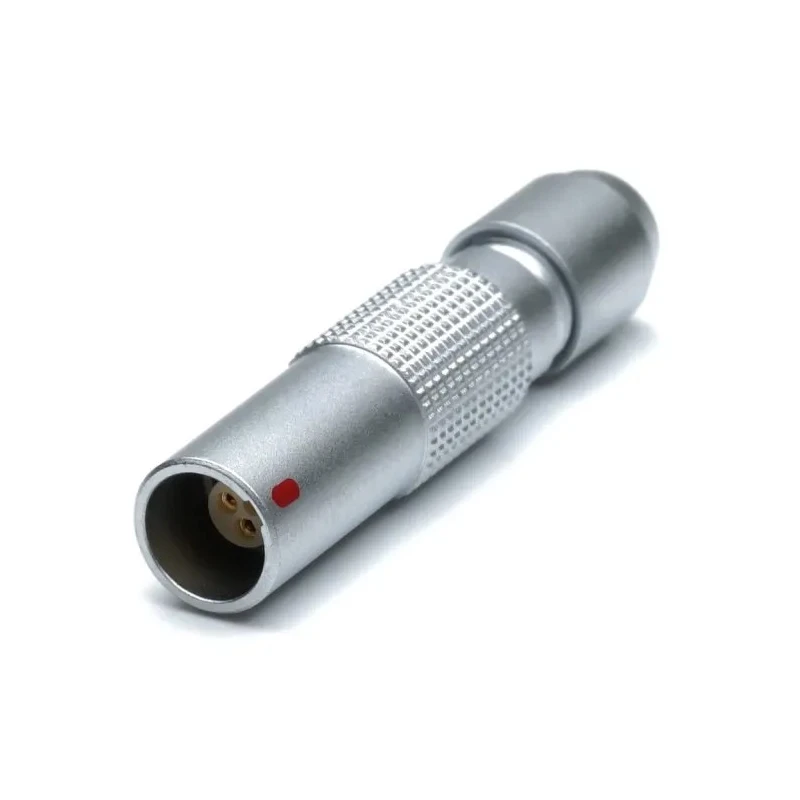

RS PRO Circular Connector, 3 Contacts, Cable Mount, Socket Female, Chrome Plated Brass, Gold Plated Contacts, IP50 209-5697
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 3A |
| Model | 209-5697 |
| IP Rating | IP50 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 250°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 3 |
| Contact Plating | Gold Plated |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 3.5 mm |
| Mating Type | Push Pull |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- The connector features a push-pull locking interface with industry-standard compatibility preventing mis-mating.
- Constructed with chrome plated brass housing for corrosion and impact resistance.
- Gold-plated brass contacts provide excellent electrical conductivity and durability.
- IP50 rated with 360° EMC shielding ensures protection and optimal performance in demanding environments.
- Operates reliably in a temperature range from -55°C to 250°C suitable for medium-duty industrial use.
- Quick and easy installation with solder termination type and straight orientation enhances usability.
- Ideal for medical devices, testing, audio equipment, and sensor or automation applications requiring secure connections.
Product Description
RS PRO 209-5697 Circular Connector is a premium industrial circular connector designed for robust production and manufacturing environments. This 3-contact cable mount socket features a push-pull locking interface that ensures secure mating and prevents mis-mating with compatible cable mount plugs.
The connector housing is made from chrome plated brass, providing excellent corrosion and impact resistance, making it suitable for medium-duty applications. The contacts are gold plated brass, ensuring good conductivity and durability over time. Rated IP50, it offers protection against dust and features 360° EMC screening for optimal shielding against electromagnetic interference.
With an operating temperature range from -55°C to 250°C, this connector withstands extreme thermal conditions commonly found in industrial applications. The straight orientation and solder termination type simplify installation, allowing quick and reliable setup in complex systems.
This connector supports secure and reliable data, electrical signal, or power transmission in harsh or demanding indoor environments. It is ideal for use in medical devices, testing equipment, audio systems, and various sensory or automation applications demanding high performance and reliability.
Applications include instrumentation, process control, robotics, assembly lines, factory automation, and industrial production where durable and efficient connections are essential.
The push-pull interface provides quick and secure coupling to prevent misconnection. Chrome plated brass housing offers resistance to corrosion and mechanical impacts. Gold plated contacts deliver dependable electrical conductivity and longevity.
IP50 rating with EMC shielding ensures protection and interference-free signal transmission. Wide operating temperature range enhances versatility across different environments. Straight orientation and solder termination facilitate straightforward integration.
Widely used in medical, testing, audio, and automation industrial sectors. Choose RS PRO 209-5697 for a high-quality, reliable circular connector solution ensuring robust connectivity in your industrial and electronic systems.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 250°C.
This connector has an IP rating of IP50, providing protection against dust.
This model features 3 contacts.
The housing is made from chrome plated brass, while the contacts are gold plated brass.
It uses a solder termination type.
The orientation of this circular connector is straight.
The current rating for this connector is 3A.
It features a push-pull locking interface to ensure secure mating and prevent mis-mating.
This connector is suitable for applications in medical devices, testing equipment, audio systems, and automation.
The minimum operating temperature is -55°C.
The connector size is classified as standard.
This model is classified as a socket type connector.
