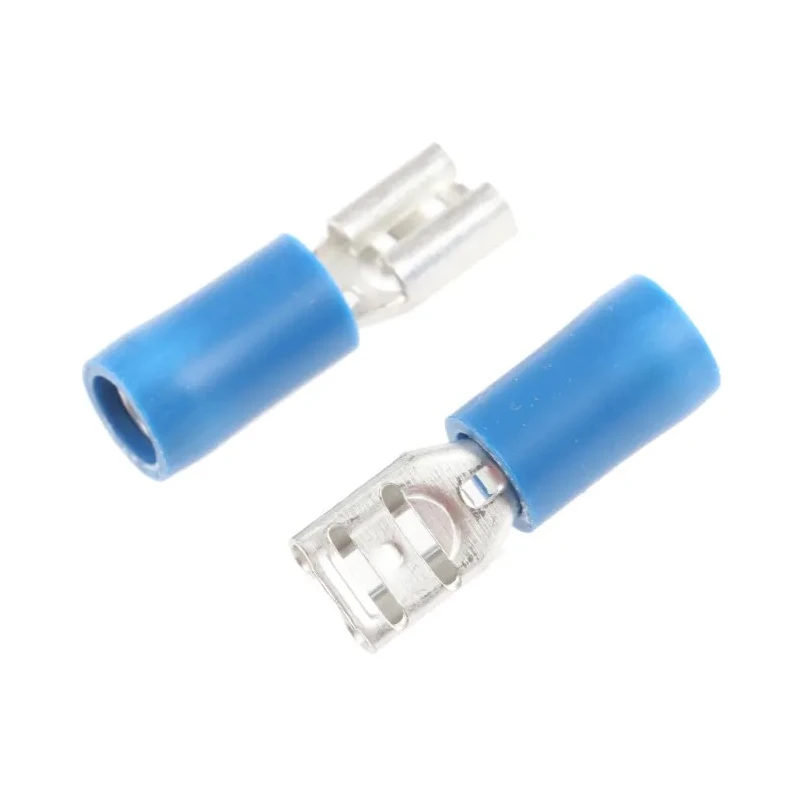

RS PRO Blue Insulated Female Spade Connector Crimp 4.8 x 0.8 mm Tab Size 16 AWG to 14 AWG 534-749
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| Orientation | Straight |
| Model | 534-749 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 4.8mm |
| Tab Thickness | 0.8mm |
| Tab Size | 4.8 x 0.8 mm |
| 4.8X0.8 PUSH ON BLUEBrand | NEUTRAL |
Key Features
- Provides a fast and secure connection with male tab connectors.
- Insulated blue vinyl covers protect against electric shock and contaminants.
- Double crimp design with internal copper sleeve adds strength and vibration resistance.
- Tin-plated brass contacts ensure excellent conductivity and corrosion resistance.
- Suitable for industrial, automotive, and consumer applications.
- Features a straight orientation and overall length of 19 mm.
- Colour coding makes wire size identification easy and efficient.
- Simple crimp installation with no soldering required.
Product Description
RS PRO 534-749 Blue Insulated Female Spade Connector is a high-quality insulated crimp receptacle designed for use with 16 AWG to 14 AWG wires. This female connector offers a robust and reliable electrical connection by mating with a corresponding male tab connector, facilitating quick assembly and disassembly without compromising performance.
The connector features tin-plated brass contacts with an additional internal copper sleeve within the crimp barrel, enhancing mechanical strength and providing resistance against vibration-induced stress. The blue vinyl insulation safeguards against electric shock and environmental contaminants such as dirt, grease, and liquids. Its funnelled design promotes easy wire insertion and secure insulation.
This Spade Connector operates with a straight orientation and measures 19 mm in overall length, matching standard tab widths of 4.8 mm and thickness of 0.8 mm. Its colour-coded insulation enables immediate identification of suitable wire gauge ranges, from 16 AWG (1.5 mm²) up to 14 AWG (2.5 mm²).
Applications for this connector span multiple industries including industrial control systems, automotive wiring, communication equipment, power supplies, HVAC units, and various domestic appliances such as dishwashers and washing machines.
Quick and easy wire connection and disconnection without soldering. Double crimp with internal copper sleeve enhances mechanical strength. Blue vinyl insulation provides electrical safety and environment protection. Tin-plated brass contact for corrosion resistance and excellent conductivity.
Colour coded for easy wire size identification. Straight orientation fits standard 4.8 x 0.8 mm tabs. Robust design suitable for industrial, automotive, and household applications.
RS PRO offers a trusted series of connectors suitable for demanding and diverse electrical applications. Explore our range for more high-quality terminal solutions tailored for your wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is suitable for wire sizes ranging from 16 AWG (1.5 mm²) to 14 AWG (2.5 mm²).
The overall length of this connector is 19 mm.
It features tin-plated brass contacts and is insulated with blue vinyl material.
This connector is designed to fit standard tabs with a width of 4.8 mm and a thickness of 0.8 mm.
The connection is made using a crimp termination method, which allows for quick and easy installation without soldering.
The connector has a straight orientation, which is standard for spade connectors.
It is suitable for various applications including industrial control systems, automotive wiring, communication equipment, power supplies, HVAC units, and domestic appliances.
Yes, the blue vinyl insulation protects against electric shock and environmental contaminants such as dirt, grease, and liquids.
The double crimp design with an internal copper sleeve enhances the mechanical strength and provides resistance against vibration-induced stress.
Yes, the blue insulation provides colour coding for easy identification of the suitable wire gauge range.
The RS PRO 534-749 connector is manufactured in Taiwan.
The contacts of this connector are tin-plated to ensure excellent conductivity and corrosion resistance.
