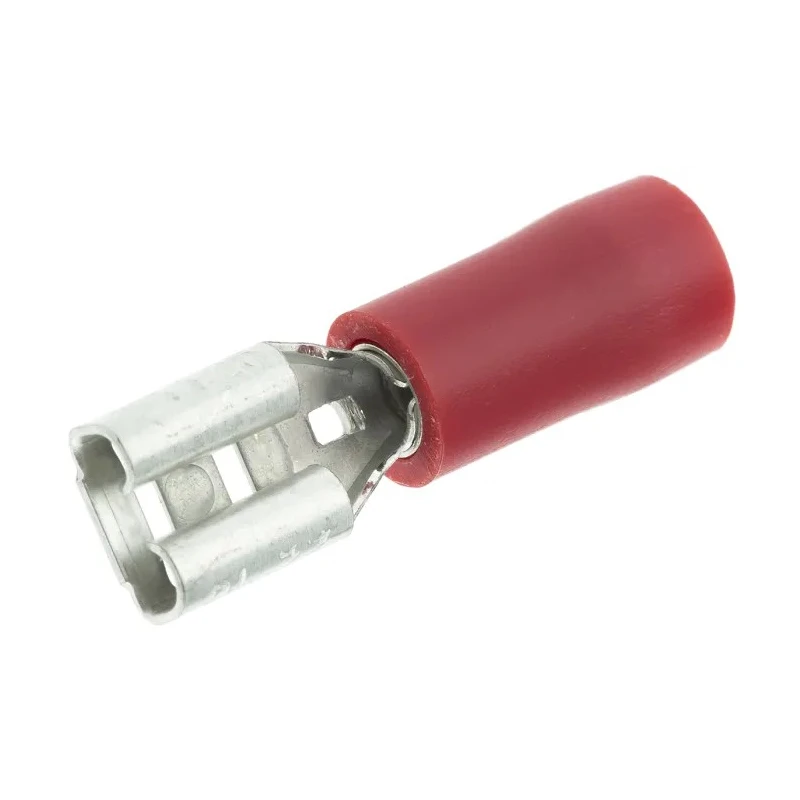

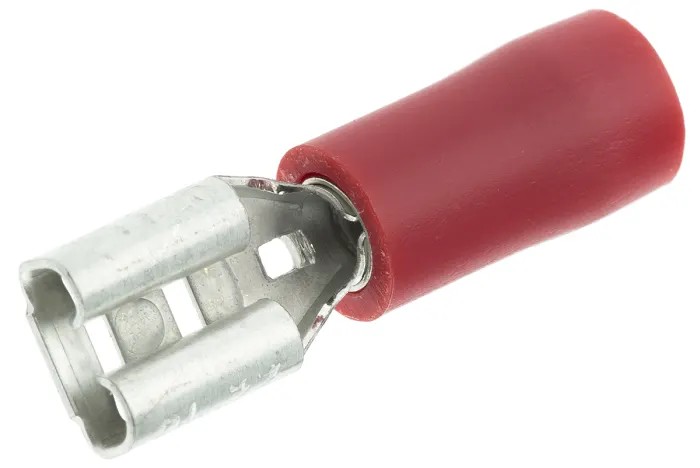

RS PRO Red Insulated Female Spade Connector, Crimp, 4.8 x 0.5 mm Tab Size, 22 AWG to 16 AWG 534-389
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Straight |
| Model | 534-389 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 20.2mm |
| Contact Material | Brass |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 4.8mm |
| Tab Thickness | 0.5mm |
| Tab Size | 4.8 x 0.5 mm |
| RND RND 465 Red Insulated Female Spade Connector, 4.8 x 0.5 mm Tab SizeBrand | RND |
| CRIMP CONN RECPT 0.187Brand | NEUTRAL |
| Insulated Crimp Blade Terminal, RedBrand | HELLA |
Key Features
- Insulated design offers protection against electrical shock and prevents shorting.
- Double crimp with internal copper sleeve ensures robust mechanical strength and vibration resistance.
- Tin-plated brass contact enhances corrosion resistance and conductivity.
- Colour-coded red vinyl insulation facilitates quick wire size identification.
- Overall length of 20.2 mm supports versatile industrial and automotive applications.
- Straight orientation allows easy connection with matching male tabs of size 4.8 x 0.5 mm.
- Suitable for use in HVAC, power supplies, communication, and domestic appliances.
- No soldering required; secure crimp termination with proper tooling.
Product Description
RS PRO 534-389 Red Insulated Female Spade Connector is a high-quality crimp terminal designed for quick and secure electrical connections with wire sizes ranging from 22 AWG to 16 AWG. It features a tin-plated brass female contact with an internal copper sleeve, enhancing mechanical strength and reliable connectivity under stress and vibration.
The insulated red vinyl sleeve provides protection from electric shock and environmental contaminants like dirt and grease. This colour coding matches common wire gauge standards, simplifying identification during assembly and maintenance.
The terminal has a straight orientation with a tab size of 4.8 x 0.5 mm, making it compatible with widely used male blade connectors and suitable for industrial, automotive, HVAC, and consumer appliance wiring needs.
The double crimp design, including a copper sleeve inside the barrel, offers enhanced mechanical stability without the need for soldering, ensuring durable performance in industrial control systems and communication equipment.
Insulated for electrical safety and protection from short circuits. Robust double crimp barrel structure with internal copper sleeve. Tin plating for superior corrosion resistance and conductivity. Red vinyl insulation for quick wire gauge recognition.
Compact 20.2 mm length suitable for dense wiring arrangements. Crimp termination enables maintenance ease without soldering. Applicable in a wide range of industrial and household electrical devices. Manufactured in Taiwan, ensuring quality control and reliability.
This RS PRO insulated female Spade Connector is an essential component for professional electricians and technicians requiring secure, fast wire terminations. Explore the extensive range of RS PRO connectors and related electrical components on EnvMart for quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 22 AWG to 16 AWG, with a minimum wire size of 0.5 mm² and a maximum wire size of 1.5 mm².
The tab size is 4.8 x 0.5 mm, allowing compatibility with corresponding male blade connectors.
The connector features a brass contact with tin plating for enhanced corrosion resistance and conductivity, and it is insulated with red vinyl.
The overall length of this connector is 20.2 mm, making it suitable for various wiring arrangements.
It utilizes a crimp termination method, which allows for secure connections without the need for soldering.
This model is suitable for use in HVAC systems, power supplies, communication equipment, and domestic appliances.
The connector has a straight orientation, facilitating easy connections with matching male tabs.
It features an insulated design that provides protection against electrical shock and environmental contaminants.
The red vinyl insulation color coding helps in quick identification of wire sizes during assembly and maintenance.
It is manufactured in Taiwan, ensuring quality control and reliability.
The contact material is brass, which is tin-plated to enhance conductivity and resistance to corrosion.
Yes, proper crimping tools are required to achieve secure terminations with this connector.
