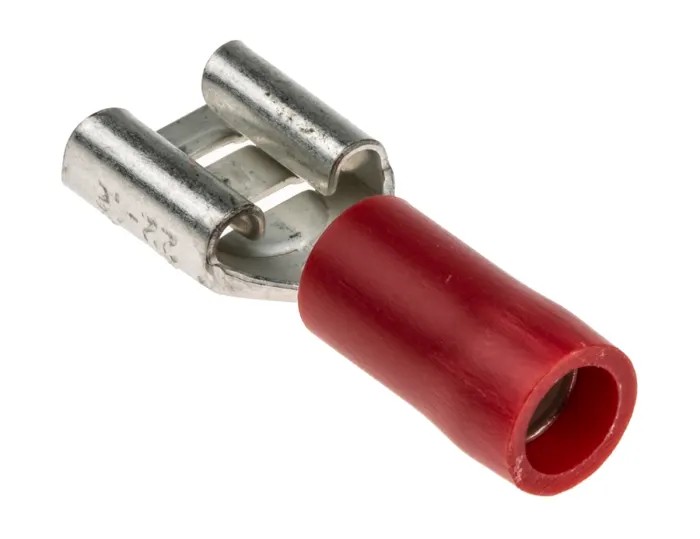

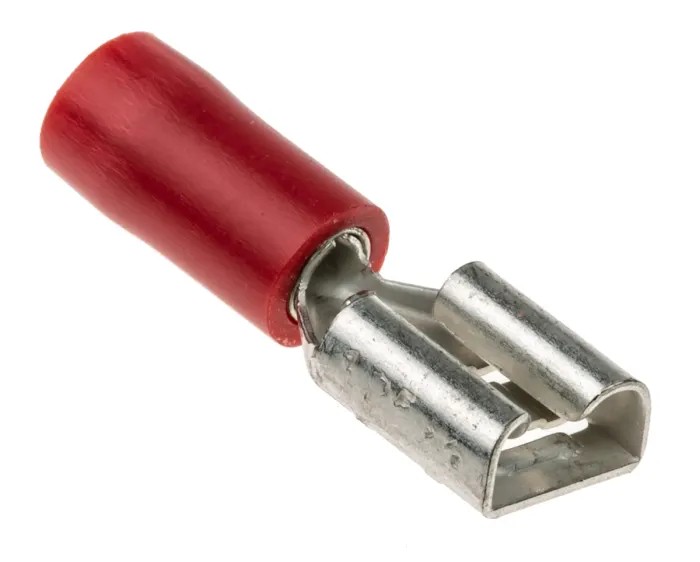

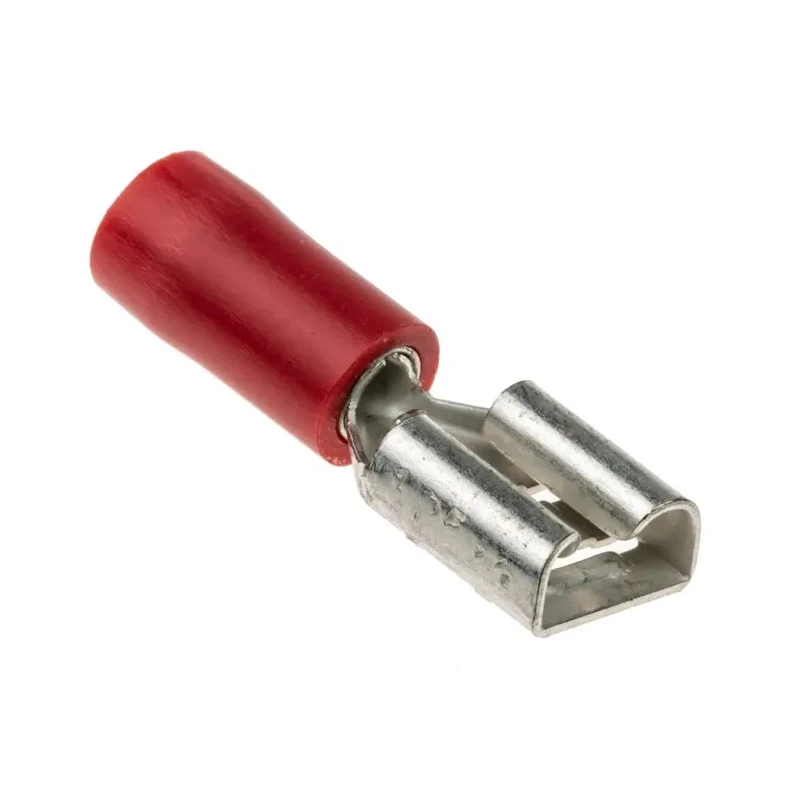

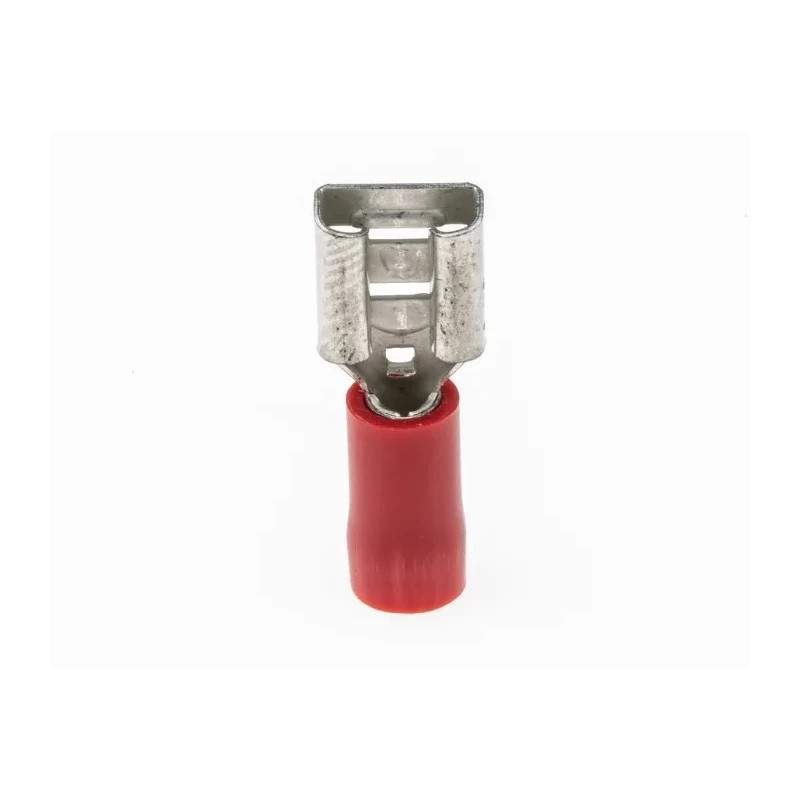

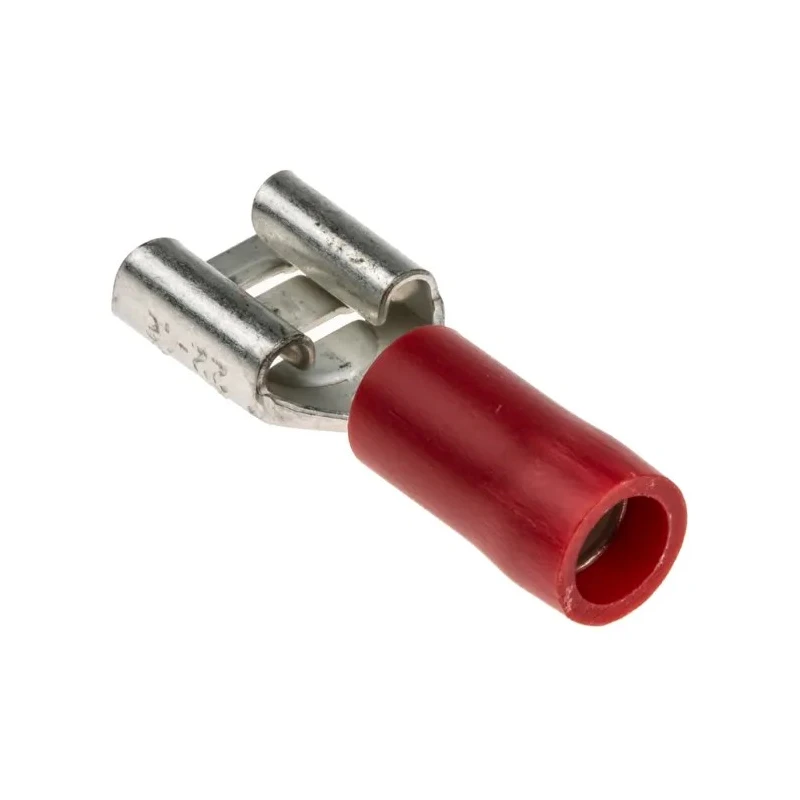

RS PRO Red Insulated Female Spade Connector Crimp 6.3 x 0.8 mm Tab Size 22 AWG to 16 AWG 534-339
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Straight |
| Model | 534-339 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 20.5mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 6.3mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.3 x 0.8 mm |
| RS PRO Push Wire Terminal, 0.5 → 1.5 mm², RedBrand | RS PRO |
| CRIMP CONNS-RECPTCLE 0.25Brand | NEUTRAL |
Key Features
- Crimp termination type for secure wire connection.
- Female gender connector suitable for quick disconnects.
- Insulated with red vinyl for electrical shock protection.
- Constructed from brass with tin plating for corrosion resistance.
- Overall length of 20.5 mm for compact fitment.
- Supports wire size range 0.5 mm² to 1.5 mm² (22 AWG to 16 AWG).
- Straight orientation for ease of installation in tight spaces.
- Double crimp design with internal copper sleeve adds crimp strength.
Product Description
RS PRO 534-339 Red Insulated Female Spade Connector is a high-quality crimp-type electrical wiring connector designed for reliable and quick wire to wire connections. It features a female crimp receptacle compatible with male tab connectors of size 6.3 x 0.8 mm, suitable for wire gauges 22 AWG to 16 AWG. This insulated connector uses red vinyl insulation to provide protection against electric shock and contamination from dirt, grease, or liquids.
The connector body is made from tin-plated brass with an additional internal copper sleeve, enhancing mechanical strength and electrical conductivity. Its double crimp feature ensures a secure, vibration-resistant crimp joint, ideal for demanding industrial and automotive environments. With a compact overall length of 20.5 mm and straight orientation, it fits neatly into assemblies requiring minimal space.
This female Spade Connector is widely used across industrial control systems, automotive wiring, communication equipment, power supplies, HVAC systems, and household appliances such as dishwashers and washing machines. The red colour-coded insulation allows quick identification of the terminal size during installation and maintenance.
Crimp termination type for secure wire connection. Female gender connector suitable for quick disconnects. Insulated with red vinyl for electrical shock protection. Constructed from brass with tin plating for corrosion resistance.
Overall length of 20.5 mm for compact fitment. Supports wire size range 0.5 mm² to 1.5 mm² (22 AWG to 16 AWG). Straight orientation for ease of installation in tight spaces. Double crimp design with internal copper sleeve adds crimp strength.
Colour coded for easy terminal size identification. Designed for industrial, automotive, and domestic appliance applications.
For crimp tooling, RS PRO recommends stock number 534-812 as suitable tooling to ensure proper installation. This product is made in Taiwan, Province Of China and belongs to the RS PRO series. Explore more RS PRO connectors and spade terminals in the Electronics & Electricals category on EnvMart for a comprehensive solution to your wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wire size range of 0.5 mm² to 1.5 mm², which corresponds to 22 AWG to 16 AWG.
The overall length of this connector is 20.5 mm, allowing for compact fitment in tight spaces.
It uses a crimp termination type for secure wire connections, ensuring a reliable joint.
The tab size for this connector is 6.3 x 0.8 mm, making it compatible with male tab connectors of the same size.
The connector body is made from brass with tin plating, while the insulation is made from red vinyl.
The double crimp design, along with the internal copper sleeve, enhances crimp strength and provides a secure, vibration-resistant connection.
This connector has a straight orientation, which facilitates installation in tight spaces.
This connector is widely used in industrial control systems, automotive wiring, communication equipment, power supplies, HVAC systems, and household appliances.
The insulation material used is vinyl, which provides protection against electric shock and contamination.
This connector is manufactured in Taiwan, Province of China.
This model is a female spade connector, suitable for quick disconnects.
For proper installation, RS PRO recommends using stock number 534-812 as suitable crimp tooling.
