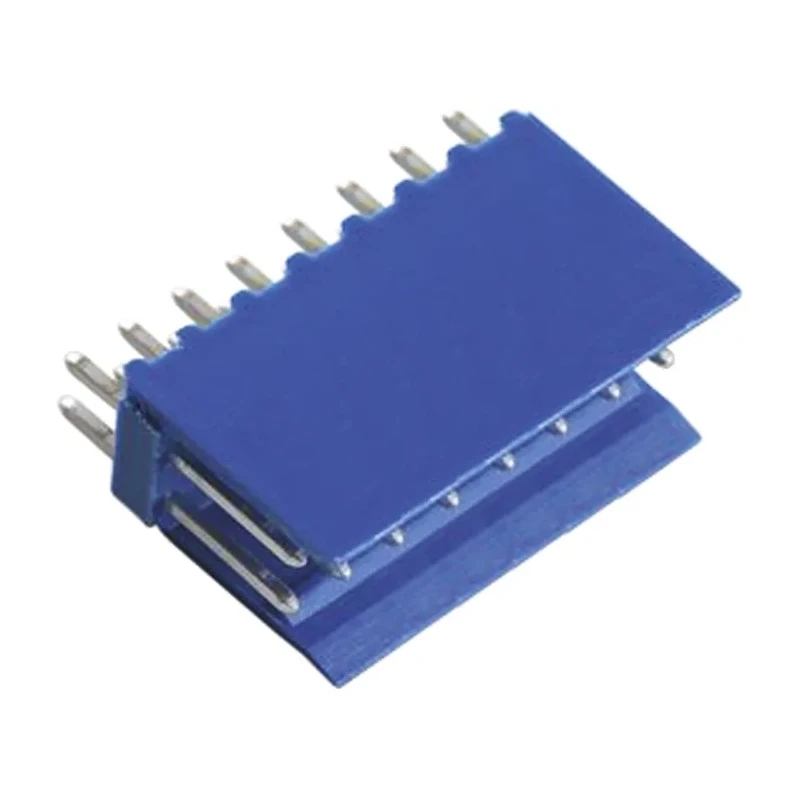

TE Connectivity AMPMODU HE14 Series Straight Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Features high temperature thermoplastic housing with UL 94V-0 rating for durability.
- Shrouded design provides pin protection and polarization prevents mismating.
- Integrated friction lock ensures secure mating connection.
- Constructed with phosphor bronze contacts plated with tin for reliable conductivity.
- Operates safely within -40°C to 105°C temperature range and supports 500V voltage and 3A current.
- Tail pin length of 2.9 mm facilitates effective solder through-hole mounting.
- Suitable for industrial, automotive, telecommunications, medical instruments, and test equipment applications.
Product Description
TE Connectivity HE14 Series Straight Through Hole PCB Header model HE14 is a robust connector with 16 male contacts arranged in 2 rows and a 2.54 mm pitch. The header features high quality thermoplastic housing rated UL 94V-0 for high temperature resistance and durability, making it ideal for demanding industrial environments.
The shrouded design not only protects the pins from damage but also provides polarized mating to eliminate incorrect connections. An integrated friction lock mechanism secures the connection firmly during use.
The contacts are made from phosphor bronze with a tin plating which enhances conductivity and corrosion resistance. It supports up to 500 volts and 3 amps of current, allowing it to handle moderate power applications safely. Operating temperature range spans from -40°C to 105°C, suitable for diverse environmental conditions.
This PCB header utilizes a standard wire-to-board connector system and is mounted via through-hole soldering, facilitated by tail pins measuring 2.9 mm in length. Such features ensure mechanical stability and reliable electrical conductivity in circuit board assemblies.
Applications for this AMPMODU HE14 header include automotive controls, industrial automation, test instrumentation, computers, telecommunications, storage devices, and medical equipment. Its design prioritizes reliability and ease of use across various systems.
High temperature thermoplastic housing. Shrouded pins for protection and polarization. Integrated friction lock for secure mating. Phosphor bronze contacts plated with tin. Supports operation from -40°C to 105°C. 3 Amp current and 500 Volt voltage rating.
Straight orientation, 2 rows of pins at 2.54 mm pitch. Explore EnvMart's Electronics Components categories for TE Connectivity's extensive range of PCB connectors and headers designed for quality and industrial performance.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 500 volts, making it suitable for moderate power applications.
It can handle a current of up to 3 amps, which is appropriate for various electrical applications.
This model features 16 male contacts arranged in 2 rows, with a pitch of 2.54 mm.
It utilizes through-hole mounting, which is facilitated by tail pins measuring 2.9 mm in length.
The housing is made of high-temperature thermoplastic, while the contacts are constructed from phosphor bronze and plated with tin for enhanced conductivity.
It features a shrouded design that protects the pins and provides polarized mating to eliminate mismating.
This model employs a wire-to-board connector system, ensuring reliable electrical connections in circuit board assemblies.
The integrated friction lock mechanism ensures a secure mating connection, enhancing the reliability of the electrical connection during use.
It is suitable for applications in automotive, industrial automation, telecommunications, medical instruments, and test equipment.
The country of origin for this product is India.
