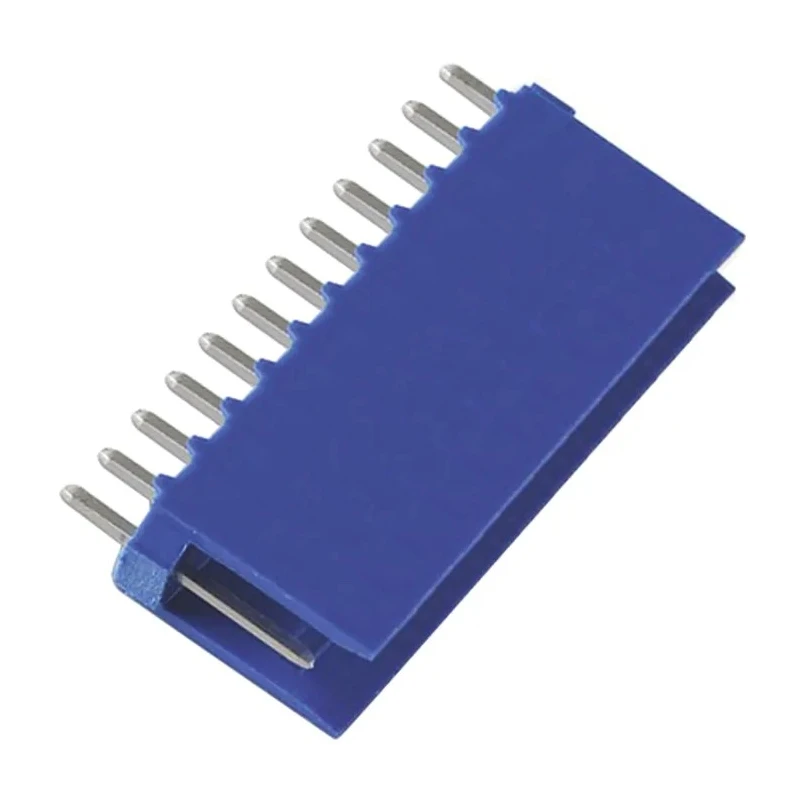

TE Connectivity AMPMODU HE14 Series Straight Through Hole Shrouded PCB Header 12 Contacts 2.54mm Pitch 1 Row HE14

TE Connectivity HE14 Series PCB Header is a high-quality, shrouded, straight through hole connector designed for wire-to-board applications. It features 12 male contacts arranged in a single row with a pitch of 2.54 mm, suitable for reliable PCB interfacing.

The connector housing is constructed from high temperature UL 94V-0 rated thermoplastic, offering excellent resistance to heat and mechanical stress. The shrouded design protects pins from damage and accidental contact, while polarization prevents incorrect mating. An integrated friction lock mechanism secures the connector firmly during use.

Contact pins are made of phosphor bronze and plated with tin, providing excellent electrical conductivity and corrosion resistance. The header supports a maximum current of 3A and a voltage rating of 500V, making it suitable for various industrial and commercial electronics.

This AMPMODU HE14 connector is capable of operating within a temperature range from -40°C to 105°C, meeting demanding environment conditions. Tail pins measure 2.79 mm in length to ensure strong solder joints during PCB assembly. The straight orientation makes it compatible with standard through hole PCB mount layouts.

Common applications include automotive control systems, industrial automation equipment, telecommunications devices, medical instruments, computer hardware, storage solutions, and household appliances. It pairs perfectly with AMPMODU HE14 IDC receptacles for terminating discrete wires and 2.54 mm pitch ribbon cables.

The housing uses UL 94V-0 rated thermoplastic material for high temperature resistance and durability. Shrouded pin design prevents damage and ensures proper mating alignment. Polarized connector housing avoids mismating with other connectors.

Integrated friction lock secures the connection firmly in place. Phosphor bronze contacts provide reliable electrical conductivity. Tin plating on contacts ensures corrosion resistance and good solderability. Suitable for through hole PCB mounting with solder termination.

Rated for 3A current and 500V voltage operation. Operating temperature range from -40°C to +105°C supports harsh environments. Compatible with AMPMODU HE14 IDC receptacles for wire and ribbon cable connections. Explore EnvMart's Electronics Components category to find similar reliable PCB Headers and connectors from leading brands including TE Connectivity.
