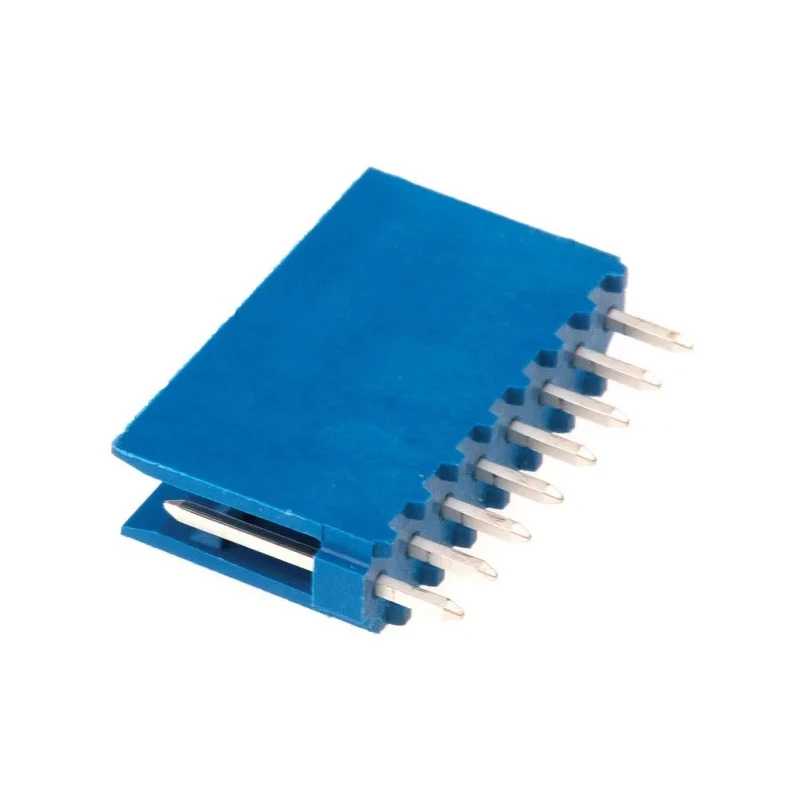

TE Connectivity AMPMODU HE14 Series Straight Through Hole PCB Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Shrouded HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Constructed with high temperature thermoplastic for durability and UL 94V-0 compliance.
- Shrouded housing provides pin protection and prevents mismating via polarization.
- Integrated friction lock secures mating connections reliably.
- Contacts are made of phosphor bronze with tin plating for corrosion resistance.
- Designed to handle currents up to 3A at voltages up to 500V.
- Tail pins measure 2.79 mm for secure solder termination.
- Operates safely within temperature range of -40°C to 105°C.
- Suitable for industrial, automotive, telecommunications, medical, and computing applications.
Product Description
TE Connectivity HE14 Series Straight Through Hole PCB Header, model HE14, is designed for reliable wire-to-board interconnection with 8 male contacts arranged in a single row at a 2.54 mm pitch. The connector features a shrouded thermoplastic housing rated UL 94V-0 for high temperature endurance, ensuring long-lasting performance in demanding environments.
The blue thermoplastic housing is polarized to prevent incorrect mating and includes shrouds that protect the pins mechanically, enhancing durability. An integrated friction lock secures the connection firmly during assembly and operation. Contacts are crafted from phosphor bronze and plated with tin, providing excellent electrical conductivity and corrosion resistance, suitable for currents up to 3 Amps and voltages up to 500 Volts.
This PCB header is engineered for through-hole mounting, facilitating solder termination with 2.79 mm tail pin length. It operates within a broad temperature range between -40°C and 105°C, making it adaptable for use in various sectors such as industrial automation, automotive control systems, telecommunications equipment, medical instruments, and computer hardware.
The AMPMODU HE14 interconnect system is widely utilized for automation and control applications, combining reliability and economical design. This particular header mates perfectly with AMPMODU HE14 IDC receptacles designed for discrete wires or 2.54 mm pitch ribbon cables, enabling flexible and secure wiring solutions.
High temperature UL 94V-0 rated thermoplastic housing. Polarized shrouded connector prevents mismating and protects pins. Integrated friction lock ensures stable connection. Phosphor bronze contacts with tin plating for durability and conductivity.
Through-hole mount for soldered PCB assembly. Supports 3 Amp current and 500 Volt operating voltage. Operating temperature range from -40°C to 105°C. Ideal for industrial, automotive, telecommunications, medical, and computing applications.
The TE Connectivity AMPMODU HE14 PCB Header is a suitable choice for engineers and manufacturers requiring a robust, secure, and versatile PCB connector solution. Explore more in the PCB Header category on EnvMart for comprehensive interconnection options.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle currents up to 3 Amps and voltages up to 500 Volts.
The contacts are arranged at a pitch of 2.54 mm.
The contacts are made of phosphor bronze with tin plating, while the housing is constructed from thermoplastic material rated UL 94V-0.
It operates safely within a temperature range of -40°C to 105°C.
This header features 8 male contacts arranged in a single row.
It supports through-hole mounting for solder termination.
Yes, it has a shrouded housing that is polarized to prevent mismating.
The tail pins measure 2.79 mm in length for secure solder termination.
It is suitable for industrial, automotive, telecommunications, medical, and computing applications.
It belongs to a wire-to-board connector system.
The orientation of this model is straight.
The country of origin for this PCB header is India.
