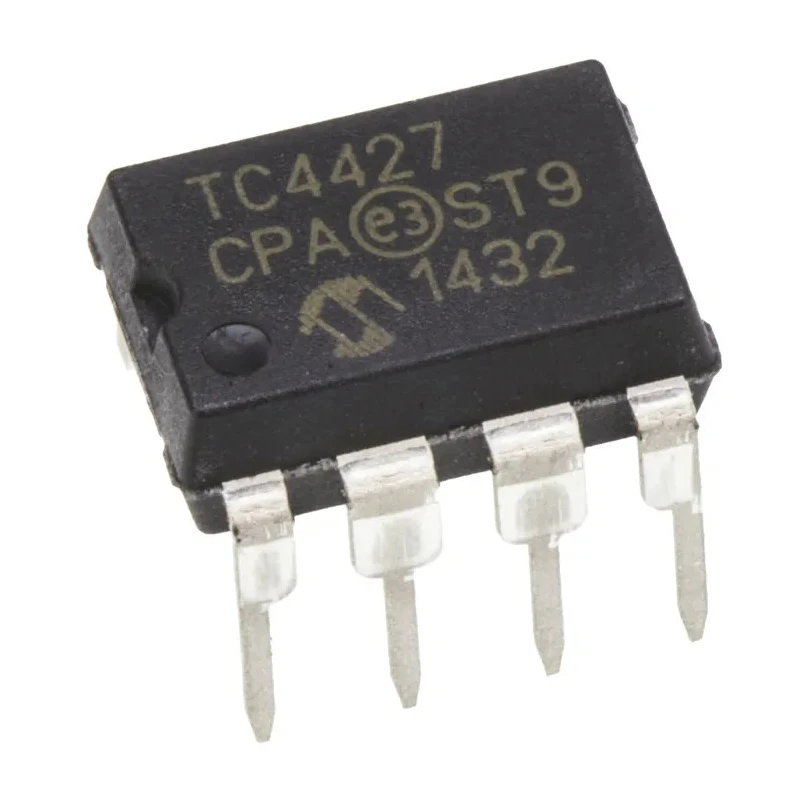

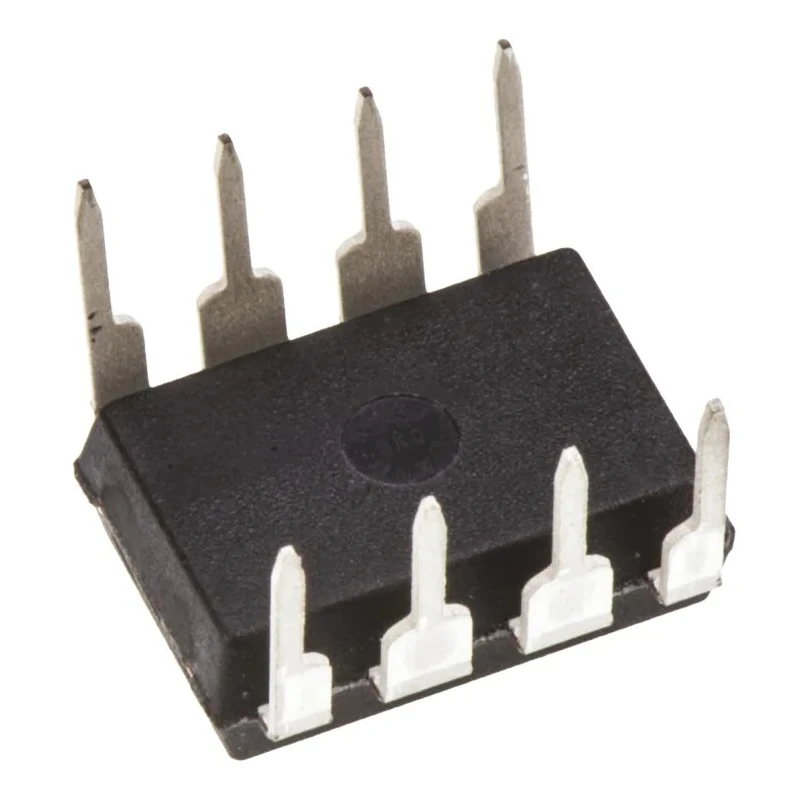

Microchip MOSFET Gate Driver Dual 1.5 A Output Current 8-Pin PDIP 18-22 V TC4427CPA

Free Delivery in India | Lowest Global Shipping Charges

Microchip MOSFET Gate Driver Dual 1.5 A Output Current 8-Pin PDIP 18-22 V TC4427CPA

Name: Microchip MOSFET Gate Driver Dual 1.5 A Output Current 8-Pin PDIP 18-22 V TC4427CPA
Brand: Microchip
SKU: 166024
Price: 2.09 USD
Availability: InStock



Category MOSFET Gate Driver Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.06mm
Length	10.16mm
Model	TC4427CPA
Width	6.6mm
Mount Type	Through Hole
Series	TC4427
Output Current	1.5A
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Number of outputs	2
Rise Time	19ns
Pin Count	8
Maximum Supply Voltage	22V
Minimum Supply Voltage	18V
Number of Drivers	2
Fall Time	19ns
Driver Type	MOSFET

Key Features

Provides a peak output current of 1.5 amperes for efficient MOSFET driving.
Packaged in 8-pin PDIP for through-hole mounting on PCBs.
Dual driver outputs supporting two MOSFETs simultaneously.
Operating voltage range from 18 V minimum to 22 V maximum for versatile applications.
Fast switching with rise and fall times of 19 ns each.
Designed for operation within 0°C to 70°C ambient temperature range.
Suitable for industrial and power management circuits requiring efficient gate driving.
Through-hole mount type ensuring robust PCB assembly and ease of replacement.

Product Description

Microchip TC4427CPA is a dual MOSFET gate driver designed to provide efficient power switching control with an output current rating of 1.5 amperes per channel. Housed in an 8-pin PDIP package, this device is ideal for through-hole mounting applications in power management and electronic control systems within industrial and commercial environments.

Operating from a supply voltage range of 18 to 22 volts, the TC4427CPA supports rapid switching performance characterized by rise and fall times of only 19 nanoseconds. This ensures minimal switching losses and improves overall system efficiency.

The driver features dual outputs which enable synchronized control of two MOSFET devices, enhancing flexibility for designers in motor control, power conversion, and load switching applications. The recommended operating ambient temperature range is from 0°C to 70°C, accommodating a wide range of commercial electronic use cases.

Compact in size, with dimensions of 10.16 mm length, 6.6 mm width, and 4.06 mm height, the package type PDIP allows for easy installation on printed circuit boards and straightforward servicing.

Provides a peak output current of 1.5 amperes for efficient MOSFET driving. Packaged in 8-pin PDIP for through-hole mounting on PCBs. Dual driver outputs supporting two MOSFETs simultaneously. Operating voltage range from 18 V minimum to 22 V maximum for versatile applications.

Fast switching with rise and fall times of 19 ns each. Designed for operation within 0°C to 70°C ambient temperature range. Compact dimensions: length 10.16 mm, width 6.6 mm, height 4.06 mm. Suitable for industrial and power management circuits requiring efficient gate driving.

Through-hole mount type ensuring robust PCB assembly and ease of replacement. Meets standard requirements without automotive grade certification.

This MOSFET Gate Driver is widely used in electronics manufacturing, power supply control, embedded systems, and automation industries requiring reliable high-speed switching and gate drive capabilities.
