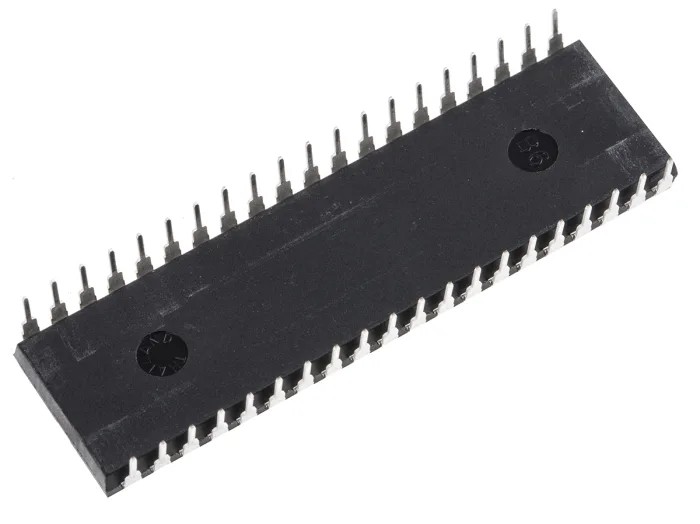

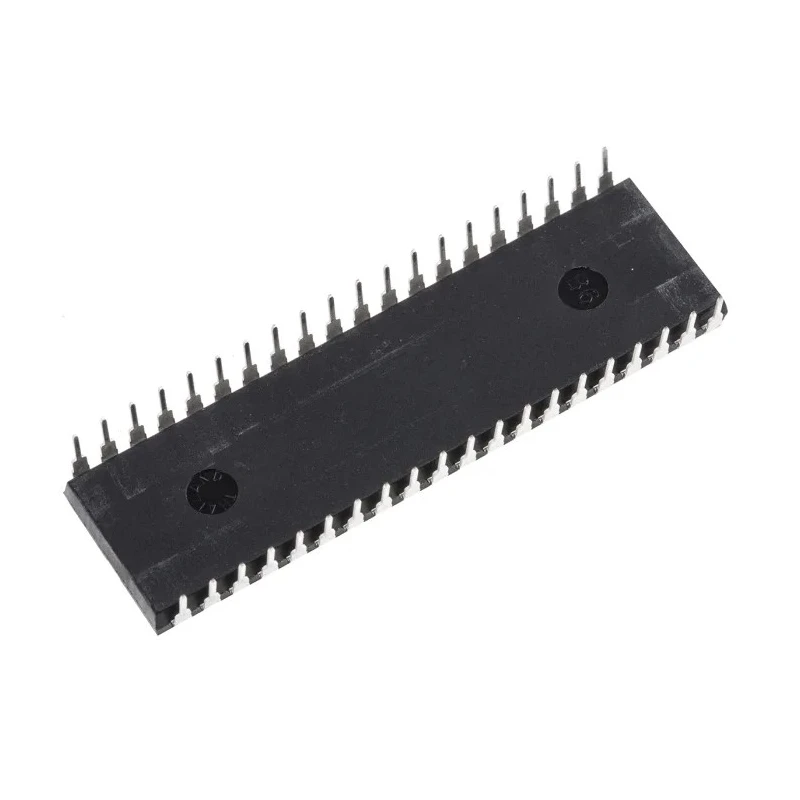

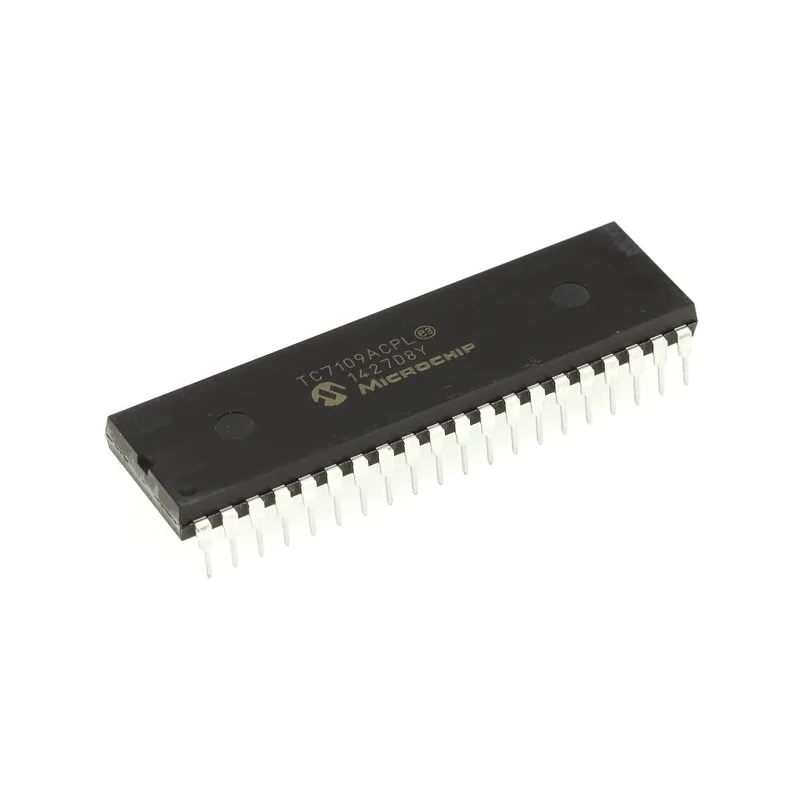

Microchip 12-bit + Sign Dual Slope Analogue to Digital Converter 0.01 ksps, 40-Pin PDIP TC7109ACPL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12-bit + Sign |
| Brand | Microchip |
| Height | 6.25mm |
| Length | 52.38mm |
| Model | TC7109ACPL |
| Mount Type | Through Hole |
| Sampling rate | 0.01ksps |
| Series | TC7109A |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Interface Type | Parallel |
| Architecture | Dual Slope |
| Pin Count | 40 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -5V |
| Number of ADCs | 1 |
Key Features
- Features Dual Slope architecture for precise analogue to digital conversion.
- Resolves signals with 12-bit plus sign resolution.
- Sampling rate of 0.01 kilo samples per second for slow but accurate measurements.
- Through Hole mounting suitable for PCB implementation.
- 40-pin PDIP package ensures easy insertion and reliable connection.
- Operates within temperature range of 0°C to 70°C for standard applications.
- Minimum operating voltage of -5 V and maximum supply voltage of 5 V.
- Designed with TC7109A series standards, ideal for electronic components and power connectors.
Product Description
Microchip TC7109ACPL is a precision 12-bit + Sign Analogue to Digital Converter (ADC) featuring Dual Slope architecture designed for accurate low-speed conversion applications. With a nominal sampling rate of 0.01 ksps, it is optimized for industrial, laboratory, and electronic measurement contexts where signal integrity over time is critical.
Housed in a through hole 40-pin PDIP package, the TC7109ACPL supports voltage input with a parallel interface, enabling easy integration into existing PCB designs. The device operates reliably between 0°C and 70°C, covering standard ambient environments for electronic components.
This ADC is part of the TC7109A series and offers a balanced design with minimum supply voltage of -5 V and maximum of 5 V, ensuring compatibility with common power sources. The package's physical dimensions of 52.38 mm length and 6.25 mm height should be accounted for during system integration.
Dual Slope architecture for stable and precise conversion. 12-bit plus sign resolution enhances signal processing accuracy. Low sampling rate suitable for sensitive measurement applications. Through hole mounting for robust assembly in PCBs.
Parallel interface type for straightforward digital communication. Wide operating temperature range from 0 to 70°C. Voltage input type supporting common signal levels. Standard 40-pin PDIP encapsulation for compatibility.
Designed for industrial, laboratory, construction, and electronic development applications. Facilitates efficient production insertion with tube packaging.
Set within Microchip's product portfolio, the TC7109ACPL ADC supports various electronic systems including data converters, power electronics, and instrumentation. It is tailored for applications requiring reliable conversion accuracy and stable operation under expected ambient conditions.
Browse the Electronics & Electricals categories on EnvMart for additional semiconductor and Analogue to Digital Converter products from leading brands like Microchip.
