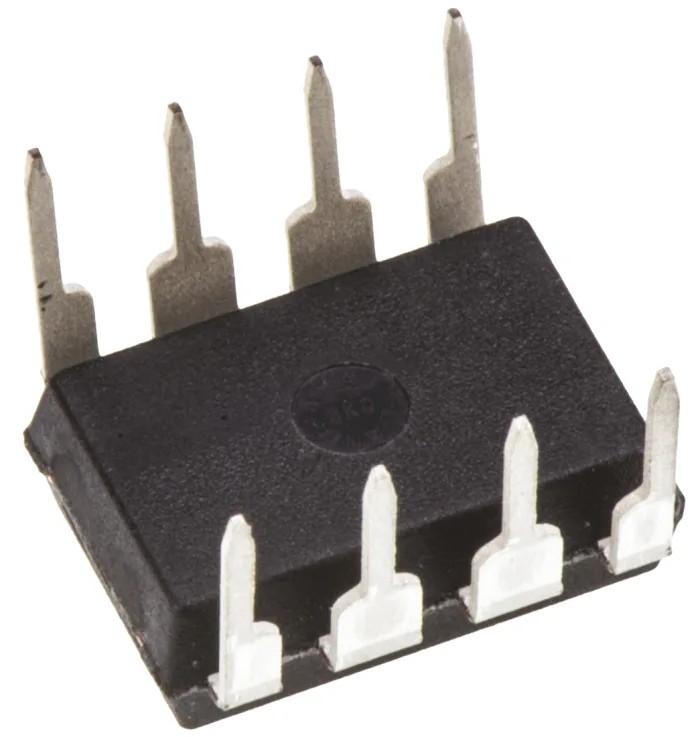

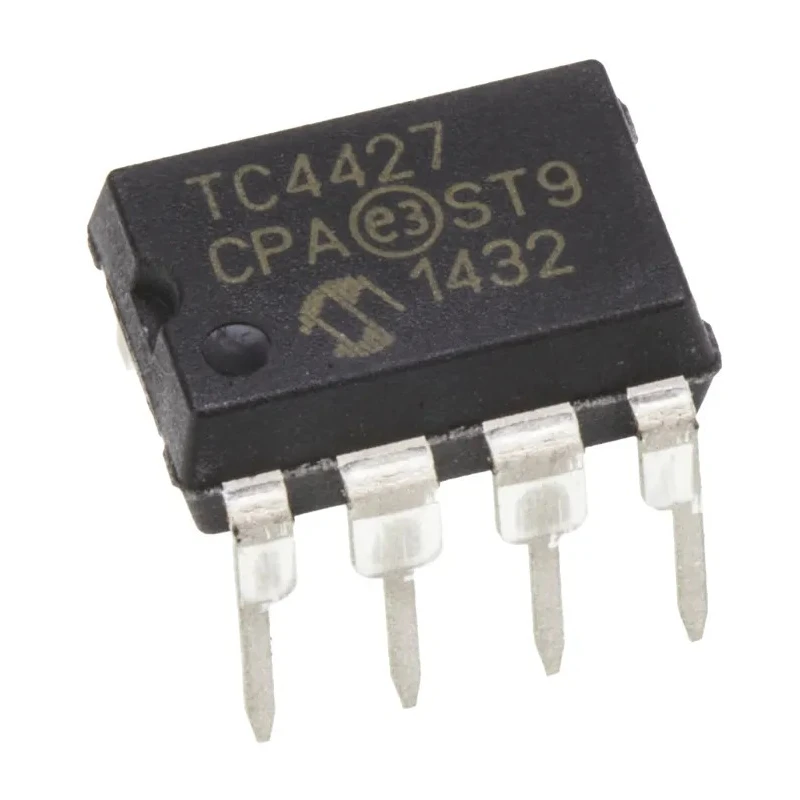

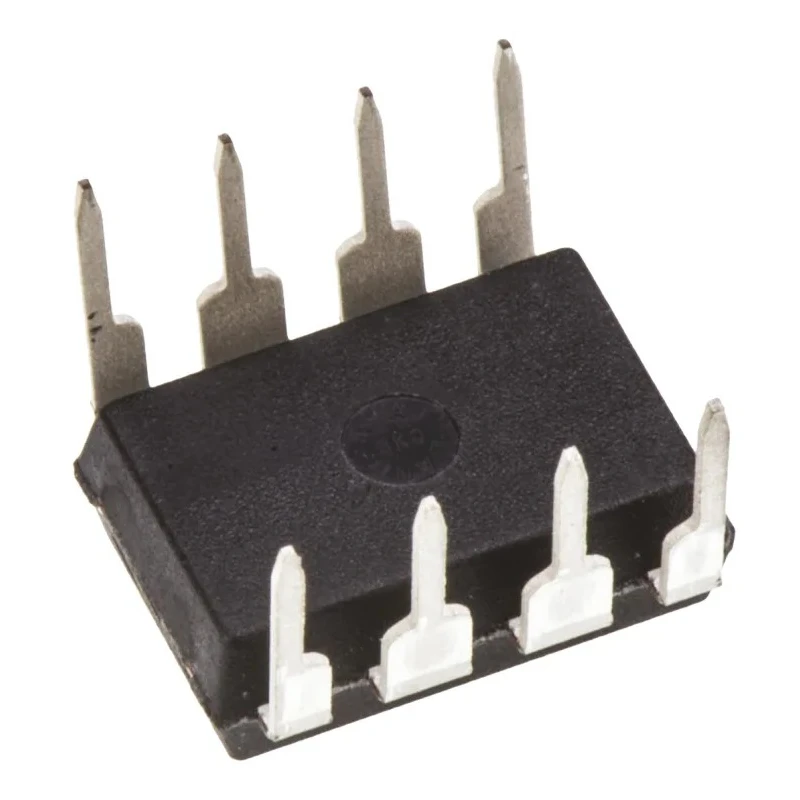

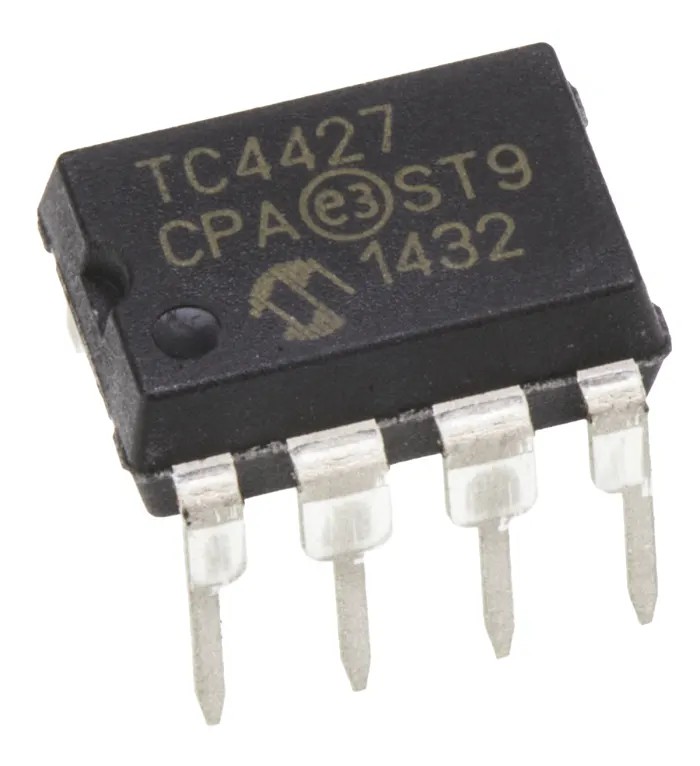

Microchip MOSFET Gate Driver Dual Output 1.5 A 8-Pin PDIP 18-22V TC4427CPA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 10.16mm |
| Model | TC4427CPA |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | TC4427 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 2 |
| Rise Time | 19ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 2 |
| Fall Time | 19ns |
| Driver Type | MOSFET |
| Microchip TC4427ACPA MOSFET Gate Driver 2, 1.5 A 8-Pin, PDIPBrand | Microchip |
Key Features
- Designed for driving MOSFETs with fast rise and fall times of 19 nanoseconds.
- Provides two outputs capable of delivering 1.5 amps each.
- Compact PDIP 8-pin package with dimensions 10.16mm length, 6.6mm width, and 4.06mm height.
- Operates within a temperature range of 0 to 70 degrees Celsius.
- Through-hole mount type suitable for PCB insertion in various electronic systems.
- Ideal for power management and switching applications in electronics and industrial use cases.
- Offers reliable MOSFET driver performance without automotive certification.
Product Description
Microchip TC4427CPA is a dual-output MOSFET gate driver designed to provide efficient switching control with 1.5 amp output current per channel. It is housed in an 8-pin PDIP through-hole package measuring 10.16mm in length, 6.6mm in width, and 4.06mm in height. The device operates at supply voltages between 18 and 22 volts and is capable of switching MOSFETs with rise and fall times of just 19 nanoseconds. This fast switching makes it suitable for power management circuits and industrial electronics requiring precise and rapid gate control.
The TC4427CPA operates reliably within a temperature range of 0 to 70 degrees Celsius and does not comply with automotive standards, making it suitable primarily for commercial and industrial equipment applications rather than automotive systems. The through-hole mounting facilitates easy integration and replacement on standard printed circuit boards.
Its dual driver outputs support switching of MOSFET and IGBT devices, enabling efficient power conversion, motor control, and load driving in industrial, manufacturing, HVAC, and laboratory instrumentation.
With no specific approvals or certifications beyond standard semiconductor quality, the TC4427CPA is a practical solution for engineers designing power electronics circuits requiring robust and reliable MOSFET gate drive control within the specified voltage and current ratings.
Designed for driving MOSFETs with fast rise and fall times of 19 nanoseconds. Provides two outputs capable of delivering 1.5 amps each. Compact PDIP 8-pin package with dimensions 10.16mm length, 6.6mm width, and 4.06mm height.
Operates within a temperature range of 0 to 70 degrees Celsius. Through-hole mount type suitable for PCB insertion in various electronic systems. Ideal for power management and switching applications in electronics and industrial use cases.
Offers reliable MOSFET driver performance without automotive certification. Explore more Microchip MOSFET Gate Drivers and power management components at EnvMart to find suitable solutions for your industrial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides two outputs, each capable of delivering 1.5 amps.
It operates at supply voltages between 18 and 22 volts.
It is housed in an 8-pin PDIP package with dimensions of 10.16mm in length, 6.6mm in width, and 4.06mm in height.
The TC4427CPA has rise and fall times of 19 nanoseconds.
It operates reliably within a temperature range of 0 to 70 degrees Celsius.
This unit features a through-hole mount type suitable for PCB insertion.
This model has two outputs.
It is ideal for power management and switching applications in electronics and industrial use cases.
It is designed for driving MOSFET and IGBT devices.
No, this model does not comply with automotive standards.
The TC4427CPA is manufactured in India.
It belongs to the TC4427 series of MOSFET gate drivers.
