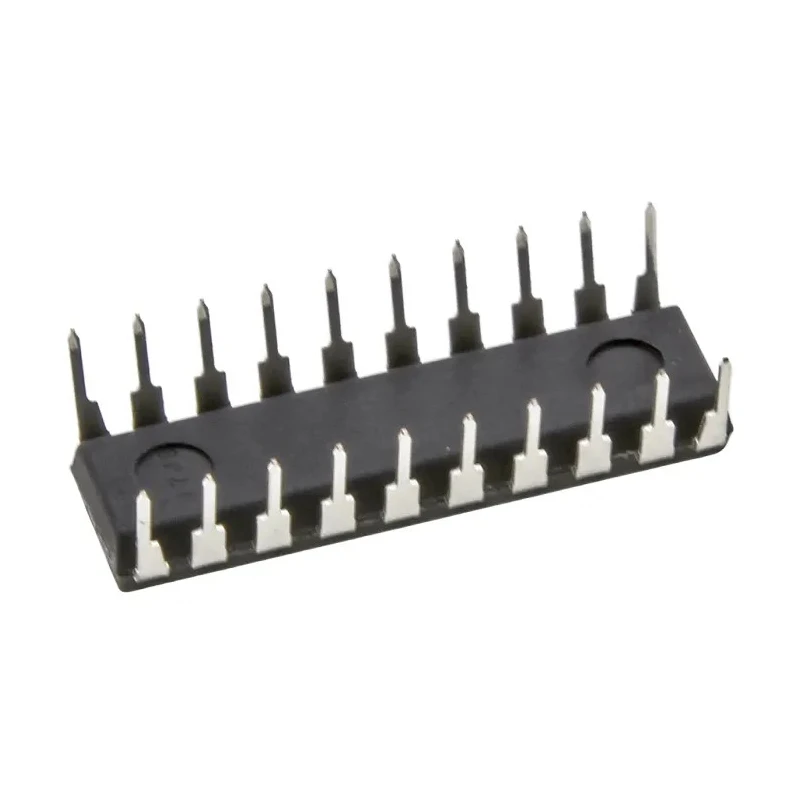

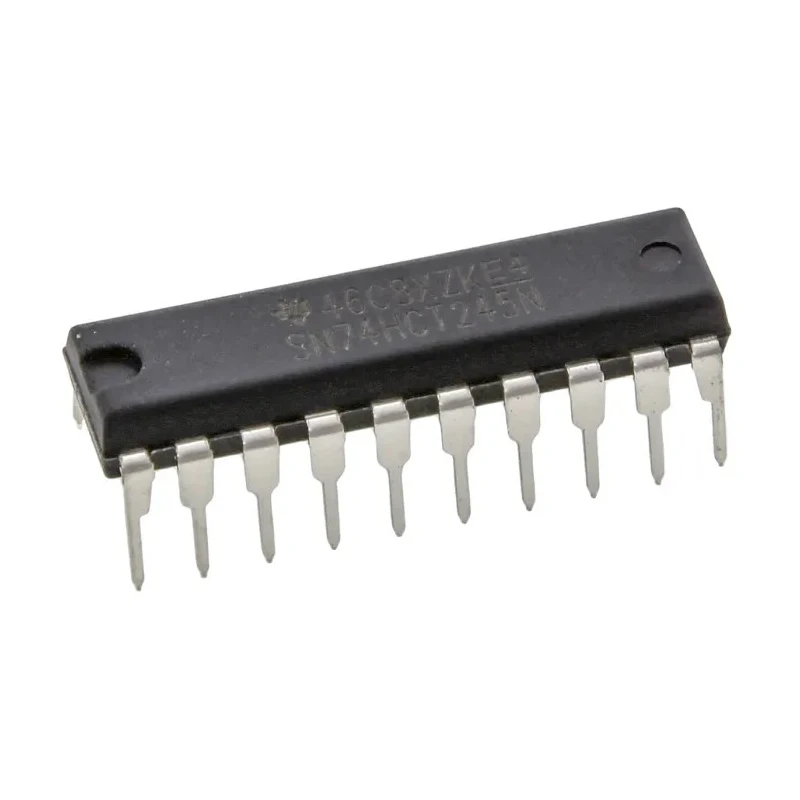

Texas Instruments Bus Transceiver 8-Bit Non-Inverting CMOS, 20-Pin PDIP SN74HCT245N

Texas Instruments SN74HCT245N bus transceiver is an 8-bit, non-inverting CMOS logic device supplied in a 20-pin PDIP package. It operates over a voltage range of 4.5 to 5.5 volts, making it highly suitable for digital bus interface circuits requiring robust and low power CMOS technology.

This device belongs to the 74HCT family of logic ICs, combining TTL compatibility on inputs with CMOS output levels, which ensures high-speed operation with low power dissipation. The 3-state output type allows it to be used effectively in bus-oriented systems where multiple devices share common data lines.

With a maximum propagation delay of 45 nanoseconds, the SN74HCT245N provides efficient switching speed for synchronous data applications. It supports 8 channels, each capable of non-inverting data transmission, which simplifies digital design by avoiding signal inversion.

The device has a through-hole mounting with a standard 20-pin PDIP, which facilitates easy soldering and prototyping on printed circuit boards. Operating temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial environments.

8-bit bus transceiver functionality ensures efficient data communication. Compatibility with TTL input levels and CMOS output levels. 3-state outputs support bus sharing and reduce contention. Robust operating temperature range for industrial applications.

Low power silicon gate CMOS technology enhances energy efficiency. Through-hole mounting for ease of integration on PCB. Suitable for industrial, construction, and manufacturing electronic systems.

This transceiver is ideal for use in industrial electronics, embedded systems, and communication equipment where reliable data transmission and electrical compatibility are essential. Explore more semiconductor components and Bus Transceivers in the Electronics & Electricals category on EnvMart.
