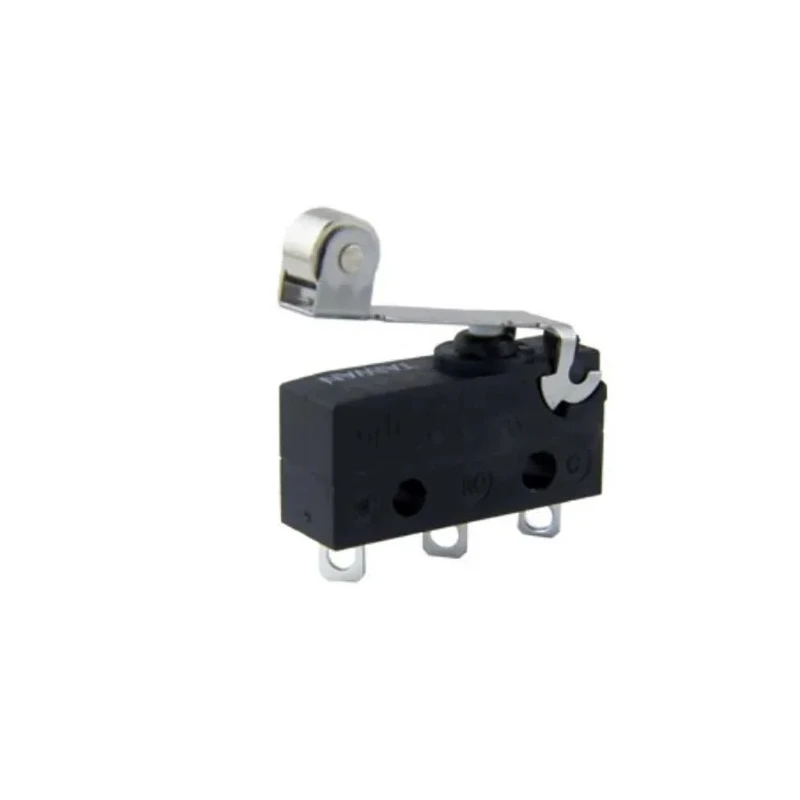

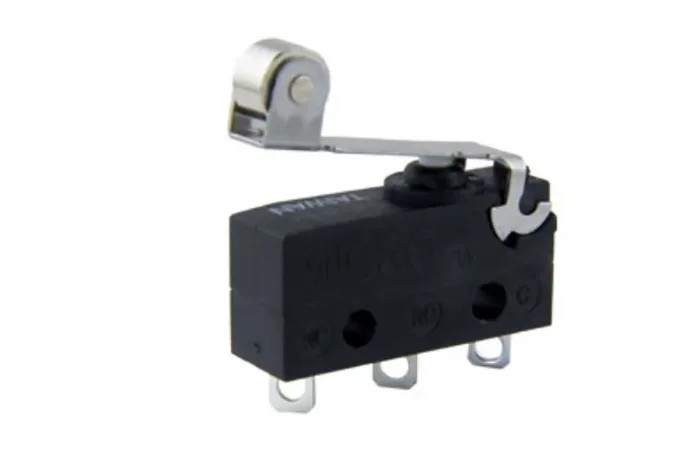

Honeywell Technologies Roller Lever Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT, IP00 ZW50F15FD1

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Technologies Roller Lever Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT, IP00 ZW50F15FD1

Name: Honeywell Technologies Roller Lever Micro Switch, Solder Terminal, 6A, 250 V AC, SPDT, IP00 ZW50F15FD1
Brand: Honeywell
SKU: 165547
Price: 16.67 USD
Availability: InStock



Category Micro Switch Brand Honeywell Condition New

Specifications

Country of Origin	Taiwan
Brand	Honeywell
Length	19.8mm
Model	ZW50F15FD1
Depth	9.25mm
IP Rating	IP00
Width	6.4mm
Housing Material	Polybutylene Terephthalate
Series	ZW
Maximum Operating Temperature	120°C
Contact Configuration	SPDT
Actuator Type	Roller Lever
Minimum Operating Temperature	-40°C
Terminal type	Solder
Hazardous Area Certification	CQC, cUL, ENEC, RoHS, UL
Standards/Approvals	CQC, cUL, ENEC, RoHS, UL
Switch Contact Current	6A
Operating Force	203g
Mechanical Life	1000000min
Contact AC Voltage	250V ac
Microswitch Type	Subminiature

Key Features

Roller lever actuator ensures consistent mechanical performance under repeated use.
Solder terminal type suitable for PCB mounting or wiring integration.
Rated for 6 ampere switching current at 250 volts AC.
Operating temperature range from -40°C to 120°C provides wide thermal tolerance.
Constructed with polybutylene terephthalate housing for electrical insulation and stability.
Single-pole double-throw contact configuration enables normally open and normally closed signaling.
Compact subminiature design with dimensions 19.8mm length, 9.25mm depth, and 6.4mm width.
Mechanical life rated to one million cycles for durable performance.

Product Description

Honeywell ZW50F15FD1 Roller Lever Micro Switch is a precision electromechanical limit device designed for industrial automation and control applications. Featuring a subminiature form factor, this micro switch is built with a roller lever actuator to provide low-friction, reliable actuation and consistent performance in demanding environments.

Engineered with a solder terminal type, it allows secure PCB mounting or direct wiring connections, suitable for assembly line automation, position sensing, and safety interlocks in electrical control panels and mechanical drives. The switch supports a rated switching current of 6 amperes at 250 volts AC, making it appropriate for moderate load switching tasks.

Its housing is made from polybutylene terephthalate which offers excellent electrical insulation and mechanical stability. The device operates reliably across a broad temperature range from -40°C to 120°C, allowing deployment in diverse industrial and environmental conditions.

The contact configuration is single-pole double-throw (SPDT), providing both normally open and normally closed circuit capabilities. This configuration is ideal for limit detection and safety applications within industrial equipment.

Mechanical endurance is rated at one million cycles, minimizing the need for frequent replacements and ensuring long operational lifetime under rigorous switching demands.

This model, part of the Honeywell ZW series, complies with international standards including CQC, cUL, ENEC, RoHS, and UL certifications, confirming its suitability for global industrial use.

Roller lever actuator for reliable mechanical switching. Solder terminals for PCB or wiring connection. 6A switching current rating at 250V AC. Polybutylene terephthalate housing material. Wide operating temperature range from -40°C to 120°C.

SPDT contact configuration for versatile switching use. Compact dimensions: 19.8mm length, 9.25mm depth, 6.4mm width. 1 million mechanical cycles life for durability. Compliant with CQC, cUL, ENEC, RoHS, and UL standards.

Ideal for industrial automation, electrical control panels, safety interlocks, and assembly line limit detection. Browse more Micro Switches and related products for robust control solutions on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a maximum switching current of 6 amperes at 250 volts AC.

It operates reliably across a temperature range from -40°C to 120°C.

It features a roller lever actuator designed for low-friction and reliable actuation.

The contact configuration is single-pole double-throw (SPDT), allowing for both normally open and normally closed circuit capabilities.

The dimensions are 19.8mm in length, 9.25mm in depth, and 6.4mm in width.

It has a mechanical life rated at one million cycles, ensuring long operational lifetime under rigorous conditions.

The housing is constructed from polybutylene terephthalate, providing electrical insulation and stability.

It features solder terminals suitable for PCB mounting or direct wiring connections.

This model complies with CQC, cUL, ENEC, RoHS, and UL certifications, confirming its suitability for global industrial use.

It is designed for industrial automation, electrical control panels, safety interlocks, and assembly line limit detection.

The operating force required is 203 grams.

The micro switch has an IP rating of IP00, indicating it is not rated for protection against water or dust, making it unsuitable for outdoor use without additional protection.
