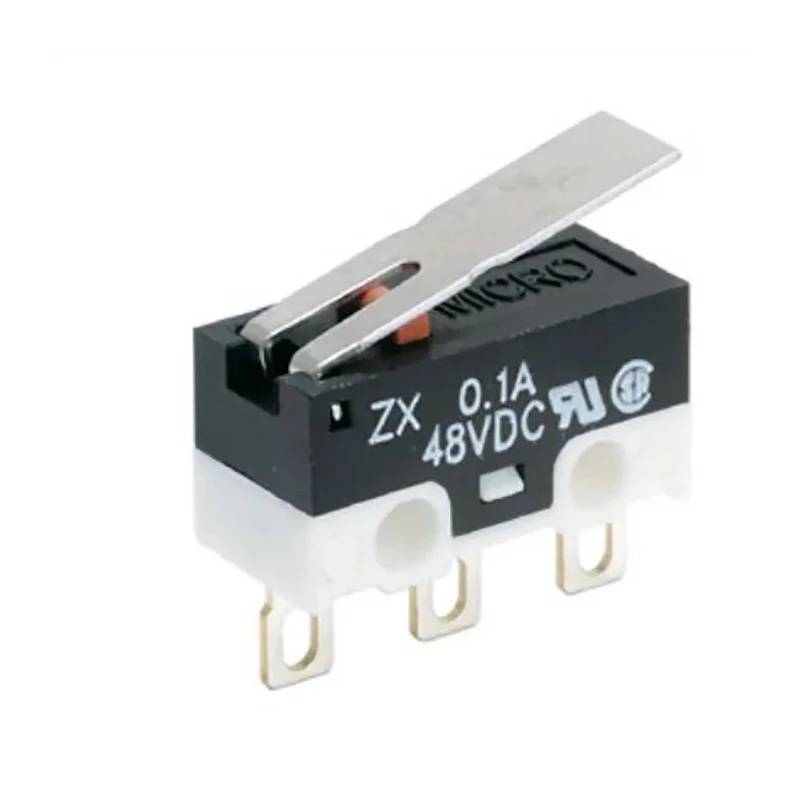

Honeywell Technologies Roller Lever Micro Switch with PCB Terminal, 3A, 125V AC, 60V DC, SPDT, IP40 ZX40E20F01
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 12.8mm |
| Model | ZX40E20F01 |
| Depth | 6.5mm |
| IP Rating | IP40 |
| Width | 5.8mm |
| Housing Material | Polyamide |
| Series | ZX |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Hazardous Area Certification | UL, RoHS, ENEC, cUL, CQC |
| Standards/Approvals | UL, RoHS, ENEC, cUL, CQC |
| Contact DC Voltage | 60V |
| Switch Contact Current | 3A |
| Operating Force | 150g |
| Mechanical Life | 3000000min |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Subminiature |
Key Features
- Features a roller lever actuator designed for precise linear or rotational motion detection.
- Equipped with PCB terminals for secure and direct printed circuit board mounting.
- Constructed with polyamide housing and rated IP40 for basic ingress protection.
- Operates efficiently at an operating force of 150g across a temperature range from -40°C to 85°C.
- Subminiature size offers space-saving installation on PCBs in automation and control systems.
- Single pole double throw (SPDT) contact arrangement ensures versatile circuit control.
- Mechanical life rated at 3 million cycles for extended durability in industrial environments.
- Holds multiple international approvals including UL, RoHS, ENEC, cUL, and CQC certifications.
Product Description
Honeywell ZX40E20F01 Roller Lever Micro Switch is a compact, electromechanical device designed to detect mechanical movement and provide precise switching for automated and electronic systems. Featuring a roller lever actuator and subminiature size, this micro switch is ideally suited for direct PCB mounting, combining space efficiency with reliable operation.
The switch supports a contact current of 3A and contact voltages of 125V AC and 60V DC, making it suitable for various signal switching applications in industrial control and consumer appliances. Its polyamide housing offers IP40-rated protection against solid particle ingress, ensuring dependable operation in many environments.
With a low operating force of 150g and mechanical endurance of up to 3 million cycles, the ZX40E20F01 provides long-lasting and consistent performance. It operates effectively within a wide temperature range from -40°C to 85°C, accommodating diverse industrial applications.
The roller lever actuator reduces wear by rolling contact during actuation, enhancing switch reliability and installation flexibility. Typical use cases include position sensing in conveyor automation, limit detection in electromechanical actuators, safety interlocks on compact machinery, and user-input detection on control panels.
Precise actuation through roller lever mechanism reduces wear. Compact subminiature design suits PCB mounting and tight spaces. Robust 3A, 125V AC and 60V DC capability for versatile circuit switching. Polyamide housing with IP40 rating for basic environmental protection.
Wide operating temperature range from -40°C to 85°C. Long mechanical life rated for 3 million cycles extends service life. Multiple international approvals ensure global compliance and reliability.
Ideal for applications in industrial automation, consumer appliances, manufacturing controls, and safety systems, the Honeywell ZX40E20F01 Roller Lever Micro Switch is a durable and precise component for electronic switching needs.
Explore the extensive range of Honeywell Micro Switches and sensors available at EnvMart to meet varied industrial and electronics requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Honeywell ZX40E20F01 Roller Lever Micro Switch has a contact current rating of 3A.
This micro switch supports contact voltages of 125V AC and 60V DC.
It has an IP40 rating, providing basic protection against solid particle ingress.
The dimensions of the ZX40E20F01 are 12.8mm in length, 5.8mm in width, and 6.5mm in depth.
The operating temperature range for this model is from -40°C to 85°C.
It features a roller lever actuator designed for precise linear or rotational motion detection.
The mechanical life of this micro switch is rated for 3 million cycles.
This model is equipped with PCB terminals for secure and direct mounting on printed circuit boards.
It holds multiple international approvals including UL, RoHS, ENEC, cUL, and CQC certifications.
The operating force required for actuation is 150g.
This micro switch is suitable for applications in industrial automation, consumer appliances, manufacturing controls, and safety systems.
The housing of the ZX40E20F01 is constructed from polyamide material.
