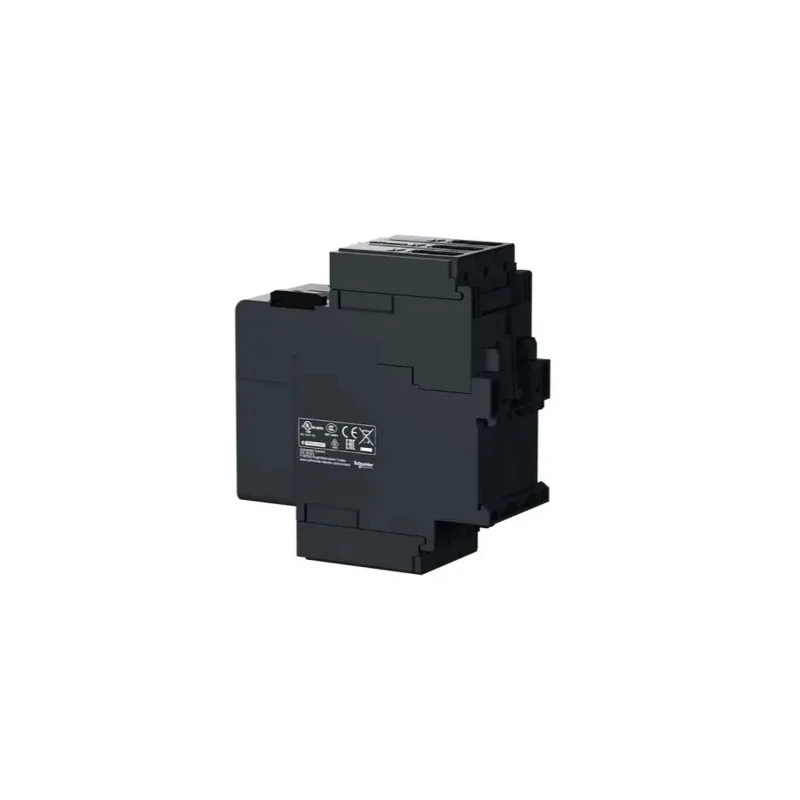

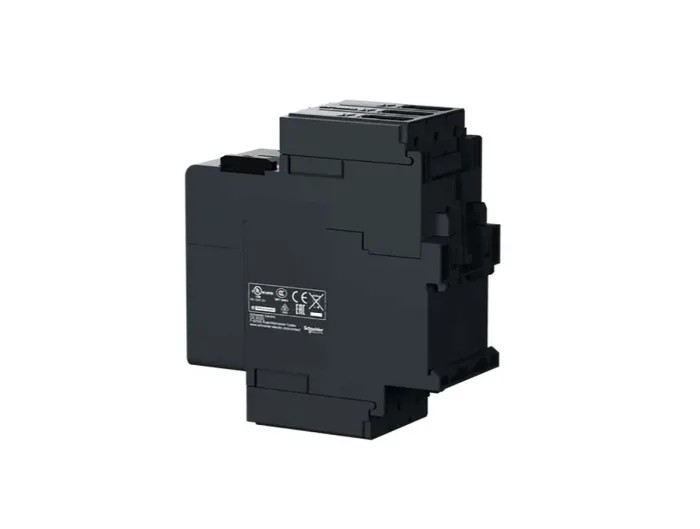

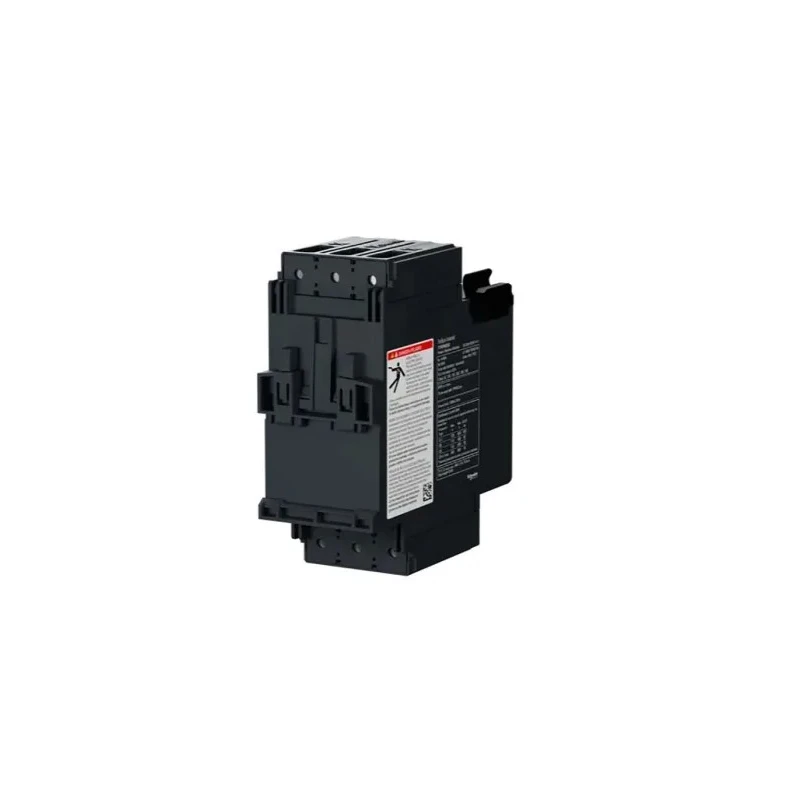

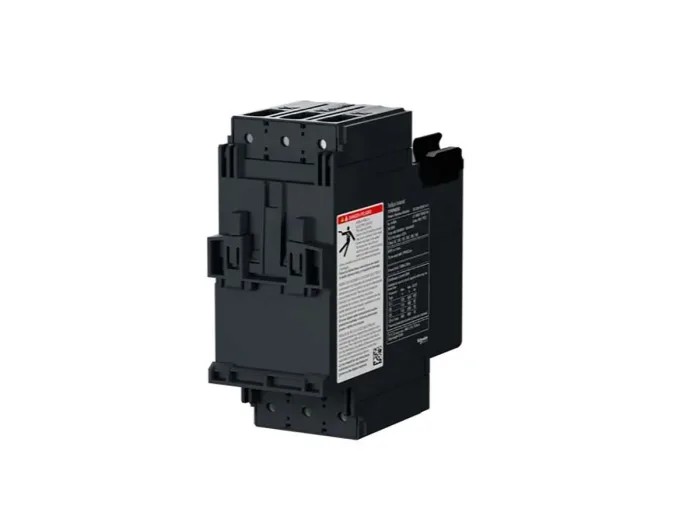

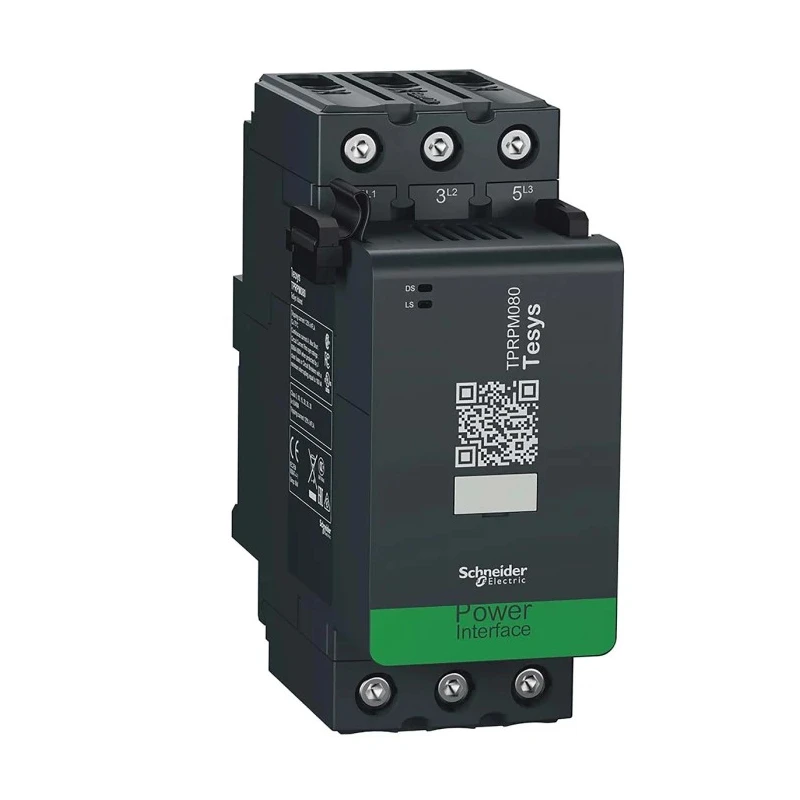

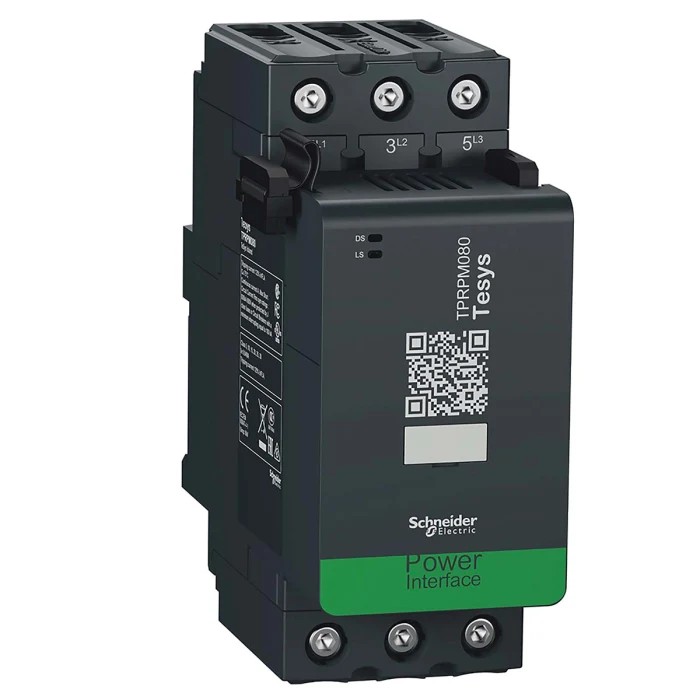

Schneider Electric Monitoring Relay 1, 3 Phase DIN Rail Mount, 690V AC, 24 V DC Power Module TPRPM080

Schneider Electric's TPRPM080 Monitoring Relay is a 1, 3 Phase power module engineered for DIN rail mounting, offering reliable monitoring and control in industrial automation systems. It supports supply voltages of 690V AC and 24V DC, making it well-suited for a variety of electrical applications.

The module features a compact footprint with dimensions of 125mm length, 55mm width, and 136mm height, optimizing panel space. Power consumption is minimal at 2.3W, contributing to energy-saving operations.

Equipped with screw terminal connections and rated for a contact current of 80A, the device ensures robust and secure electrical contacts. Its operating temperature range from +60°C minimum to 60°C maximum allows for continuous use in industrial temperature conditions. With an IP20 protection rating, it is suitable for indoor environments where protection against solid objects and limited access is required.

The TPRPM080 module complies with stringent standards including UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1, and CSA C22.2 No 60947-4-1, assuring durability and safety in demanding applications.

This monitoring relay is part of the Schneider Electric TeSys Island range, compatible with TPRBC bus coupler, TPRDG digital IO modules, and TPRAN analog IO modules, providing versatile connectivity and control within automated systems. It offers functions such as upstream voltage presence detection and electronic thermal overload protection, enabling comprehensive control when paired with third-party power devices.

Compact design with dimensions 125mm length, 55mm width, and 136mm height. Low power consumption of 2.3W ensuring energy-efficient operation. Mounts easily on DIN rail with screw terminal connections providing secure wiring.

Rated for contact current up to 80A suitable for industrial applications. Operating temperature range from minimum +60°C to maximum 60°C for reliable performance. Ingress Protection rating IP20 for safe usage in controlled environments.

Complies with UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1, and CSA C22.2 No 60947-4-1 standards indicating high quality and safety. Compatible with TeSys Island bus coupler, digital and analog IO modules for automation integration.

This monitoring relay is ideal for industrial, manufacturing, electrical automation, and HVAC control applications where reliable power monitoring and device control are essential. Schneider Electric's reputation for quality and innovation ensures dependable performance and long-term operation.
