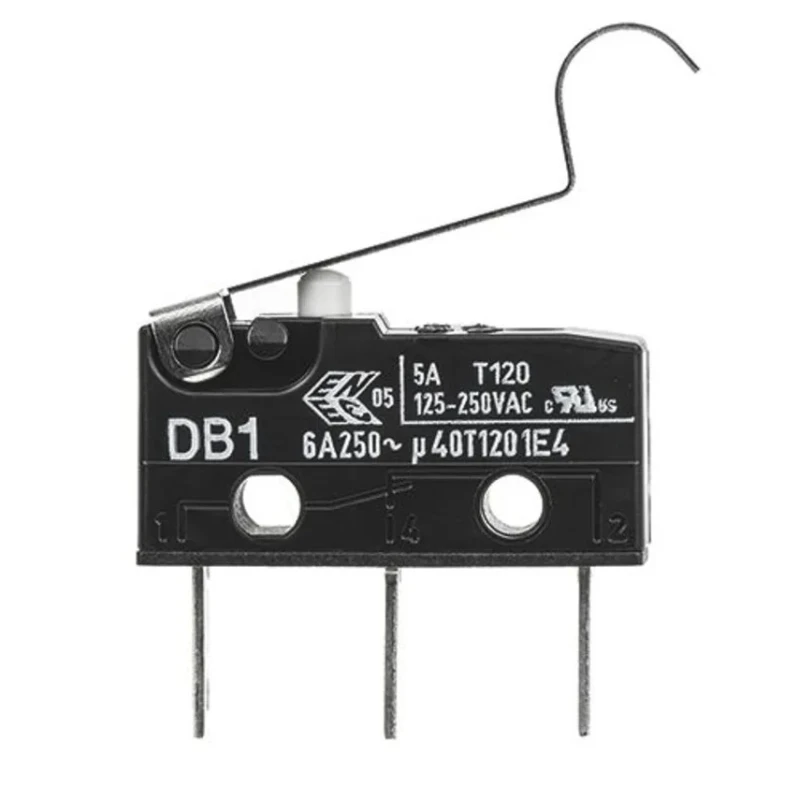

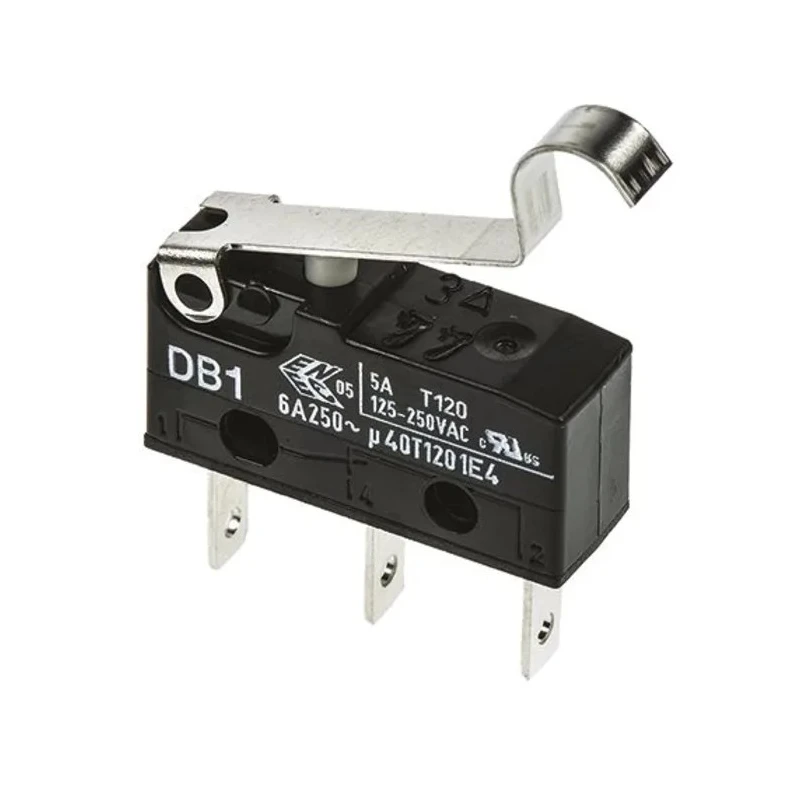

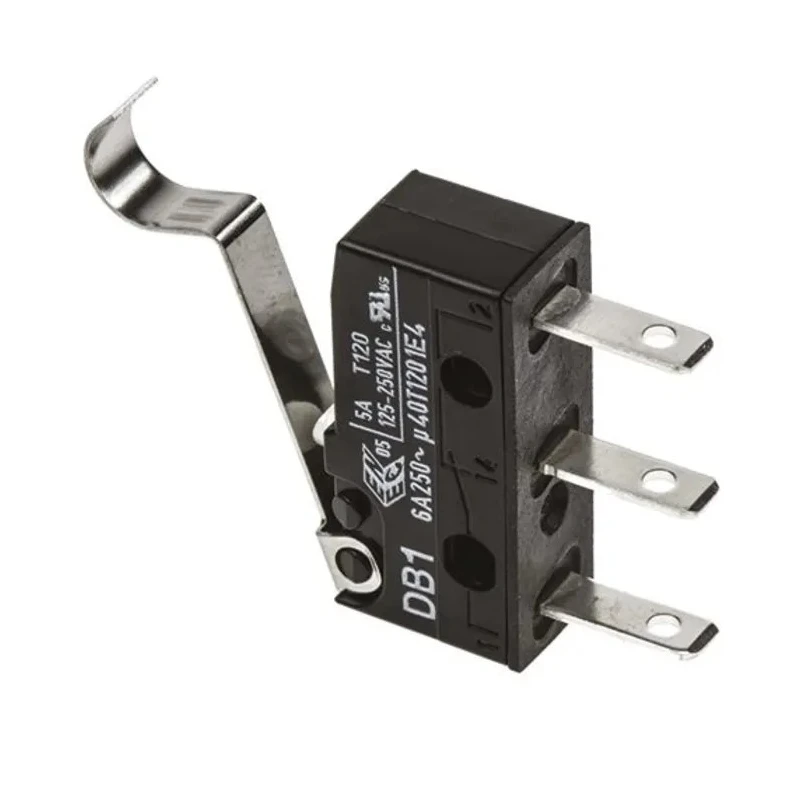

ZF Simulated Roller Lever Micro Switch, Tab Terminal, 6A, 250 V AC, SPDT, IP50 DB1C-B1SC

Free Delivery in India | Lowest Global Shipping Charges

ZF Simulated Roller Lever Micro Switch, Tab Terminal, 6A, 250 V AC, SPDT, IP50 DB1C-B1SC



Category Micro Switches Brand ZF Condition New

Specifications

Country of Origin	Germany
Brand	ZF
Model	DB1C-B1SC
IP Rating	IP50
Housing Material	Polyethylene Terephthalate, Polyamide
Maximum Operating Temperature	120°C
Contact Configuration	SPDT
Actuator Type	Simulated Roller Lever
Minimum Operating Temperature	-40°C
Terminal type	Tab
Standards/Approvals	RoHS
Switch Contact Current	6A
Operating Force	0.54N
Mechanical Life	15000000Operations
Contact AC Voltage	250V ac
Microswitch Type	DB Subminiature

Key Features

Rated at 6 amps current and 250 volts AC contact voltage for electrical reliability.
Single pole double throw (SPDT) contact configuration to enable multi-directional switching.
IP50 rated housing ensures protection from small particles but is not dust tight.
Operating temperature range from -40°C to 120°C suitable for harsh environments.
Constructed with durable polyethylene terephthalate and polyamide materials for longevity.
Mechanical life expectancy of 15 million operations assures extended usage reliability.
Low operating force of 0.54 Newtons enables precise actuation sensitivity.
Compliance with RoHS environmental standards for safe industrial application.

Product Description

The ZF DB1C-B1SC is a precision-engineered micro switch designed for industrial and electrical applications requiring high repeat accuracy and durability. Equipped with a simulated roller lever actuator and tab terminals, this switch offers optimal versatility for control circuits and automation systems.

It handles a maximum contact current of 6 amperes at 250 V AC with a SPDT contact configuration, enabling reliable switching between different circuit paths. The housing materials - polyethylene terephthalate and polyamide - provide robust mechanical strength and stability under demanding operational conditions.

This micro switch features an operating temperature range from -40°C to 120°C, making it suitable for environments with wide temperature fluctuations. With an IP50 ingress protection rating, it offers protection from limited dust ingress, contributing to the longevity and consistent performance of the device.

The DB series micro switches are known for their exceptional mechanical life, boasting up to 15 million operations. A low operating force of just 0.54 N allows for sensitive and responsive actuation, which is vital for precise control in industrial automation, electrical equipment, and manufacturing applications.

This product complies with RoHS standards, ensuring it meets environmental and safety regulations. Manufactured in Germany, the ZF DB1C-B1SC demonstrates high-quality engineering and reliable functionality.

Rated current of 6A and voltage rating of 250 V AC. Simulated roller lever actuator and tab terminal type. Robust polyethylene terephthalate and polyamide housing materials. Mechanical life up to 15 million operations. Operating force of 0.54N for sensitive actuation.

Wide temperature range from -40°C to 120°C. Single pole double throw SPDT contact configuration. IP50 standard for ingress protection. RoHS compliant for environmentally safe use.

This micro switch is ideal for use in electrical automation, industrial manufacturing, HVAC control panels, and circuit protection in commercial and industrial settings. Browse more high-quality Micro Switches and electrical components at EnvMart to find complementary products that match your application needs.
