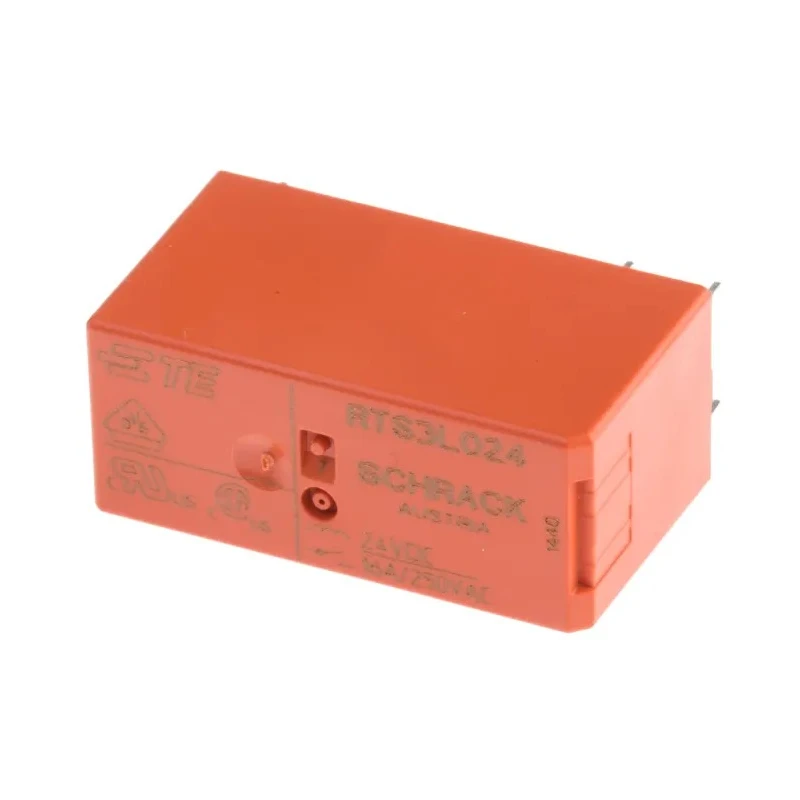

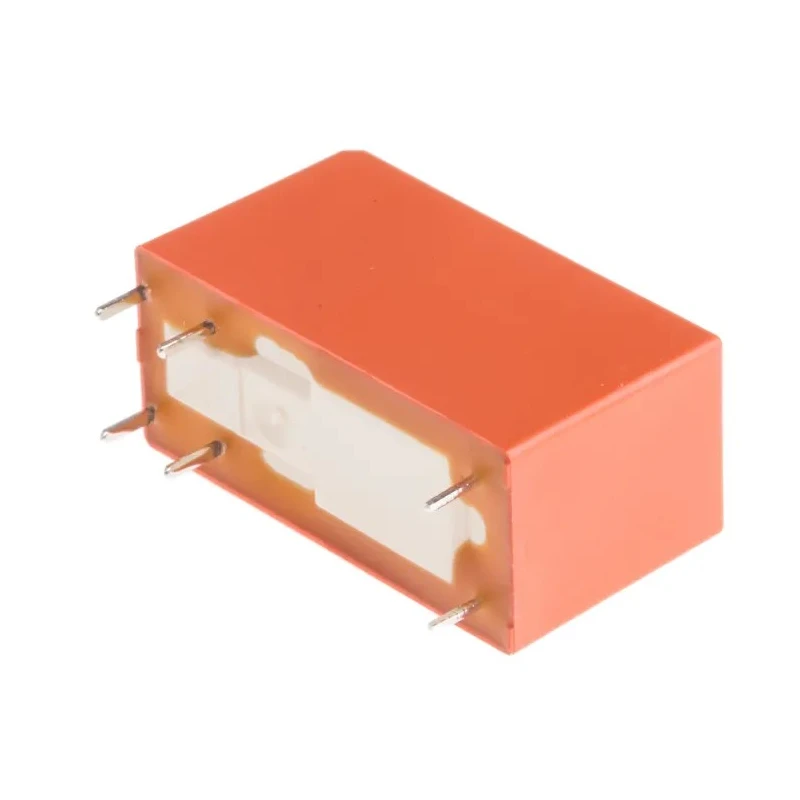

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPST RTS3L024

TE Connectivity RTS3L024 PCB Power Relay features a 24V DC coil with a switching current capacity of 16A, configured as SPST contacts for efficient and reliable switching operations. This relay is designed for PCB mounting, utilizing solder terminals and forming part of the RT-iPower series, noted for high inrush current handling and stability. With coil resistance rated at 1.4kΩ and coil power consumption of 500mW, it is energy-efficient and reliable for extended industrial use.

The relay’s operational temperature range from -40°C to 85°C allows deployment in various demanding environments including industrial, automation, HVAC, and manufacturing settings. It supports switching AC voltage up to 400V AC and features silver alloy contacts for enhanced conductivity and durability.

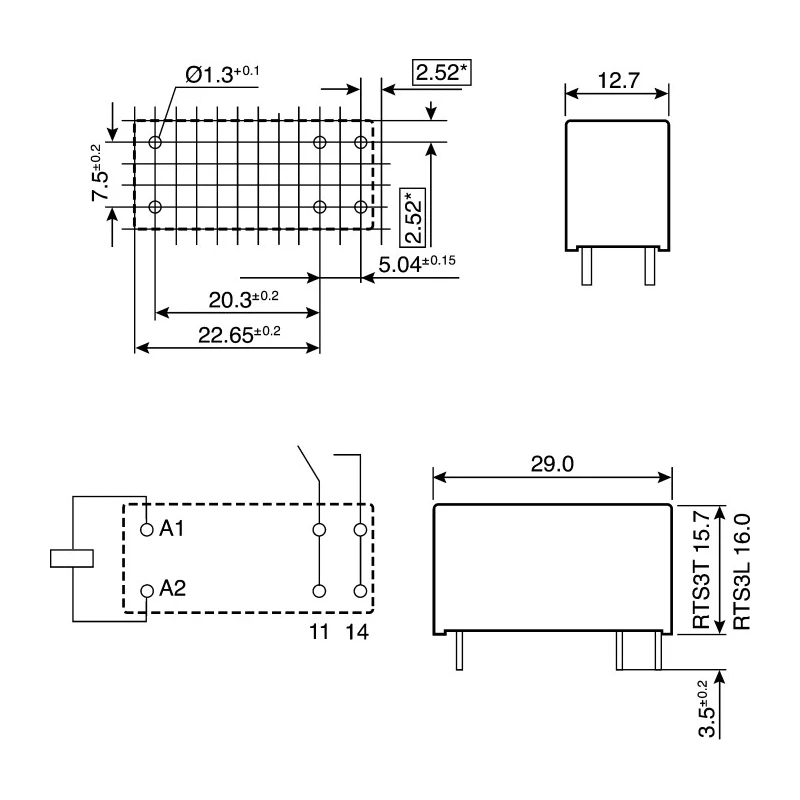

Compact dimensions (29mm length, 16mm height, 12.7mm width) make it suitable for tight PCB spaces without sacrificing performance. Certified under IEC 61810 standards and compliant with RoHS directives, this relay ensures adherence to safety and environmental protection regulations.

Approved by global bodies such as UL, CSA, and VDE, the RTS3L024 meets rigorous quality controls and is suitable for applications including lighting control systems, movement sensing devices, filament/incandescent lamp loads, and motor switching tasks.

The relay’s reinforced insulation with 10mm creepage and clearance enhances reliability in high voltage scenarios. Its robust design supports high inrush currents, adding to its suitability for complex electrical switching tasks in industrial and commercial environments.

Operates with a 24V DC coil voltage and 500mW coil power. Switching current rating of 16A and AC voltage of 400V AC. Compact PCB mount relay with solder terminal connections. Silver alloy contact material for high conductivity and longevity.

Wide temperature range: -40°C to 85°C for versatile application uses. Compliant with IEC 61810, RoHS, UL, CSA, and VDE approvals. Reinforced insulation supports safety in high voltage situations. Suitable for lighting systems, sensors, motors, and lamp loads.

Compact size fitting space-constrained PCB designs. Explore more Power Relays and electrical components at EnvMart for your industrial and commercial electronics projects.
