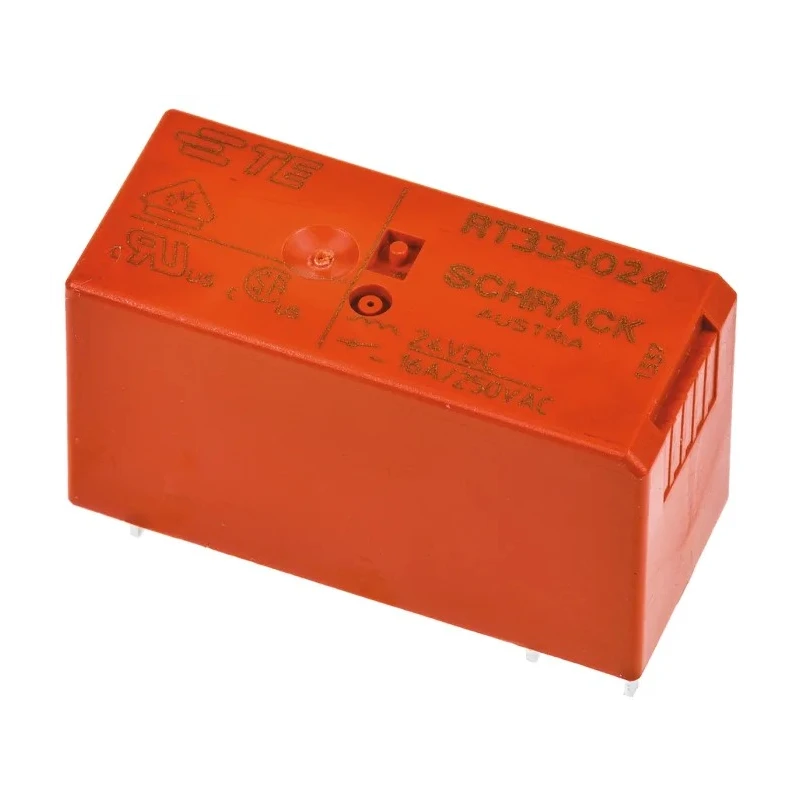

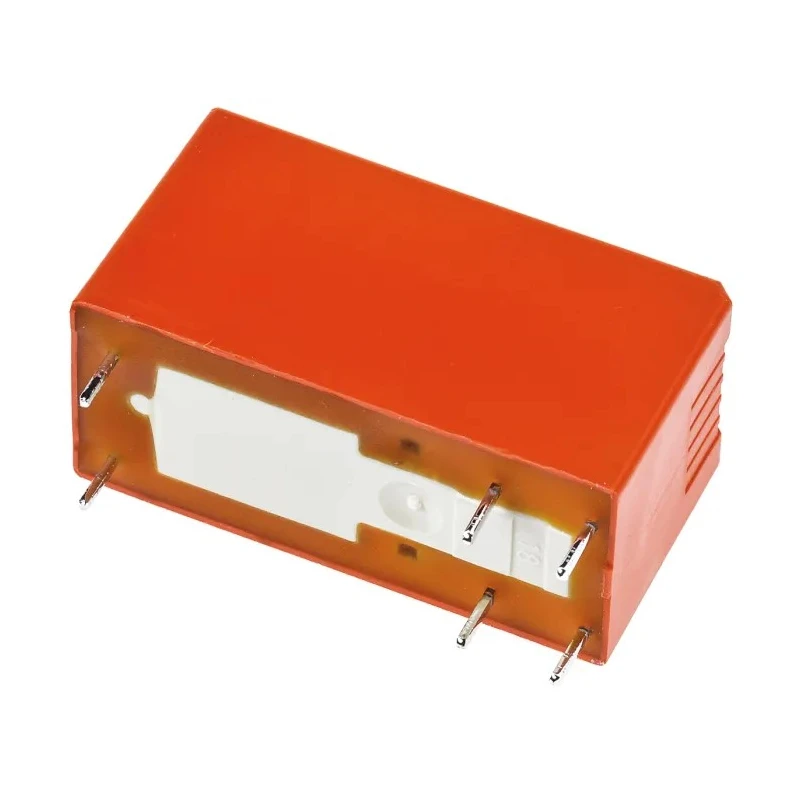

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPST RT334024

TE Connectivity RT334024 PCB Power Relay is a high-quality industrial-grade relay designed for power switching and signal conditioning applications. Featuring a 24V DC coil and a high switching current capacity of 16A, this relay delivers robust performance for automation, control systems, and interface modules.

The relay has a Single Pole Single Throw (SPST) contact configuration, making it ideal for circuits requiring simple ON/OFF switching. It is designed for PCB mounting with solder terminals, facilitating reliable and secure connections on printed circuit boards.

Constructed with Silver Nickel Alloy contacts, the relay ensures excellent conductivity and long service life. It is compact in size, with dimensions of 29mm length, 12.7mm width, and 15.7mm height, fitting conveniently in tight assembly spaces.

Operational temperature range from -40°C to 85°C supports use in diverse environmental conditions typical in industrial, automation, heating systems, security lighting, and domestic applications.

The coil power consumption is only 250mW, supporting energy-efficient operation. The relay complies with recognized standards including IEC 60335-1, RoHS directives, and VDE safety standards, ensuring safe and environmentally responsible usage.

Operates at a 24V DC coil voltage providing reliable control. Single Pole Single Throw (SPST) configuration for straightforward switching. Supports switching currents up to 16 amperes suitable for demanding loads. Designed for printed circuit board mounting with solder-type terminals.

Compact and durable construction with dimensions of 29 x 12.7 x 15.7 mm. Workable temperature range from -40°C to 85°C ensures wide applicability. High switching AC voltage of 400V AC for flexible applications. Contact materials made of Silver Nickel Alloy for longevity and performance.

Coil resistance of 1.4 kΩ and coil power of 250mW for efficient operation. Fully compliant with IEC 60335-1, RoHS, and VDE standards.

This relay series is suitable for use in industrial automation systems, heating controls, security lighting controls, and various domestic electronic applications. The RT334024 model from TE Connectivity offers dependable switching performance, easy PCB integration, and compliance with international safety and environmental standards.
