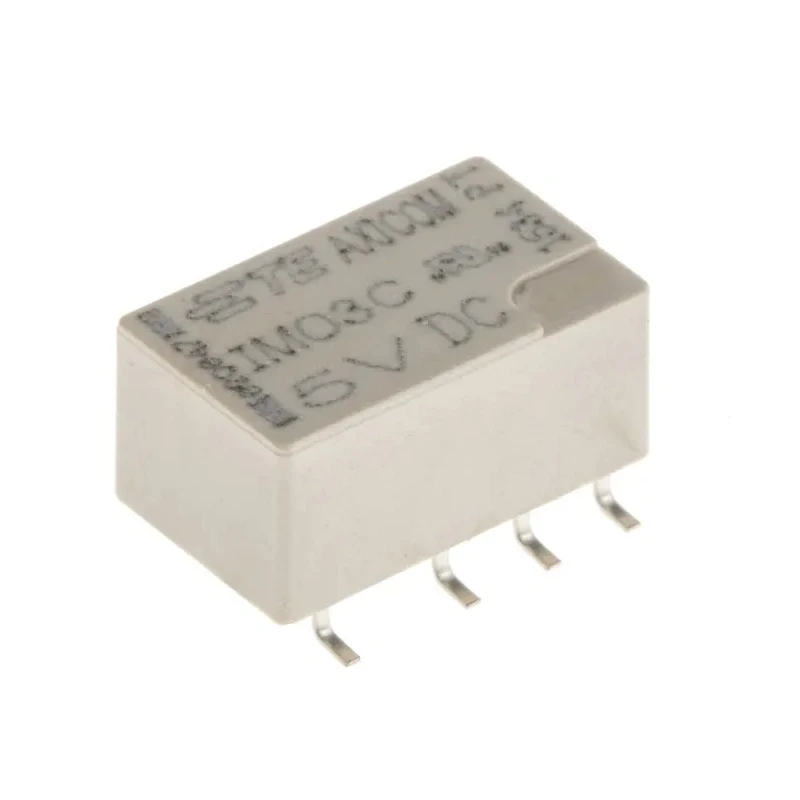

TE Connectivity Surface Signal Relay, DPDT Contact Configuration, 5V DC Coil Voltage, 2A Switching Current IM03CGR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM03CGR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Palladium, Ruthenium |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| TE Connectivity Surface Signal Relay, 5V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features
- Operates reliably with a coil voltage of 5V DC ensuring stable performance.
- Switching current capacity of 2A suitable for moderate current loads.
- Compact surface mount type with dimensions of 10mm length, 6mm width, and 5.65mm height.
- Gold plated bifurcated contacts offer enhanced electrical connectivity and durability.
- Designed to withstand mechanical shock up to 300G functional and 500G survival.
- Hermetically sealed with an IP67 rating for superior protection against dust and moisture.
- Wide operating temperature range from -40°C to 85°C for diverse environmental applications.
- High surge capability compliant with Telcordia TR-NWT-001089 and EC 60950 standards.
Product Description
TE Connectivity IM03CGR Surface Signal Relay provides a reliable switching solution with a 5V DC coil voltage and a double pole double throw (DPDT) contact configuration suitable for various industrial and automation applications.

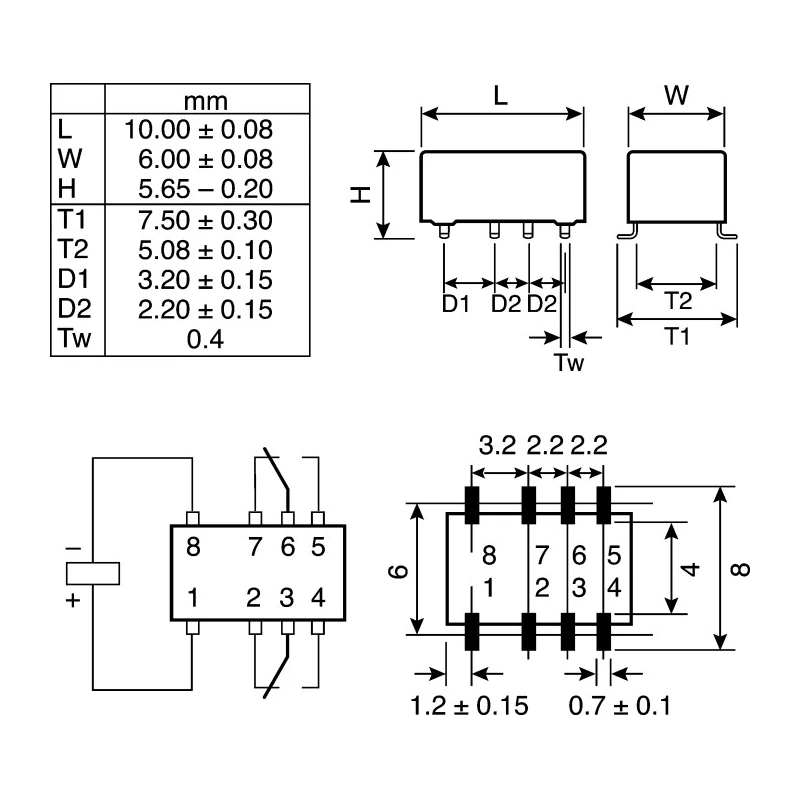

This surface mount relay features a slim and low profile design measuring 10mm in length, 6mm in width, and 5.65mm in height with gull wing SMT legs ensuring easy PCB integration. The relay employs palladium and ruthenium contact materials with gold-plated bifurcated contacts to guarantee low contact resistance and excellent electrical performance.
It is hermetically sealed (RT V) and rated IP67, ensuring outstanding resistance against environmental contaminants, extending operational life. Withstanding mechanical shocks up to 300G in functional condition and 500G in survival mode, the relay is suitable for demanding industrial and telecom equipment.
Operating temperature range from -40°C to 85°C allows deployment in harsh environments and temperature-varying conditions. The device meets high surge capability standards, including Telcordia TR-NWT-001089 and EC 60950, enforcing its reliability under transient electrical stresses.
Operates reliably with a coil voltage of 5V DC ensuring stable performance. Switching current capacity of 2A suitable for moderate current loads. Compact surface mount type with dimensions of 10mm length, 6mm width, and 5.65mm height.
Gold plated bifurcated contacts offer enhanced electrical connectivity and durability. Designed to withstand mechanical shock up to 300G functional and 500G survival. Hermetically sealed with an IP67 rating for superior protection against dust and moisture.
Wide operating temperature range from -40°C to 85°C for diverse environmental applications. High surge capability compliant with Telcordia TR-NWT-001089 and EC 60950 standards.
This product is widely used in telecommunications, automation, industrial machinery, and electronic signal control systems where reliability, compact size, and performance are critical.
Explore more Signal Relays from TE Connectivity available on EnvMart to find ideal solutions for your industrial and electronic control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 2A, suitable for moderate current loads.
This model measures 10mm in length, 6mm in width, and 5.65mm in height, making it a compact surface mount type.
It operates with a coil voltage of 5V DC, ensuring stable performance during operation.
The relay features a double pole double throw (DPDT) contact configuration, allowing for versatile switching applications.
The operating temperature range for this relay is from -40°C to 85°C, suitable for diverse environmental applications.
This relay is designed for surface mounting, featuring gull wing SMT legs for easy PCB integration.
The relay employs palladium and ruthenium contact materials with gold-plated bifurcated contacts for enhanced electrical connectivity.
It is hermetically sealed with an IP67 rating, providing superior protection against dust and moisture.
The relay complies with Telcordia TR-NWT-001089 and EC 60950 standards, ensuring high surge capability.
It is designed to withstand mechanical shocks up to 300G in functional condition and 500G in survival mode.
The coil power for this relay is 140mW, which is efficient for its operation.
The relay is manufactured in India.
