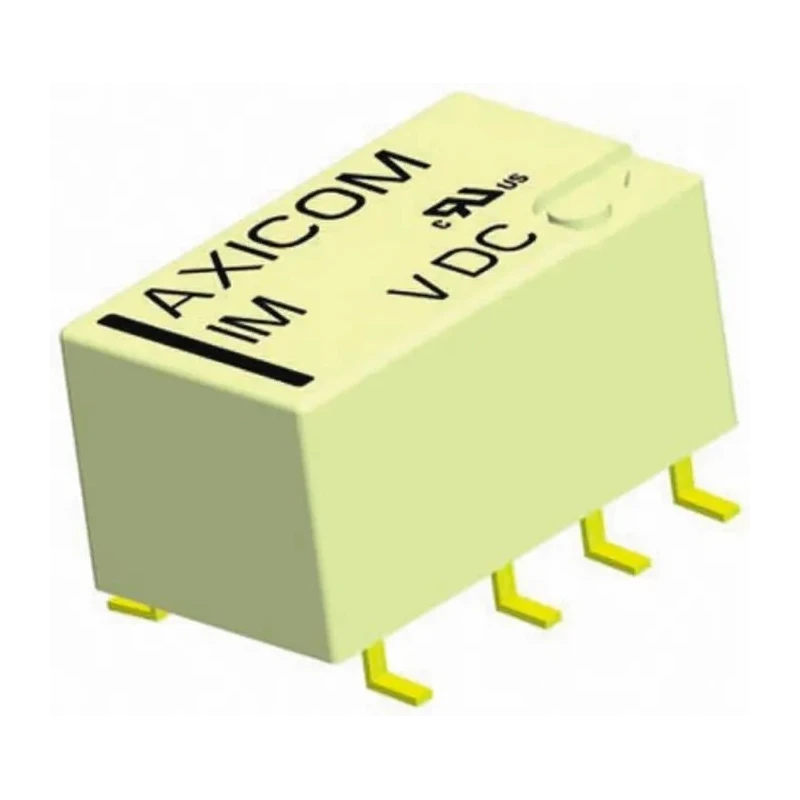

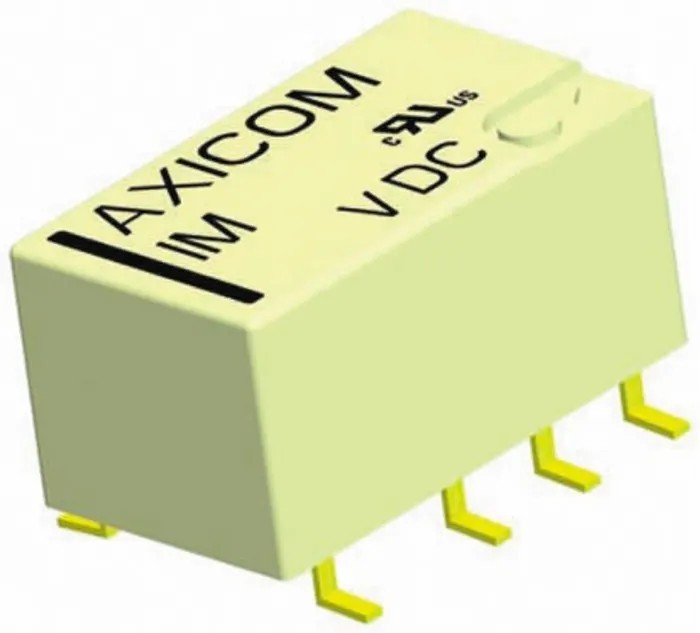

TE Connectivity Surface Signal Relay with 5V DC Coil, 2A Switching Current, DPDT Contact Configuration IM43GR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |

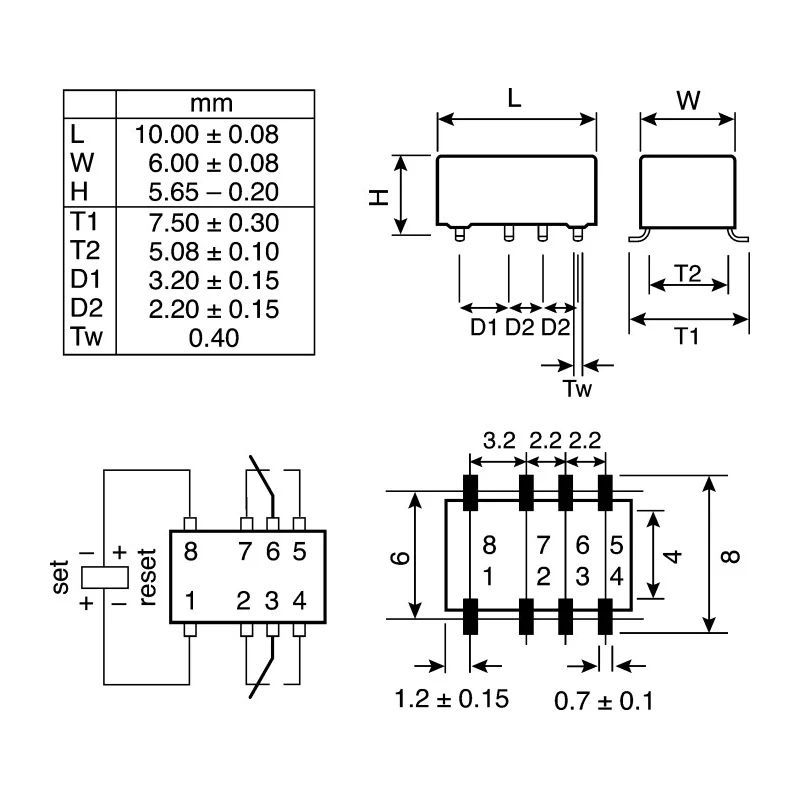

| Height | 5.65mm |
| Length | 10mm |
| Model | IM43GR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | Axicom |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 250Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 100mW |
| Switching Power | 140mW |
Key Features
- Features a low-profile slimline design ideal for space-constrained circuits.
- Equipped with gold-plated bifurcated contacts for enhanced conductivity and durability.
- Hermetically sealed for IP67 protection ensuring resistance to dust and moisture.
- High mechanical shock resistance up to 300G functional and 500G survival.
- Wide operating temperature range from -40°C to 85°C for demanding industrial environments.
- Offers high surge capability compliant with Telcordia TR-NWT-001089 and EC 60950 standards.
- Surface mount type with gull wing SMT legs facilitating easy PCB assembly.
- Coil resistance of 250Ω consuming 100mW power for efficient operation.
Product Description
TE Connectivity IM43GR is a surface signal relay designed with a low-profile slimline form factor measuring 10mm in length, 6mm in width, and 5.65mm in height. It operates with a 5V DC coil voltage and features a double-pole double-throw (DPDT) contact configuration capable of switching currents up to 2A, making it highly suited for signal relay applications.
The relay utilizes gold-plated bifurcated contacts to ensure excellent electrical performance and longevity. Its hermetically sealed housing provides IP67-rated protection against dust and moisture, enhancing reliability in harsh environments.
This IM series relay exhibits high mechanical shock resistance, withstanding up to 300G under functional conditions and 500G for survival, making it dependable under extreme industrial vibrations and shocks. It also conforms to electrical surge standards such as Telcordia TR-NWT-001089 and EC 60950, enabling robust performance against voltage spikes.
The coil resistance is 250Ω with a coil power consumption of 100mW, enabling efficient energy usage. Its surface mount gull wing SMT legs design facilitates automated PCB assembly, ensuring streamlined manufacturing processes.
Operating temperature ranges from -40°C to 85°C, making it suitable for a wide variety of industrial, telecommunications, automation, and signal conditioning applications where compact size, reliability, and performance are critical.
Low-profile 10x6x5.65 mm slimline signal relay. Gold plated bifurcated contacts for superior conductivity. Hermetically sealed (RT V) with IP67 protection. High mechanical shock resistance up to 300G functional. Wide temperature range from -40°C to 85°C.
High surge capability compliant with Telcordia and EC standards. Coil power of 100mW with 250Ω resistance. Surface mount gull wing SMT terminal design. This TE Connectivity IM43GR relay is ideal for telecom and industrial signal conditioning environments requiring stability, compactness, and durability.
Explore the comprehensive range of Signal Relays and related electrical components available on EnvMart to suit your industrial automation and signal switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of up to 2A, making it suitable for various signal relay applications.
The relay operates with a coil voltage of 5V DC, allowing for efficient energy consumption.
It has a low-profile design measuring 10mm in length, 6mm in width, and 5.65mm in height.
This relay utilizes a surface mount design with gull wing SMT legs, facilitating easy PCB assembly.
It operates effectively within a temperature range of -40°C to 85°C, suitable for demanding industrial environments.
The coil resistance is 250Ω, and it consumes 100mW of power for operation.
It complies with Telcordia TR-NWT-001089 and EC 60950 standards for high surge capability.
The contacts are made of gold-plated material, which enhances conductivity and durability.
The maximum switching voltage is 220V DC for direct current and 250V AC for alternating current applications.
This model is suitable for telecommunications, industrial automation, and signal conditioning applications due to its compact size and reliability.
