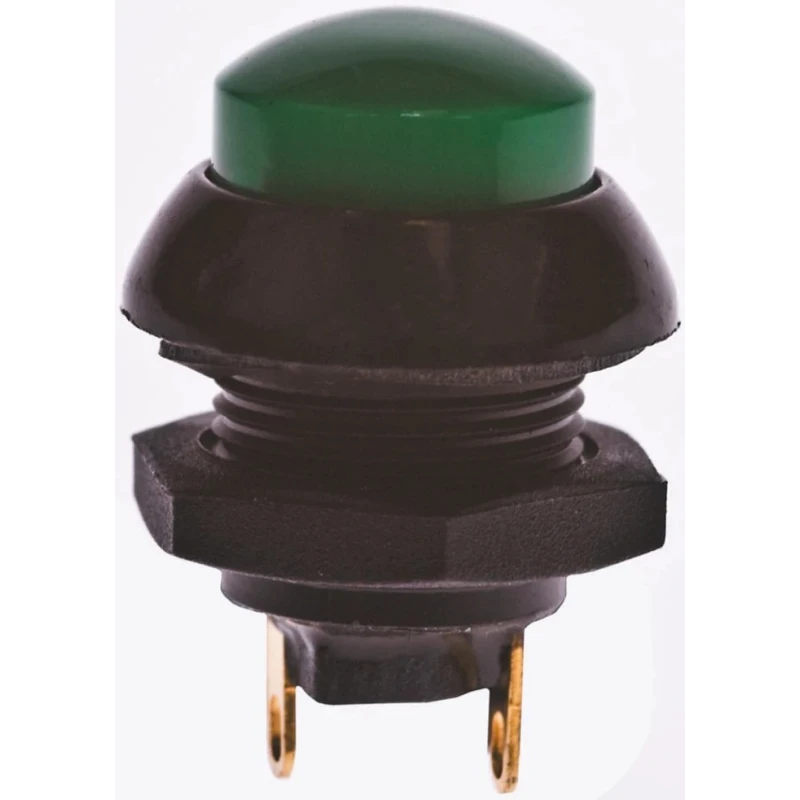

Otto P9 Series Push Button Switch, Momentary, Panel Mount, SPDT, Green LED, IP68, 28 V dc 115 V ac P9213125W

Otto P9213125W is a P9 Series push button switch featuring a momentary action with a SPDT (form Z) contact configuration and green LED actuator. Designed for panel mounting, this switch has a threaded case with a hex nut and a low profile to fit in compact control panels. It is sealed to IP68 standards, making it watertight and submersible up to 1 meter pressure.

The switch operates reliably under a wide temperature range from -55°C to 85°C, supporting demanding industrial and instrumentation environments. It is rated for a contact current of 5A at 28 V dc or 115 V ac, providing dependable switching performance. Mechanical operations reach approximately one million cycles with an electrical life of 25,000 operations, ensuring long-term use.

This model comes with a matte black body and a contoured dome style button, available in flush and raised profiles, with green LED illumination for visual status indication. The compact size and rugged construction make it suitable for demanding applications including heavy equipment controls, computers, instrumentation, and other industrial uses.

Momentary switch operation with SPDT contact configuration for versatile control. Green LED illuminated actuator for clear status indication. Panel mount design with threaded case and hex nut for secure installation. IP68 rating providing watertight sealing up to 1 meter submersion.

Operating temperature range from -55°C to 85°C for extreme environments. Contact rating of 5A resistive at 28V dc and 115V ac ensuring reliable switching. Compact push button with flush or raised dome styles available in multiple colors.

High mechanical durability with approximately one million mechanical operations. Suitable for industrial, control equipment, computers, and instrumentation applications.

The Otto P9 Series push button switches are designed for reliability and ease of installation, providing a rugged and attractive control solution. It is recommended to use gasket stock number 737-3863 for panel sealing.
