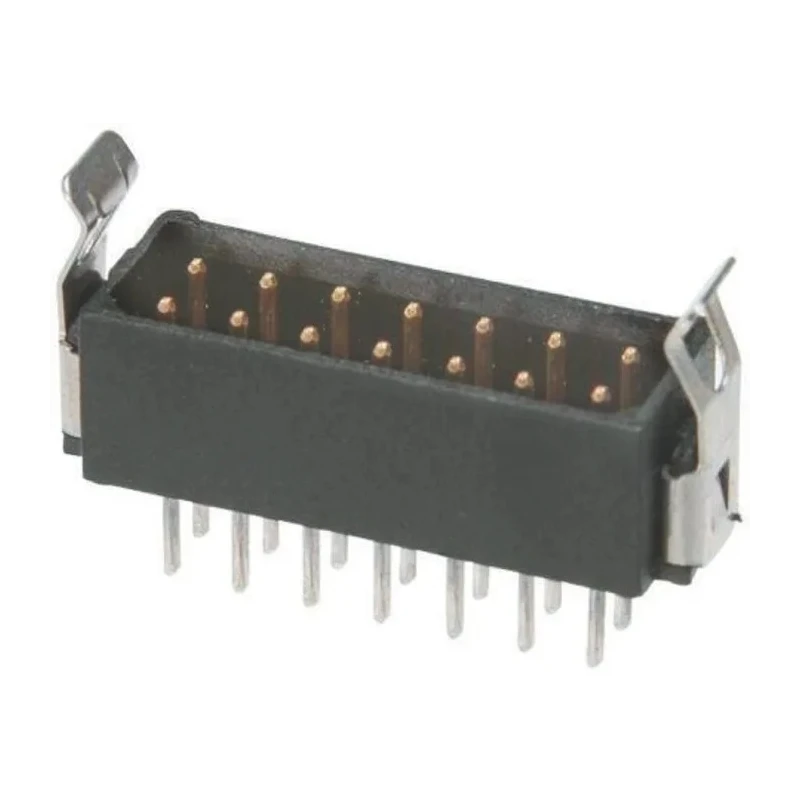

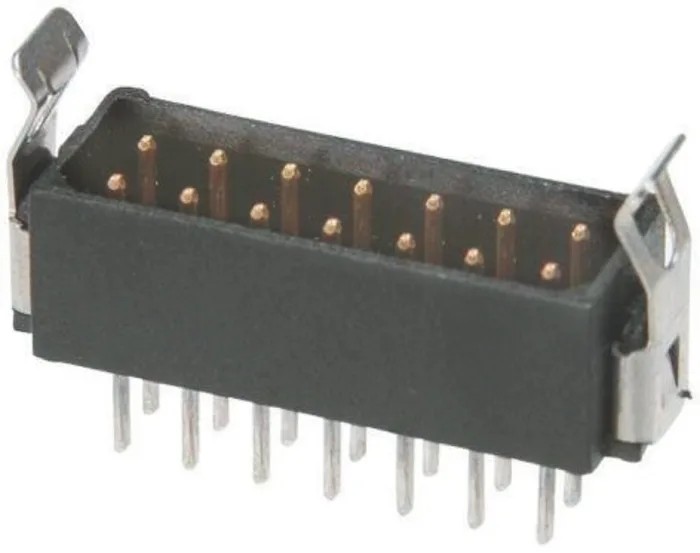

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 2 Row Shrouded M80-8531242

HARWIN M80-8531242 Datamate L-Tek Series is a high-reliability straight through hole PCB header designed for robust electronic connections with 12 contacts arranged in 2 rows at a 2 mm pitch.

The connector is shrouded for added protection and features a housing made of polyphenylene sulphide to withstand environmental stresses. The phosphor bronze contacts plated with gold ensure durable conductivity and resistance to corrosion.

This PCB header supports both board-to-board and wire-to-board connection systems, making it versatile for different applications.

Terminated by soldering, it includes a 3 mm tail pin length suitable for secure mounting on PCBs. The maximum operating temperature of 125 °C permits use in demanding industrial environments.

With a current rating of 3 A and voltage rating of 120 V, this connector is suitable for a wide range of electrical applications. Its design provides high reliability even under continuous vibration and shock conditions, making it ideal for demanding automotive, industrial, and aerospace uses.

This PCB header supports board-to-board and wire-to-board connector systems. Constructed with polyphenylene sulphide housing for durability. Contacts are phosphor bronze with gold plating to ensure reliability. Suitable for operating temperatures from -55°C to 125°C.

Designed for a maximum voltage rating of 120 V and current rating of 3 A. Features a 3 mm tail pin length optimized for solder termination. This series is latched and ideal for environments with vibration and shock. Manufactured in the United Kingdom ensuring quality and standards compliance.

The product complies with industry standards, making it suitable for commercial off-the-shelf (COTS) applications. It is engineered to withstand high cycles of mating without degradation, ensuring longevity and performance in harsh environments.

For engineers and designers requiring a dependable PCB header connector, the HARWIN M80-8531242 provides an excellent solution with its high mechanical and electrical performance. Explore more PCB Connectors and electronic components available at EnvMart to support your industrial and manufacturing needs.
