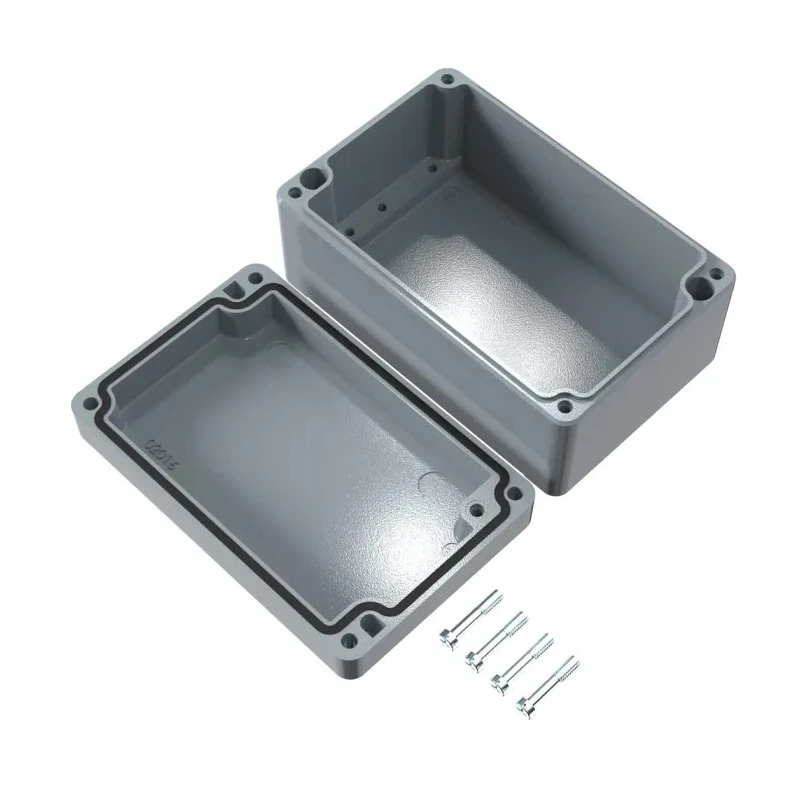

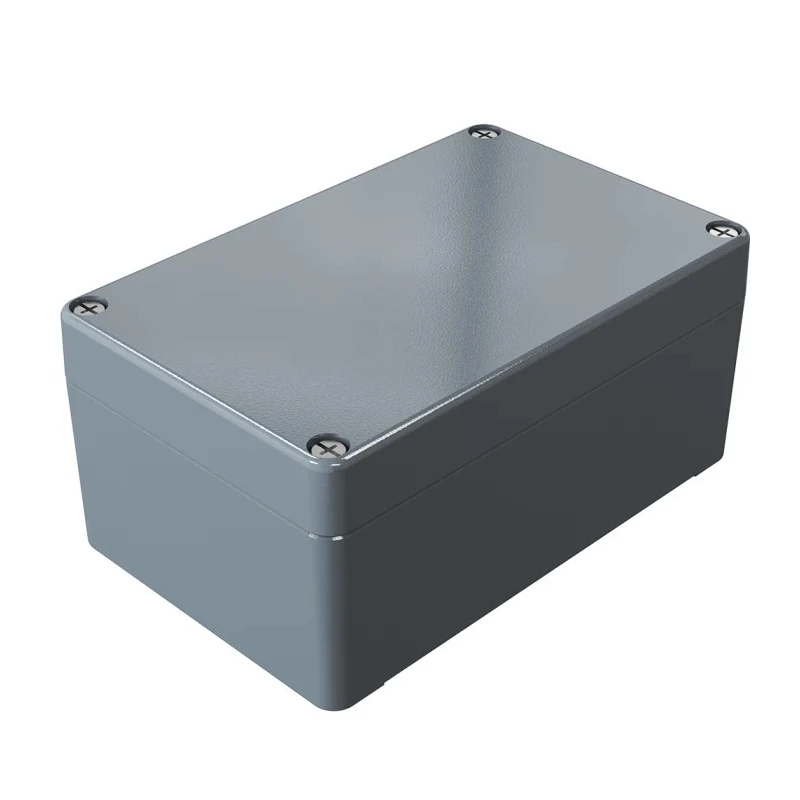

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure, IP66, IK09, 80 mm x 125 mm x 57 mm 01081306
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Rose |
| Body Material | Die Cast Aluminium |
| Model | 01081306 |
| IP Rating | IP66 |
| Gross Weight | 355g |
| Series | Aluminium Standard |
| External Width | 57mm |
| External Height | 80mm |
| Shielding | Unshielded |
| Hazardous Area Certification | Maritime, UL |
| Standards/Approvals | UL508 |
| External Length | 125mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| Number of Knockouts | 0 |
| Rose Distribution Board, 41 ABrand | Rose |
Key Features
- Made from durable die-cast aluminium for robustness and corrosion resistance.
- Features a grey lid and body with polyurethane gasket ensuring dust and water protection.
- Lightweight design at 355 grams eases mounting and installation.
- Complies with UL508 safety standards for industrial control use.
- Designed for mechanical workshops, process control, and telecommunications applications.
- Captive screws included for secure lid attachment preventing tampering.
- Unshielded body with no knockouts simplifies usage for general purpose enclosure needs.
- Wide operational temperature range from -40°C to +90°C for demanding environments.
Product Description
Rose 01081306 Aluminium Standard Series Grey Die Cast Aluminium Enclosure provides a reliable and durable protective housing for electrical components. Constructed from die-cast aluminium, this enclosure offers excellent resistance to impact and corrosion, making it suitable for harsh industrial environments.
With compact external dimensions of 80 mm height, 125 mm width, and 57 mm depth, it is ideal for small device storage and cable management systems. The grey-coloured lid and body include a polyurethane gasket that ensures robust sealing against dust and water ingress, certified with an IP66 rating, offering protection against powerful water jets from any direction.
This enclosure also meets the IK09 impact resistance rating, providing protection against mechanical shocks. Its design incorporates captive screws to secure the lid firmly, enhancing tamper resistance and safeguarding internal components.
Certified to meet UL508 standards, it conforms to requirements for industrial control panels, suitable for use in mechanical workshops, telecommunications sites, and process control systems. The enclosure operates reliably within a broad temperature range, from -40°C to +90°C, suitable for indoor and outdoor applications in demanding environments.
Durable die-cast aluminium construction offers impact and corrosion resistance. IP66 rated for dust-tight and high-pressure water jet protection. IK09 certified for enhanced mechanical impact resistance. Polyurethane gasket improves sealing and electrical safety.
Compact size supports small device enclosures and cable management. Captive screws included for secure, tamper-proof lid attachment. UL508 compliant, suitable for industrial control panel applications. Lightweight at 355 grams for ease of mounting on DIN rails or fixing plates.
Wide operating temperature range from -40°C to +90°C.
This Rose Aluminium Standard Series enclosure is engineered to meet demanding industrial needs, making it an essential component for electrical and telecommunications applications seeking reliable protection in harsh conditions.
Explore more high-quality electrical enclosures and accessories in the Electrical Enclosures category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this enclosure are 80 mm in height, 125 mm in width, and 57 mm in depth.
This model weighs 355 grams, making it lightweight for easy mounting and installation.
It has an IP66 rating, providing protection against dust and powerful water jets from any direction.
This enclosure is rated IK09, indicating it can withstand mechanical shocks and impacts.
It is constructed from die-cast aluminium, which offers excellent resistance to corrosion and impact.
Yes, it includes a polyurethane gasket that enhances sealing against dust and water ingress.
It complies with UL508 safety standards, suitable for use in industrial control applications.
No, this model is unshielded and does not have any knockouts, simplifying its usage for general purposes.
This enclosure operates reliably within a temperature range from -40°C to +90°C, suitable for various environments.
It is designed for mechanical workshops, process control, and telecommunications applications.
It includes captive screws for secure lid attachment, which helps prevent tampering and protects internal components.
The enclosure is manufactured in Germany, ensuring adherence to high standards of quality.
