APEM Illuminated Double Pole Single Throw (DPST) On-On On-(On) Rocker Switch Panel Nylon Housing 5A 24V DC 125V KR45CAKDDG

APEM KR45CAKDDG Illuminated DPST On-On On-(On) Rocker Switch Panel is a high-quality electrical component designed for reliable switching in industrial, automation, and electrical panel applications. The double pole single throw (DPST) configuration allows simultaneous control of two separate circuits with a sturdy On-On and On-(On) switch operation, providing versatility in controlling connected equipment.

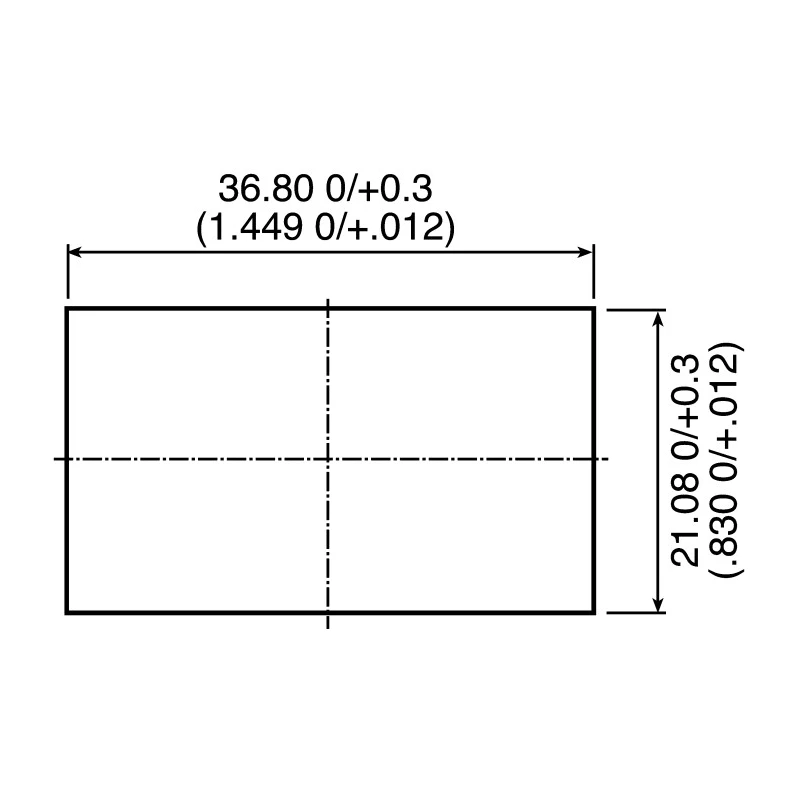

Its rugged nylon housing offers excellent mechanical strength and insulation, while the IP68 rating ensures protection against dust and water ingress, making it suitable for use in harsh environments. The panel cutout size of 36.8 x 21.08 mm allows precise and secure panel mounting.

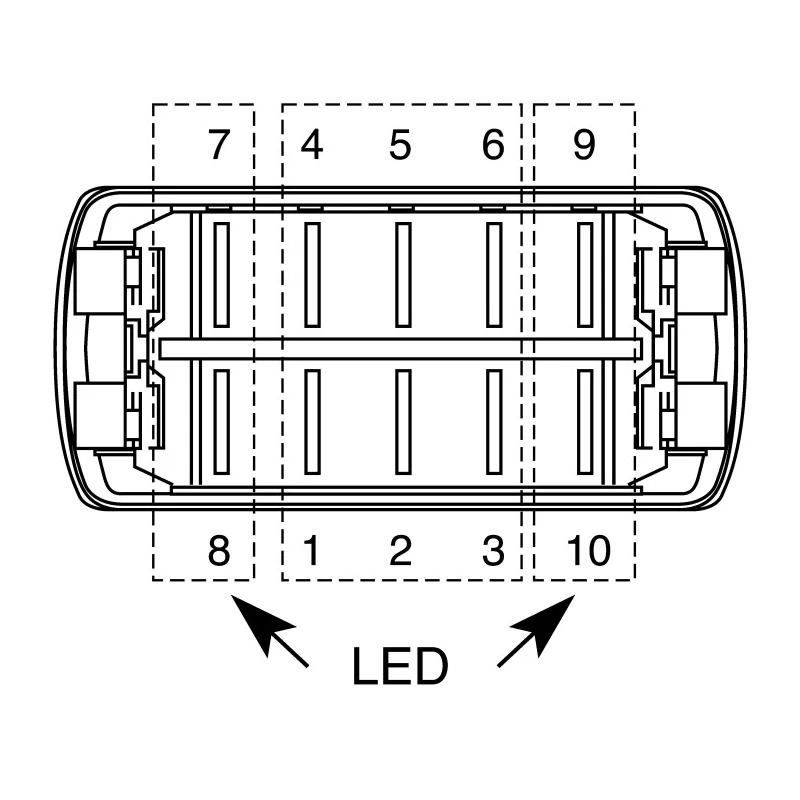

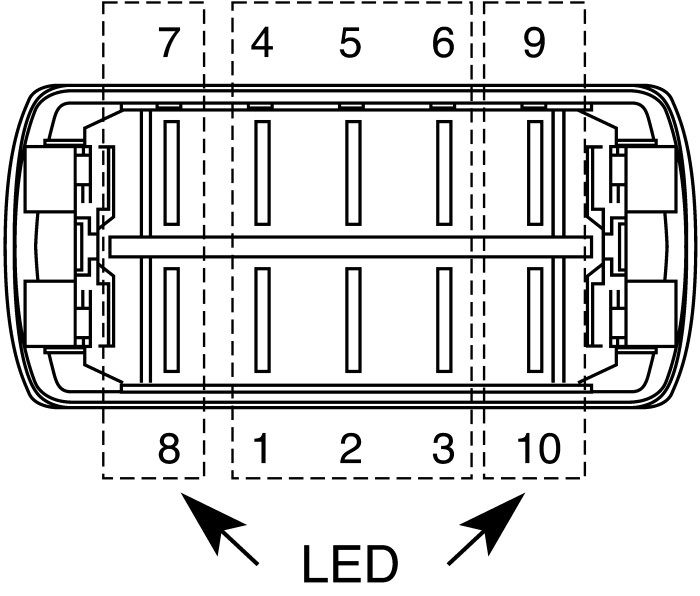

The switch supports a current rating of 5A and is designed for DC voltage of 24V and AC voltage up to 125V. The illuminated feature includes LED options with red, green, or amber lighting to provide clear visual status indication during operation. Terminal connection methods include quick connect and soldering to accommodate varied wiring needs.

Operating temperature range from -40°C to +85°C confirms suitability for diverse environmental conditions. The switch is rated for an impressive 150,000 mechanical operations, ensuring durability under repetitive use. It conforms to international standards including ISO, IEC, RoHS, and EN, guaranteeing quality and environmental compliance.

Manufactured in France, this APEM rocker switch is ideal for electrical panels, automation systems, HVAC, and general industrial equipment control. Accessories such as actuator options and connector housings are available separately to customize installation according to application requirements.

This rocker switch has a double pole single throw (DPST) contact configuration. Switch operation is On-On with an additional On-(On) configuration. The housing is made from nylon, providing excellent durability and insulation.

Panel cutout size measures 36.8 x 21.08 mm for precise mounting. Rated for 5 amp switch contact current with 24V DC and 125V AC contact voltages. Illuminated design includes LED options with color choices for visual feedback.

Quick connect and solder terminal types facilitate easy wiring. Operates reliably within -40°C to +85°C temperature range. Mechanical life expectancy of 150,000 operations ensures long-term durability. Designed and manufactured in France to ISO, IEC, RoHS, and EN standards.
