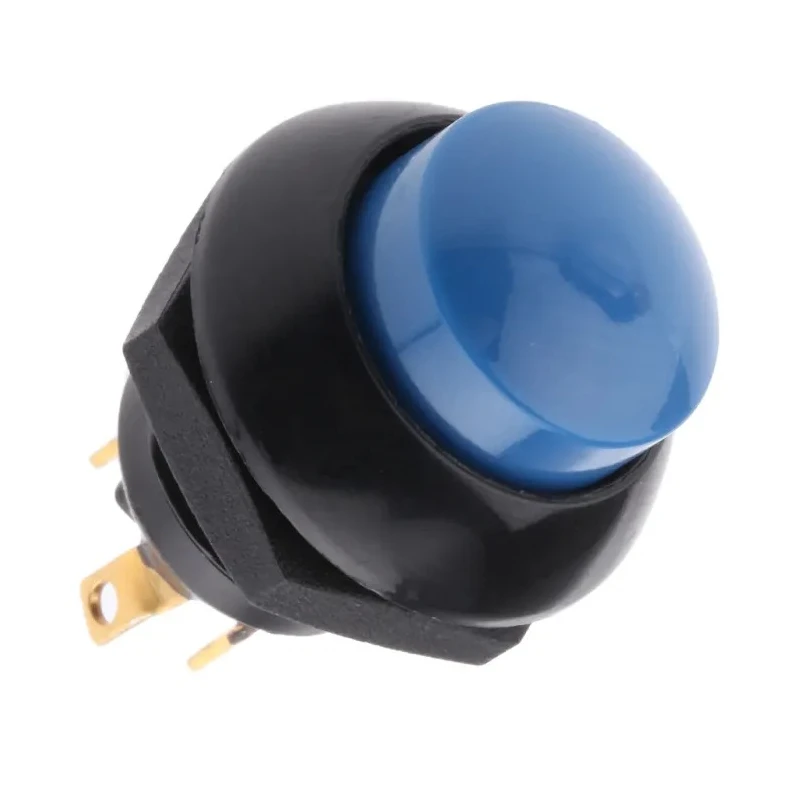

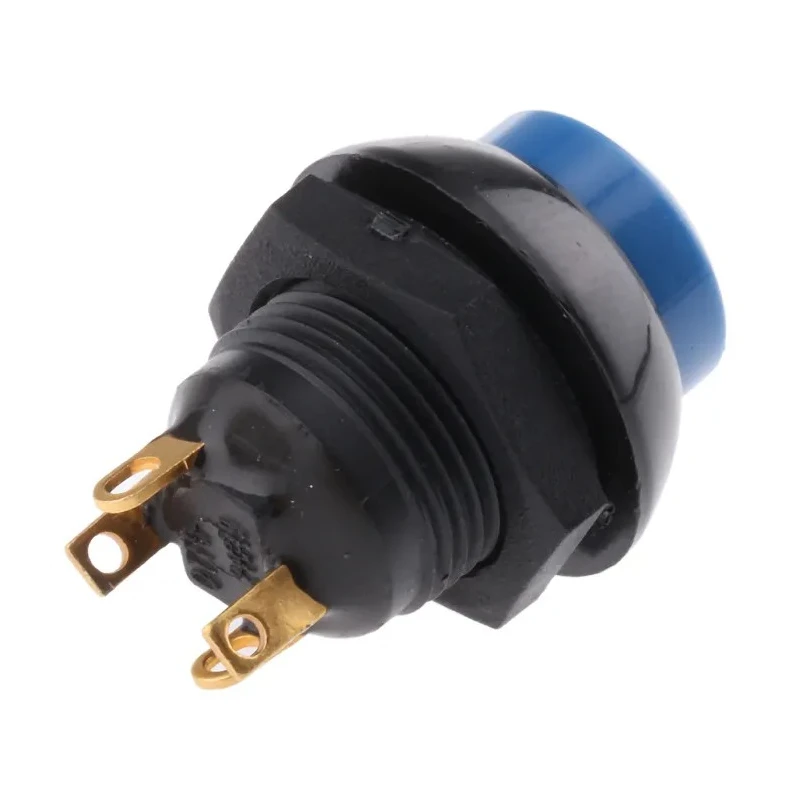

Otto P9 Series Momentary Panel Mount Push Button Switch SPDT Blue LED IP68 28 V dc 115 V ac P9213126W

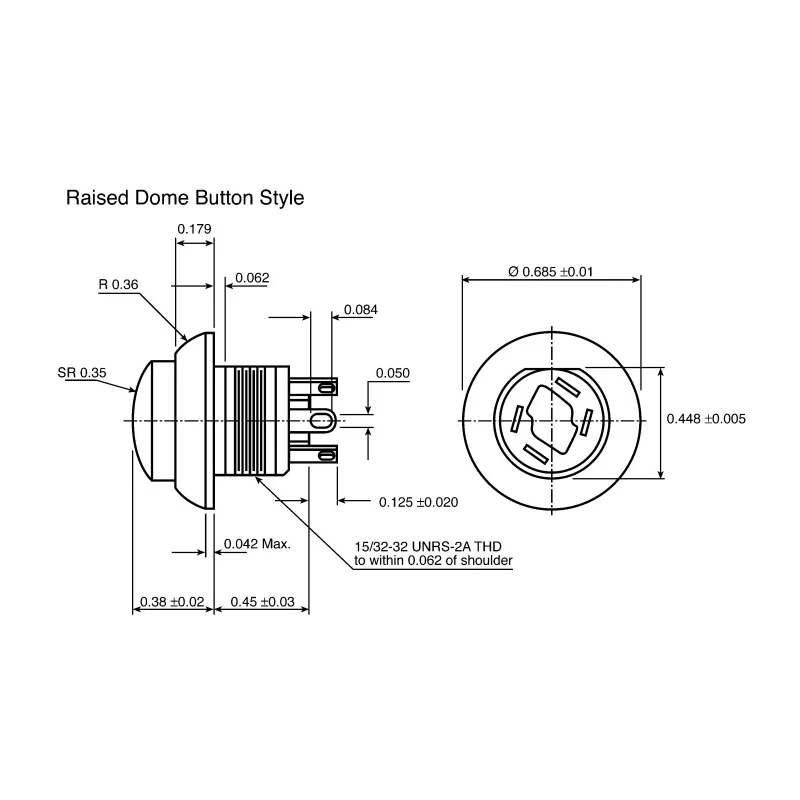

Otto P9213126W is a P9 series momentary push button switch designed for panel mounting applications. It features a SPDT (single pole double throw) contact configuration and a blue LED for clear status indication. The switch body is black with a contoured dome style button available in flush or raised profiles. The threaded case allows secure hex nut mounting through a 12.827 mm panel cutout, ensuring a minimal behind-panel depth of approximately 12 mm.

This push button switch meets IP68 standards, providing watertight sealing capable of submersion to 1 meter of water pressure, making it ideal for harsh and wet environments. Designed for robust performance, the switch can handle a contact current of 5 amps resistive at 28 V dc or 115 V ac, with a mechanical life expectancy of about one million operations and an electrical life of 25,000 operations.

The operating temperature range is wide, from -55°C to +85°C, allowing use in extreme conditions. The switch offers low contact resistance for sensitive low-level switching applications. Its rugged construction and compact size make it reliable for use in control grips, industrial machinery, instruments, computers, and heavy-duty equipment.

The switch is supplied with a nut and panel seal gasket for secure installation. It is RoHS compliant and UL and CSA approved for safety and environmental compliance. Momentary action with SPDT contact configuration. Watertight to IP68 standard.

Blue LED illuminated actuator. 5A contact rating at 28V dc / 115V ac. Black body with threaded mounting. Wide operating temperature range (-55°C to +85°C). Compact size and robust design. Long mechanical and electrical life cycle.

This Otto P9 series push button switch is ideal for industrial, electrical, automation, and control panel applications requiring reliable, waterproof, and long-lasting momentary switches. Explore similar products within the Push Button Switches category on EnvMart for diverse configurations and colors.
