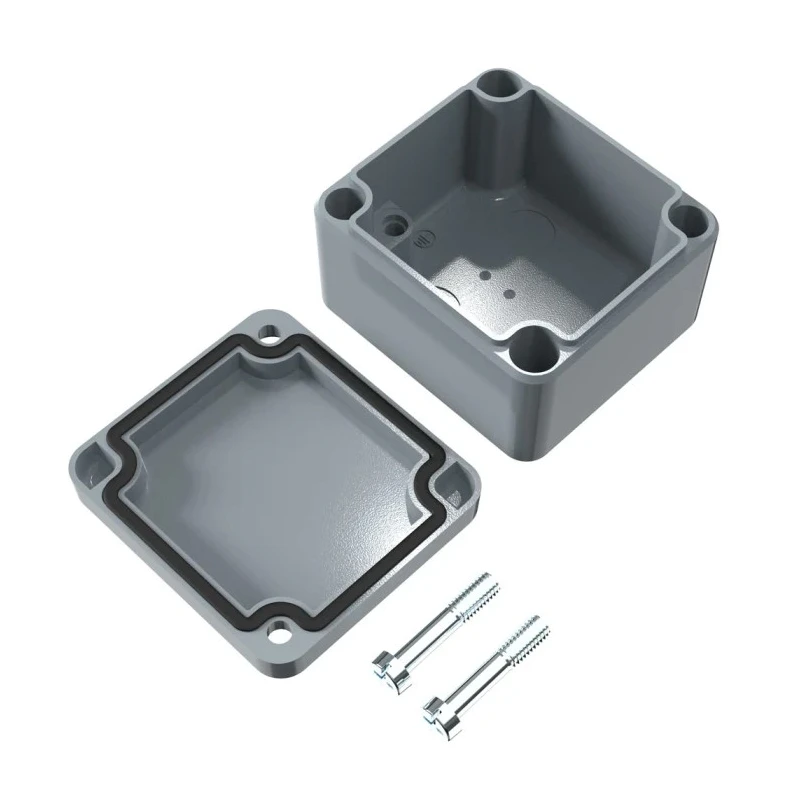

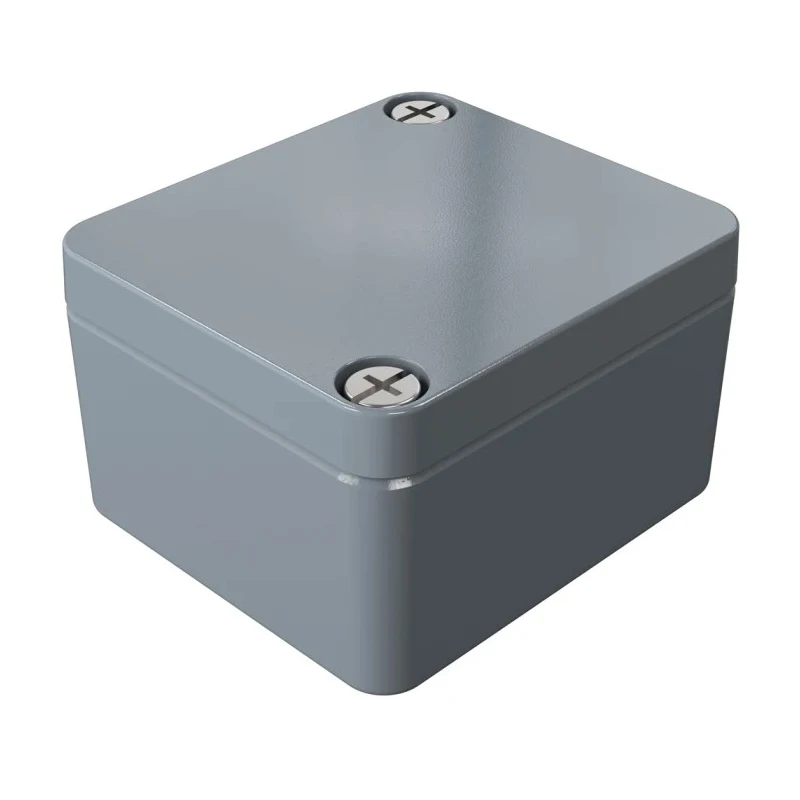

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure IP66 IK09 50 mm x 45 mm x 50 mm 01050503

Rose 01050503 Die Cast Aluminium Enclosure is designed to contain and protect electrical components with high durability and reliable ingress protection. It meets IP66 standards ensuring complete dust tightness and resistance to powerful water jets, making it ideal for both indoor and outdoor industrial settings.

The enclosure features a robust die-cast aluminium body and lid finished in grey, providing excellent corrosion resistance and mechanical strength suitable for harsh environments. Its polyurethane gasket further protects against contaminants, maintaining integrity in demanding applications.

Measuring 50 mm length, 45 mm width, and 50 mm height, this compact enclosure is well suited to installations where space is limited. It can be mounted on DIN rails or mounting plates, delivering flexible mounting options for electrical and electronic assemblies. The inclusion of stainless steel captive screws enhances security by preventing unauthorized lid removal while earthing screws ensure electrical safety.

Certified according to UL 508 for industrial control equipment, this enclosure adheres to recognized safety standards. Its IK09 rating offers high resistance to impact damage, suitable for demanding mechanical conditions. The product supports a broad operational temperature range from -40°C to +90°C, accommodating food and beverage production, chemical industries, mechanical engineering, automation technology, and telecommunications.

Being RoHS compliant and with hazardous area certifications for maritime and UL use, it fits regulatory requirements for various industrial applications. The enclosure does not include knockouts and features an unshielded design, making it suitable for general-purpose electrical enclosure uses.

Comprised of rugged die-cast aluminium for robust corrosion and impact resistance. IP66 rating ensures dust-tight protection and resistance against high-pressure water jets. IK09 impact rating for mechanical shock protection in demanding environments.

Equipped with a grey polyurethane gasket seal to prevent ingress of contaminants. Includes stainless steel captive screws and earthing screws for secure installation and safety. Compact dimensions allow installation in confined spaces or on DIN rails and mounting plates.

Certified to UL 508 standards for industrial control equipment safety. Wide operating temperature range from -40°C to +90°C for versatile application. Unshielded enclosure suitable for general-purpose uses with no knockouts for cable entry.

RoHS compliant and suitable for maritime and UL hazardous area applications.

This Rose Aluminium Standard Series enclosure is ideal for industrial automation systems, electrical installations, and telecommunications where durability, ingress protection, and impact resistance are required. Explore similar industrial Electrical Enclosures and accessories on EnvMart for your professional needs.
