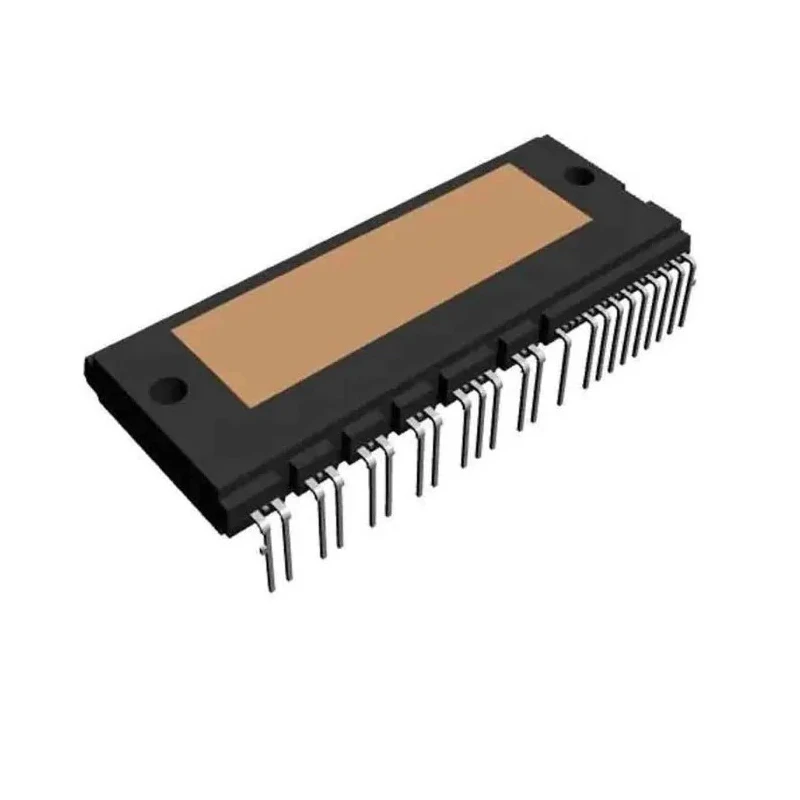

onsemi N-Channel Smart Power Module 50 A 650 V 30-Pin SPM49-CAA Through Hole NFAL5065L4B
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | NFAL5065L4B |
| Mount Type | Through Hole |
| Series | SPM |
| Maximum Operating Temperature | 150°C |
| Package Type | SPM49-CAA |
| Minimum Operating Temperature | -40°C |
| Pin Count | 30 |
| Maximum Continuous Collector Current Ic | 50A |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.8V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 192W |
| Maximum Gate Emitter Voltage VGEO | 15 V |
Key Features
- Integrates optimized gate drive for low EMI and reduced losses.
- Equipped with low-loss, short-circuit rated IGBTs for high efficiency.
- Provides multiple protection features including under-voltage lockout and over-current shutdown.
- Supports temperature sensing and comprehensive fault reporting.
- Designed for use in AC induction, BLDC, and PMSM motor applications.
- Features a through-hole mount with a 30-pin SPM49-CAA package type.
- Compact operation over a temperature range from -40°C to 150°C.
- Maximum power dissipation capacity of 192 W for robust operation.
Product Description
The onsemi NFAL5065L4B is a high-performance N-Channel Smart Power Module designed for industrial and commercial power conversion applications. It delivers a maximum continuous collector current of 50 A and withstands voltages up to 650 V, making it suitable for demanding inverter output stages in AC induction motors, brushless DC (BLDC), and permanent magnet synchronous motors (PMSM).
This module integrates optimized gate drive circuitry to minimize electromagnetic interference (EMI) and energy losses, elevating system efficiency. The built-in IGBTs are low-loss and short-circuit rated, ensuring durability under transient fault conditions.
Protection features incorporated on the module include under-voltage lockouts, over-current shutdown, temperature sensing, and fault reporting capabilities. These integrated safeguards enable reliable operation and simplify system design and diagnostics.
Mounting is facilitated by a through-hole 30-pin SPM49-CAA package, allowing compatibility with various PCB layouts. The device operates consistently across a wide temperature range from -40°C to 150°C, supporting diverse industrial environments.
Additional electrical specifications include a maximum power dissipation of 192 W, a maximum gate emitter voltage of 15 V, and a maximum collector emitter saturation voltage of 1.8 V, which contribute to optimized power handling and switching performance.
This onsemi smart power module finds application in industrial automation, HVAC systems, manufacturing equipment, and motor control solutions where efficient and robust power switching is essential.
Integrates optimized gate drive for low EMI and reduced losses. Equipped with low-loss, short-circuit rated IGBTs for high efficiency. Provides multiple protection features including under-voltage lockout and over-current shutdown.
Supports temperature sensing and comprehensive fault reporting. Designed for use in AC induction, BLDC, and PMSM motor applications. Features a through-hole mount with a 30-pin SPM49-CAA package type. Compact operation over a temperature range from -40°C to 150°C.
Maximum power dissipation capacity of 192 W for robust operation. Maximum gate emitter voltage of 15 V enhances control flexibility. Maximum collector emitter saturation voltage of 1.8 V reduces power loss. Explore comprehensive ranges of Power Modules and semiconductor components on EnvMart for advanced industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current of the NFAL5065L4B is 50 A.
This model can withstand a maximum collector emitter voltage of 650 V.
The NFAL5065L4B has a maximum power dissipation capacity of 192 W.
It operates over a temperature range from -40°C to 150°C.
This model features a through-hole mount with a 30-pin SPM49-CAA package type.
It includes under-voltage lockout, over-current shutdown, temperature sensing, and fault reporting capabilities.
The maximum gate emitter voltage is 15 V, enhancing control flexibility.
The maximum collector emitter saturation voltage is 1.8 V, which helps reduce power loss.
This module is designed for use in AC induction, BLDC, and PMSM motor applications.
It utilizes an N-channel configuration.
The country of origin for this module is India.
This module belongs to the SPM series.
