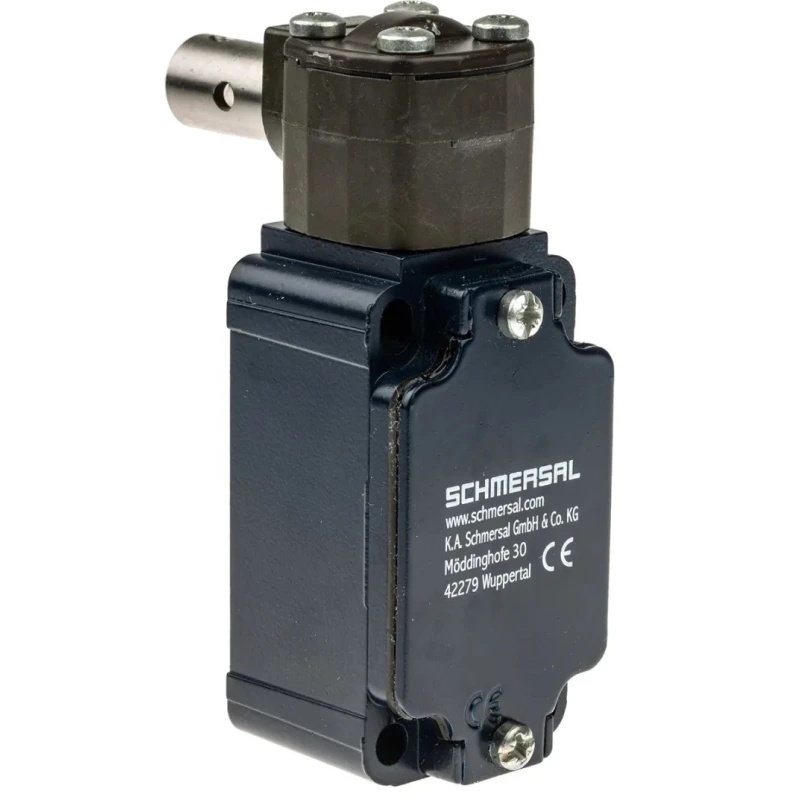

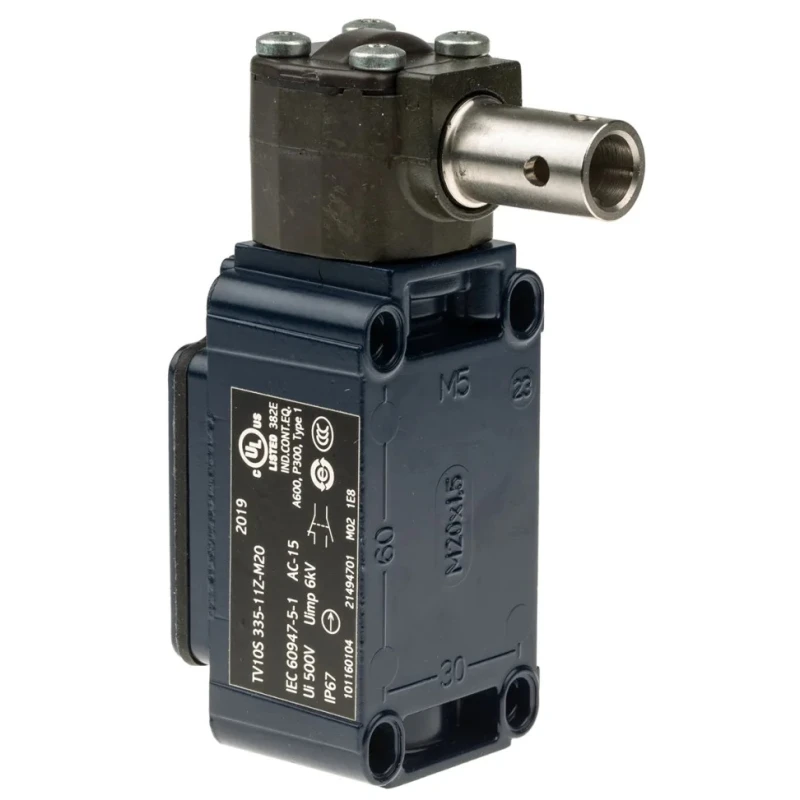

Schmersal Safety Hinge Switch TV10S-335-11Z 1 NO/1 NC 24V DC 4A 230V AC Aluminium Housing IP67

Schmersal TV10S-335-11Z is a high-performance safety hinge switch engineered for industrial safety interlock applications. Featuring a robust aluminium housing, this switch provides durability and corrosion resistance suitable for demanding environments.

It includes a contact configuration of 1 normally open (NO) and 1 normally closed (NC) channel, allowing safe power shutdown on hinged safety gates to protect personnel and machinery from access to hazardous areas.

The switch supports a contact DC voltage of 24V and contact AC voltage of 230V with a contact current rating of 4A, supporting a broad range of equipment needs. The terminal connectivity uses an M12 connector and the cable entry size is M20 x 1.5, ensuring reliable electrical connections.

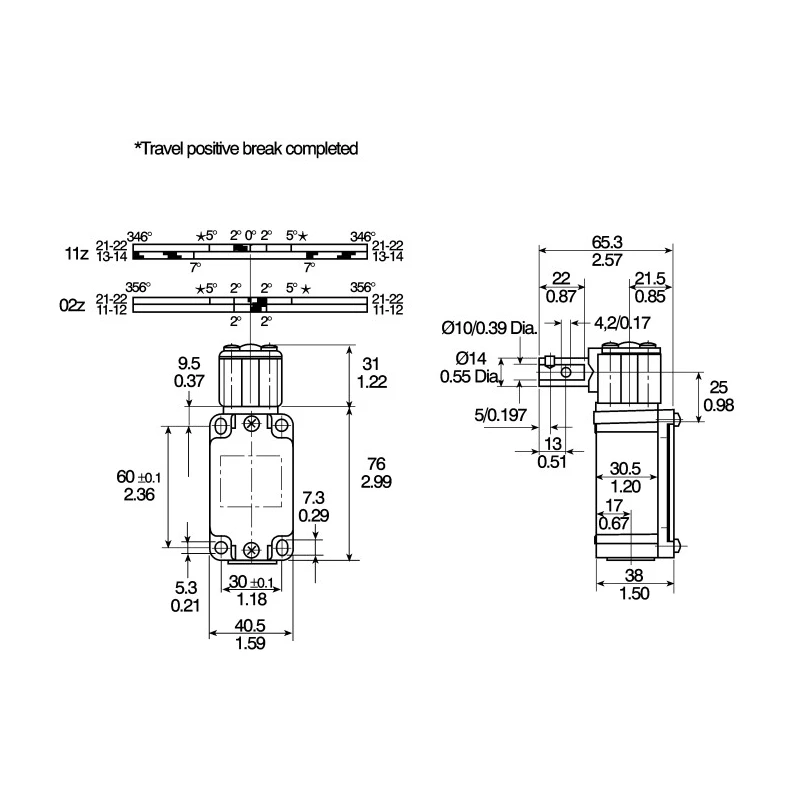

Compact dimensions of 107mm length, 40.5mm width, and 65.3mm height make it suitable for installations where space is limited. Its actuator shaft measures 24mm and offers 360-degree rotation and 90-degree adjustable actuator heads for versatile configuration.

With an IP67 rating, the hinge switch resists ingress of dust and can withstand immersion in water up to 1 meter for 30 minutes, ensuring dependable operation in damp or dusty environments. It operates reliably across a temperature range from -25°C to 70°C and boasts a long mechanical life exceeding one million operations.

Common applications include tool machines, plastics processing, printing, and paper production industries. This switch enhances safety by ensuring equipment power is interrupted whenever the safety gate is opened, preventing access to dangerous machinery.

Robust aluminium housing for industrial durability and corrosion resistance. 1 NO/1 NC contact configuration for safety interlock functions. Rated for 24V DC and 230V AC contact voltages at 4A current. M12 connector terminal and M20 x 1.5 cable entry size for firm connections.

Compact size with flexible actuator shaft and adjustable heads. IP67 rated for dust tight and water immersion protection. Long mechanical lifespan of over one million cycles for reliability. Wide operating temperature range from -25°C to +70°C.

Ideal for use in tool machines, plastics processing, printing, and paper production. Explore the comprehensive range of Schmersal Safety Interlock Switches and components at EnvMart for all your industrial automation safety requirements.
