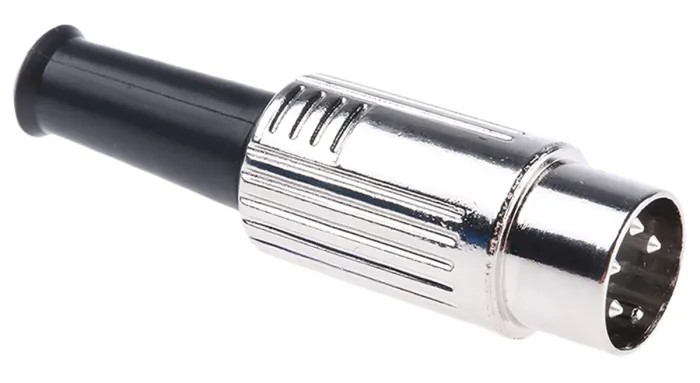

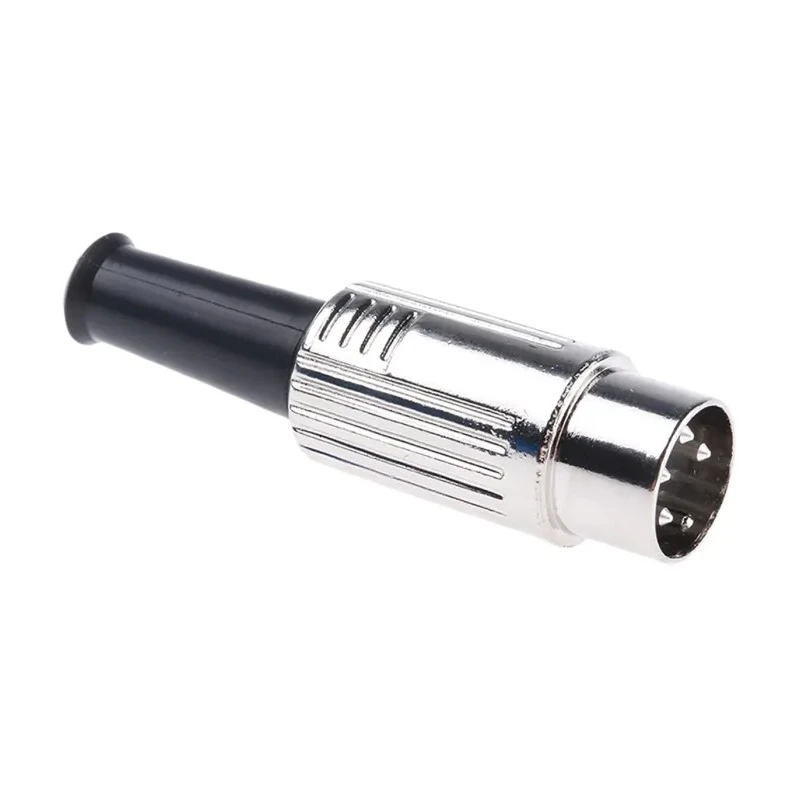

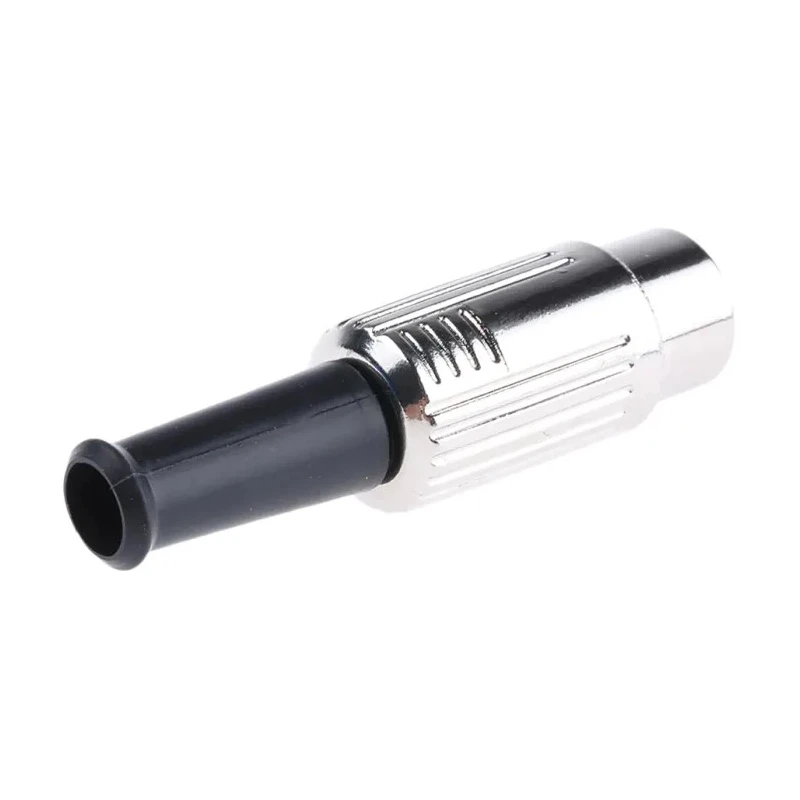

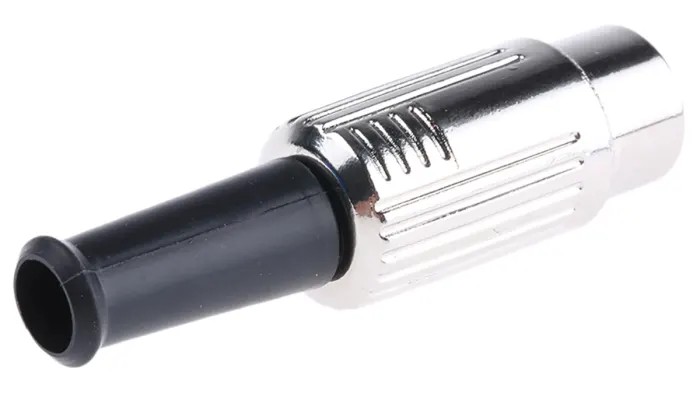

RS PRO 4 Pole Straight Standard DIN Plug 4A 100V AC Push Lock Cable Male 491-134

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 4 Pole Straight Standard DIN Plug 4A 100V AC Push Lock Cable Male 491-134

Name: RS PRO 4 Pole Straight Standard DIN Plug 4A 100V AC Push Lock Cable Male 491-134
Brand: RS PRO
SKU: 163143
Price: 2.95 USD
Availability: InStock



Category DIN Plug Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	100V ac
Brand	RS PRO
Orientation	Straight
Current	4A
Model	491-134
Mount Type	Cable
Housing Material	ABS
Contact Material	Brass
Series	RS PRO
Insulation resistance	100MΩ at 500V DC min
Rating	100V AC 4A max
Voltage Withstand	250V AC for 1 minute
Shield Type	Shielded
Contact Resistance	Pins 30mΩ max. Shell 50mΩ max
Pole Format	4
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Male
Connector Gender	Male
Mating Type	Push Lock
Connector Size	Standard
Set screw and 'T' holder	Steel Nickel Plated
RS PRO 4 Pole Din, 2A, 34 V ac/dc, Male, Cable MountBrand	RS PRO
RS PRO 4 Pole Straight Standard DIN Plug, 4A, 60V ac, Screw, Cable MaleBrand	RS PRO

Key Features

This DIN plug features 4 contacts designed for standard circular connector applications.
It has a cable mount type with a straight orientation and push lock mating type for secure connection.
The housing is made from durable ABS material while the contacts are brass with silver plating for enhanced conductivity.
Rated for 4A current and 100V AC voltage, suitable for various electronic equipment connections.
Features a shielded design and includes a steel nickel plated set screw and 'T' holder for assembly security.
Contact resistance is low with pins rated at 30mΩ max and shell at 50mΩ max ensuring signal integrity.
Insulation resistance is rated at 100MΩ at 500V DC minimum with voltage withstand up to 250V AC for 1 minute.
The robust nickel-plated die-cast zinc alloy shield cover provides excellent durability and shielding.

Product Description

RS PRO 491-134 4 Pole Straight Standard DIN Plug is a high-quality, cable-mounted male connector designed for reliable electrical connections in industrial and electronic environments. Rated for 4A current and 100V AC voltage, this DIN plug features a push lock mating mechanism and a straight orientation, ensuring ease of installation and secure fit.

The connector housing is constructed from tough ABS plastic, providing durability and resistance to environmental factors. The contacts are crafted from brass with silver plating, enhancing conductivity and corrosion resistance. The plug includes a shielded design with a zinc alloy nickel-plated die-cast body that effectively protects against electromagnetic interference.

This DIN plug incorporates a cable clamp and PVC support sleeve, offering strain relief and secure cable retention. The set screw and 'T' holder, made from steel nickel-plated materials, add to the secure assembly of the connector. Contact resistance values are maintained at low levels, promoting efficient signal transfer with minimal loss.

Typical applications of this connector include usage in personal computers, audio and video equipment, power supplies, serial data transmission, and other industrial electronic devices. With compliance to RS PRO quality standards, it combines durability with performance reliability.

This DIN Plug is suitable for electronic, laboratory, and manufacturing industrial applications. It supports a maximum current of 4 Amperes and operates safely at 100 Volts AC. The push lock mating type facilitates ease of use in cable installations.

Shielding ensures reduction of electromagnetic interference during operation. Designed with a straight cable orientation for uncomplicated wiring configurations. ABS housing guarantees resistance against wear and physical impacts.

Brass contacts plated with silver provide excellent electrical conductivity. Voltage withstand rating up to 250V AC for 1 minute assures electrical safety.

The product is sourced from Taiwan, Province Of China, and meets the expected standards of RS PRO connectors. It is ideal for demanding electrical and electronic connector requirements in industrial, commercial, and laboratory settings. Browse EnvMart's comprehensive range of DIN connectors and related electronic components for your technical needs.
