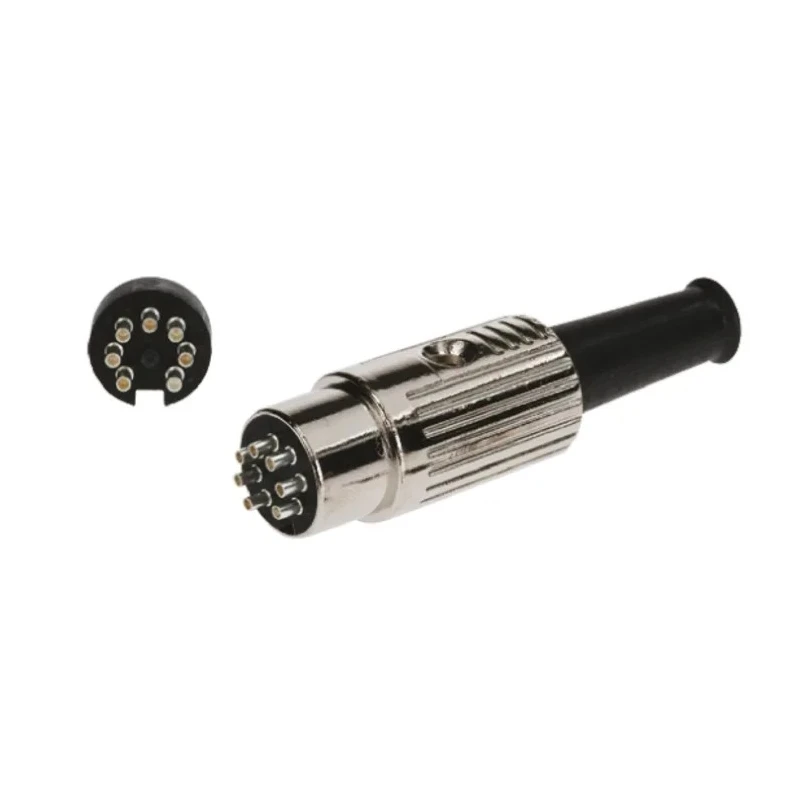

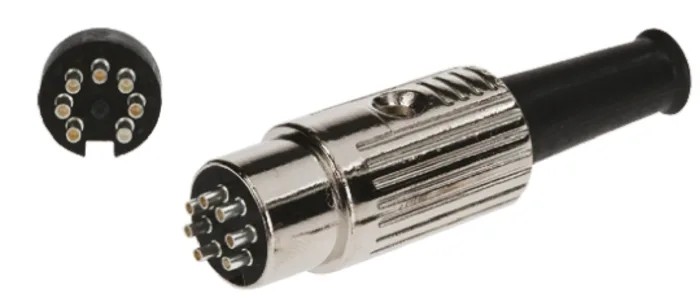

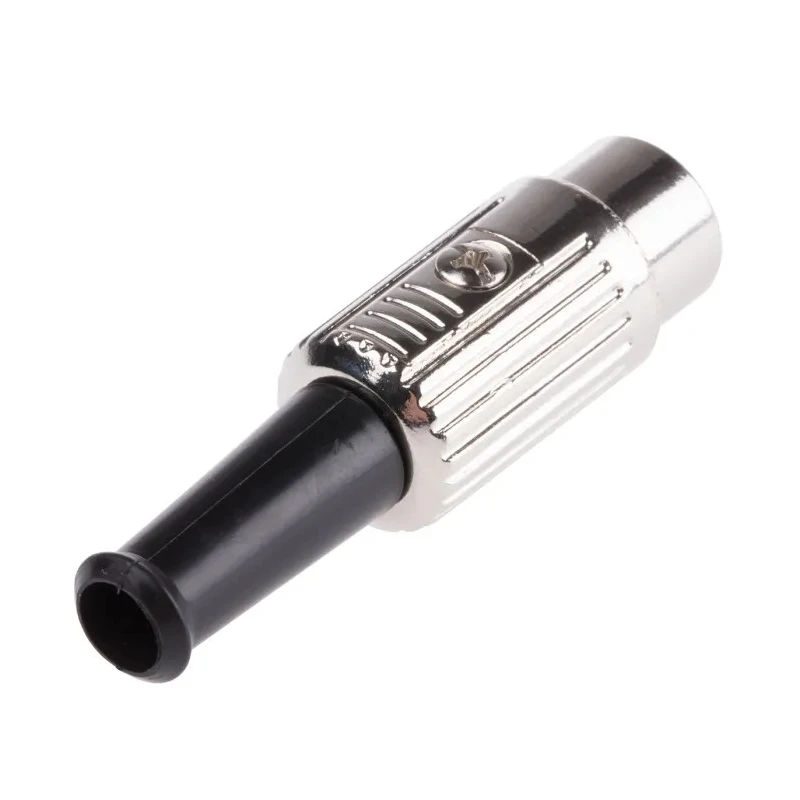

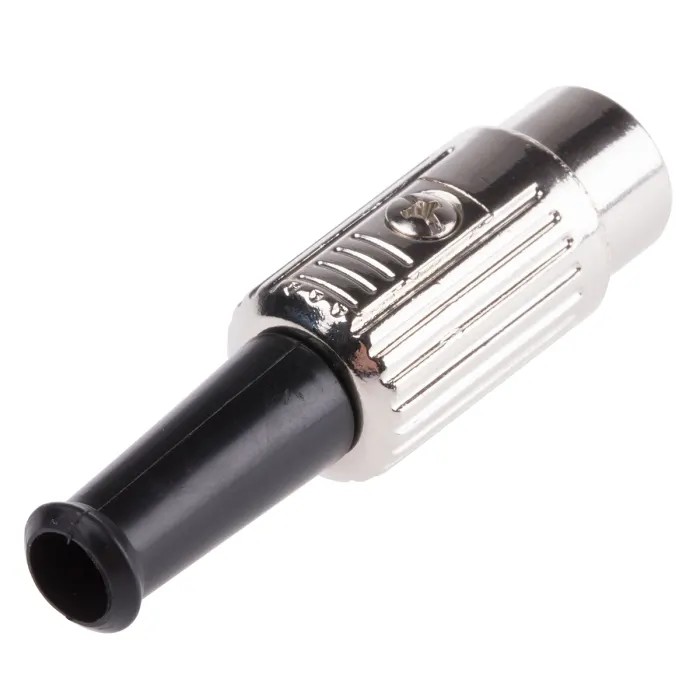

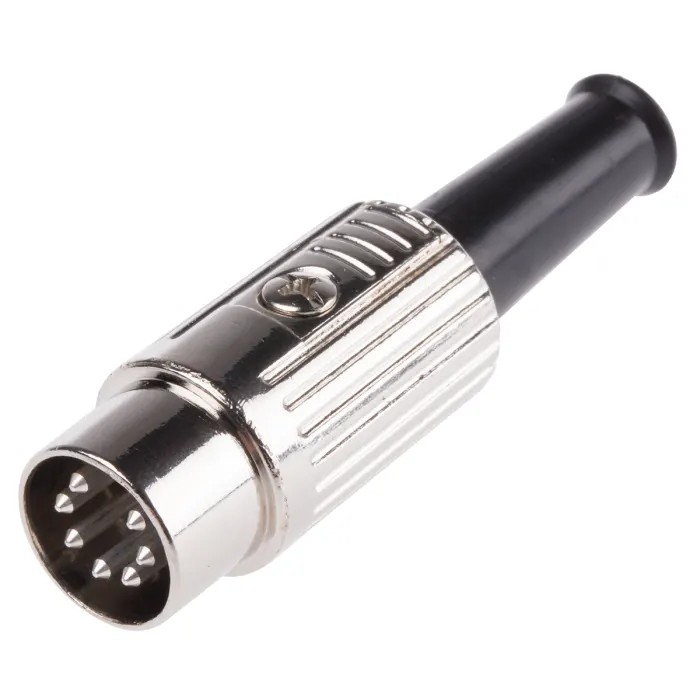

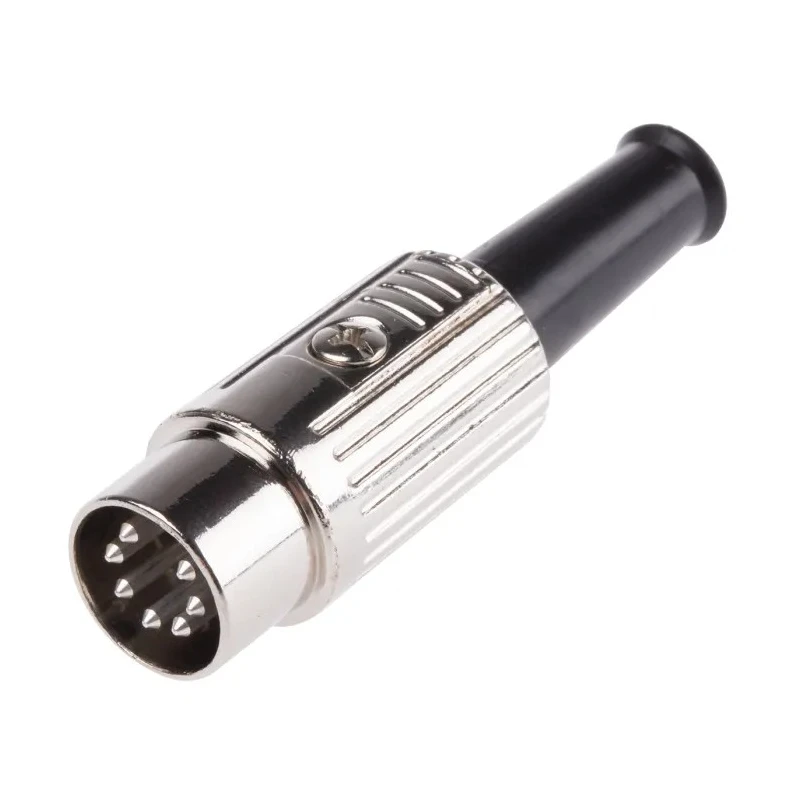

RS PRO 7 Pole Straight Standard DIN Plug, 4A Current, 100V AC Voltage, Cable Mount Male Connector 491-065

RS PRO 491-065 7 Pole Straight Standard DIN Plug is a cable-mounted male connector engineered for optimum electrical performance. Featuring a 7 contact pole format and straight orientation, it is designed to securely connect cables in electronic and electrical systems handling currents up to 4 amperes and voltage ratings of 100V AC. The connector's ABS housing provides robust insulation and mechanical durability, while the silver-plated brass contacts enhance conductivity and resist corrosion.

The shielded zinc alloy cover protects against electromagnetic interference, maintaining signal quality in demanding industrial, laboratory, and manufacturing environments. Its high insulation resistance of 100 megaohms at 500 volts DC and the ability to withstand voltage surges up to 250 volts AC for one minute make it a reliable component for sensitive electrical applications.

This DIN connector incorporates a PVC-supported cable clamp and a steel nickel-plated set screw 'T' holder for secure fixing and strain relief. Its low contact resistance of 30 milliohms on pins ensures efficient power transmission with minimal losses. The male connector gender design allows it to mate with corresponding female connectors in a standard DIN connector interface.

Typical industrial applications include use in electronic instruments, power connectors, audio/video equipment, and data communication systems where dependable, shielded cable connections are critical. The product is manufactured in Taiwan under stringent quality standards, ensuring consistent and long-lasting performance.

Features a robust ABS housing material providing durability and electrical insulation. Equipped with silver-plated brass contacts for enhanced conductivity and corrosion resistance. Includes a shielded design with zinc alloy shield cover ensuring signal integrity.

Rated for 100V AC and 4A maximum current, suitable for various electronic applications. Configured with 7 contact poles in a straight orientation for reliable connectivity. Designed with a cable clamp and PVC support sleeve for secure cable mounting.

Voltage withstand capability up to 250V AC for 1 minute ensuring safety and standards compliance. Contact resistance of pins is 30 milliohms max and shell 50 milliohms max for minimal power loss. High insulation resistance of 100 megaohms at 500V DC ensures safe electrical isolation.

Male connector gender with set screw and 'T' holder made of steel nickel plated for mechanical strength. Explore the wide range of RS PRO connectors and components at EnvMart to find reliable solutions for your industrial, laboratory, and commercial electrical needs.
