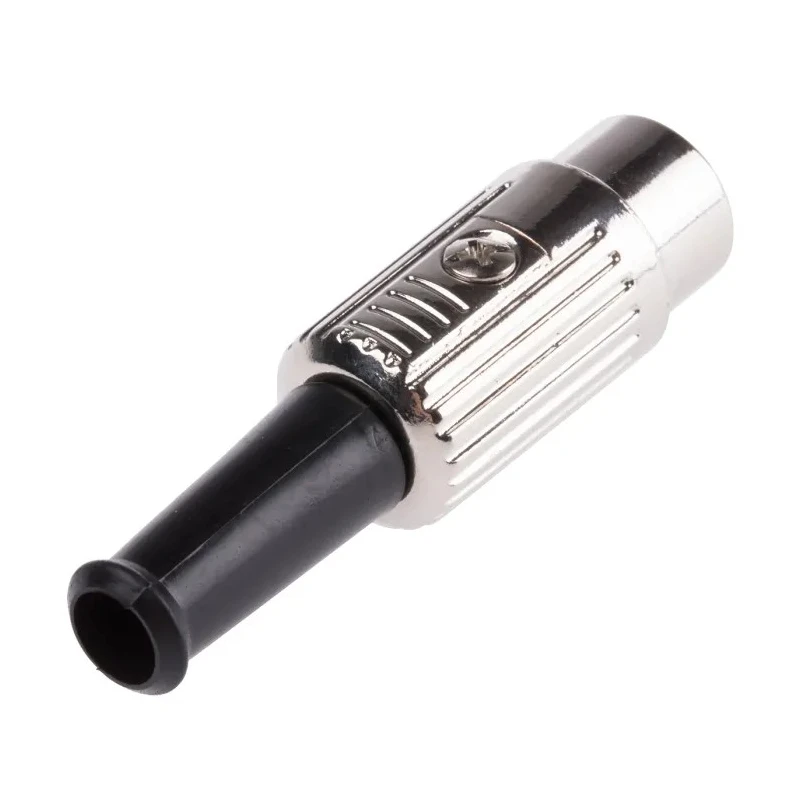

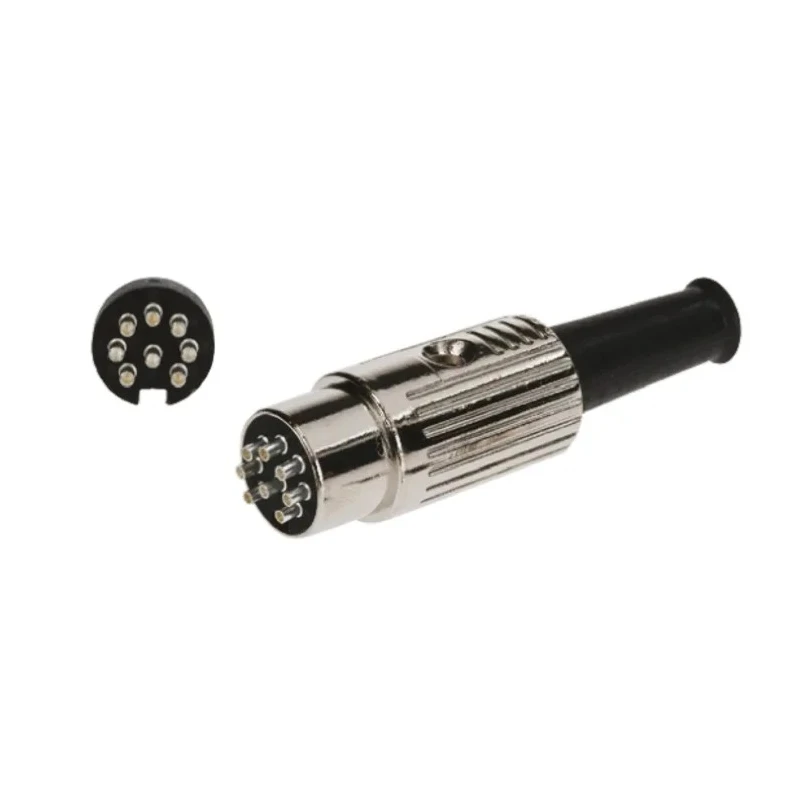

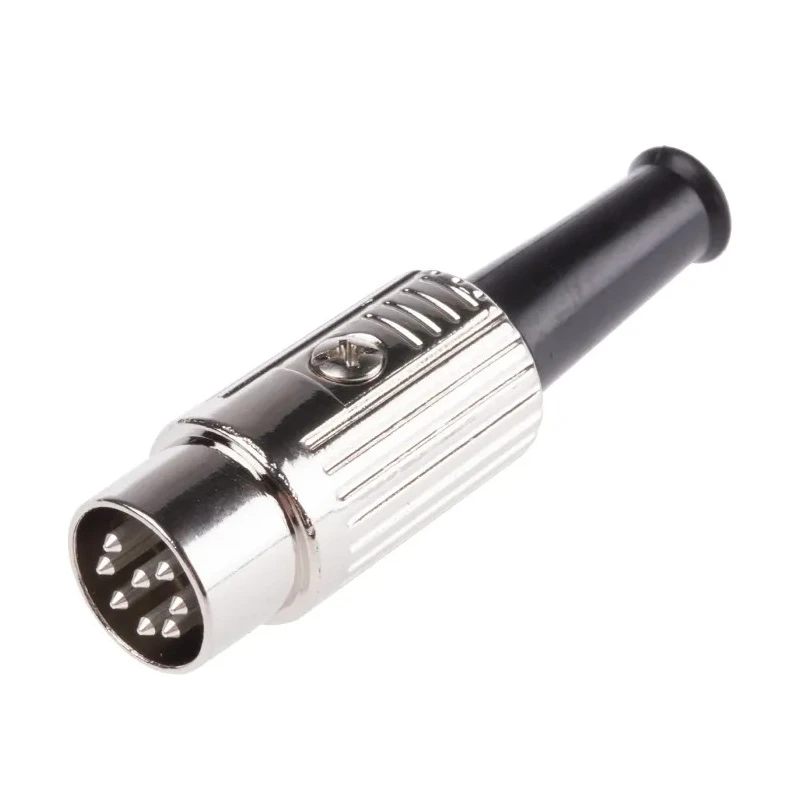

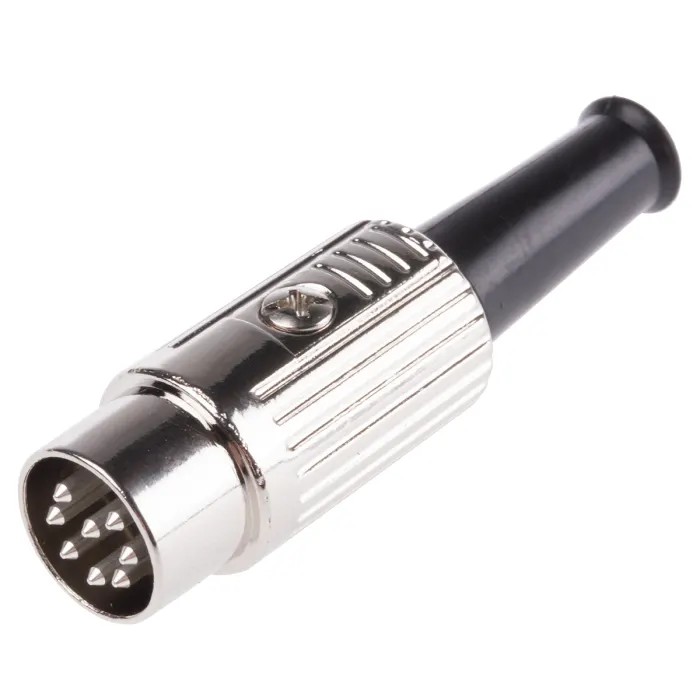

RS PRO 8 Pole Straight Standard DIN Plug 8 Contacts 4A Current 100V AC Voltage Cable Mount Male Screw Connector 491-061

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 8 Pole Straight Standard DIN Plug 8 Contacts 4A Current 100V AC Voltage Cable Mount Male Screw Connector 491-061

Name: RS PRO 8 Pole Straight Standard DIN Plug 8 Contacts 4A Current 100V AC Voltage Cable Mount Male Screw Connector 491-061
Brand: RS PRO
SKU: 163136
Price: 4.6 USD
Availability: InStock



Category DIN Plug Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	100V ac
Brand	RS PRO
Orientation	Straight
Current	4A
Model	491-061
Mount Type	Cable
Housing Material	ABS
Contact Material	Brass
Series	RS PRO
Insulation resistance	100MΩ at 500V DC min
Rating	100V AC 4A max
Voltage Withstand	250V AC for 1 minute
Shield Type	Shielded
Contact Resistance	Pins 30mΩ max. Shell 50mΩ max
Pole Format	8
Contact Plating	Silver
Number of Contacts	8
Contact Gender	Male
Connector Gender	Male
Mating Type	Screw
Connector Size	Standard
Set screw and 'T' holder	Steel Nickel Plated
RS PRO 8 Pole Din, 2A, 34 V ac/dc, Male, Cable MountBrand	RS PRO
RND, RND 8 Pole Straight DIN Connector, 1A, 100V, CableBrand	RND

Key Features

Features 8 silver-plated brass contacts to ensure optimal electrical conduction.
Equipped with a nickel-plated zinc alloy shield cover and an ABS housing for durability.
Uses a screw-type mating mechanism for secure attachment.
Designed with a straight cable orientation and shielded cable mounting.
Rated for a maximum current of 4A and voltage of 100V AC.
Offers insulation resistance of 100MΩ at 500V DC minimum.
Ideal for connection applications involving audio, video, power, and serial data transmission.

Product Description

RS PRO 491-061 8 Pole Straight Standard DIN Plug is a premium-quality male connector designed for cable mounting with a screw mating mechanism, rated for 4 amperes current and 100 volts AC voltage. The connector features eight silver-plated brass contacts housed within a durable ABS chassis, supported by a zinc alloy nickel-plated shield cover that enhances shielding and mechanical protection.

This DIN plug provides reliable and secure connections in industrial and electronic applications including personal computers, audio and video devices, power supplies, and serial data transfer systems. Its straight cable orientation and shielded design minimize signal interference to ensure secure electrical performance. The insulation resistance of 100MΩ at 500V DC and voltage withstand rating of 250V AC for 1 minute guarantee operational safety and robustness.

The connector includes a steel nickel-plated set screw and 'T' holder for strong cable clamping, enhancing strain relief and mechanical stability. RS PRO connectors are globally recognized for their quality and consistency, making this product suitable for demanding industrial, laboratory, and manufacturing environments looking for reliable circular DIN connectors.

Eight silver-plated brass contacts for superior electrical conductivity. Robust ABS housing with nickel-plated zinc alloy shield cover. Screw mating type for secure and reliable connections. Supports 4A current and 100V AC voltage.

High insulation resistance and voltage withstand ratings ensure safety. Shielded cable mount with straight orientation for minimized interference.

This RS PRO DIN Plug supports various application needs across electronics, industrial controls, and instrumentation fields. It is part of a comprehensive RS PRO DIN connector range, offering versatility and trusted performance across configurations and mounting types.
