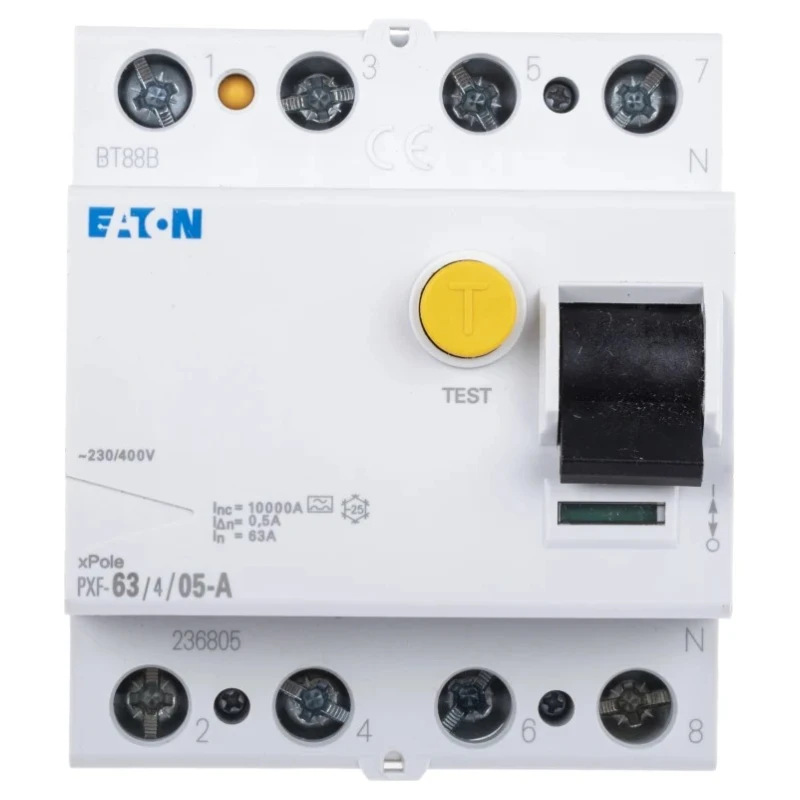

Eaton PXF-A Series Residual Current Circuit Breaker 63A 3+N-Pole 500 mA Type A 630A Breaking Capacity 236805 PXF-63/4/05-A

Eaton 236805 PXF-63/4/05-A Residual Current Circuit Breaker (RCCB) is a high-quality device designed to protect electrical installations from earth leakage faults by quickly disconnecting power supply in case of fault currents.

This 63A rated device features a 3+N pole configuration with a type A tripping characteristic, making it suitable for systems with alternating and pulsating direct currents up to 6 mA. It offers a break capacity of 630A at 400V AC with instantaneous break time to swiftly mitigate electrical hazards.

The RCCB mounts easily on standard DIN rails and includes quick connect terminals for simplified wiring. Its compact dimensions (70mm width, 80mm height, 45mm depth) make it suitable for integration in commercial and residential electrical panels.

Eaton's PXF-A series RCCBs comply with IEC/EN 61008 and RoHS standards, ensuring safety, reliability, and environmental friendliness. The device provides double terminal connections with lift/jaw top and bottom, allowing flexible rail arrangements and optimizing terminal space even with busbar mounting.

Additional features include real contact position display, triggered state signaling via auxiliary contacts, and compatibility with P-series busbars. The lever reset actuator permits easy manual resetting post-trip, enhancing usability.

Industrial and commercial applications include electrical protection in installations exposed to earth faults and overheating risks, ensuring personnel safety and reducing risk of electrocution. Ideal for use in building wiring installations, factories, and residential setups requiring earth leakage detection.

The device is manufactured in Romania, reflecting Eaton's commitment to quality control and product excellence. It is a dependable component in electrical safety systems compliant with DIN VDE 0664 part 10 requirements.

Designed for commercial and residential electrical circuit protection. Features instantaneous break time ensuring fast disconnection during faults. Type A tripping characteristic suitable for pulsating direct currents up to 6 mA.

Mounts on DIN rail with quick connect terminal type for easy installation. Compact design with 70mm width, 80mm height, and 45mm depth. Equipped with lever reset actuator for straightforward manual reset after trip. Conforms to IEC/EN 61008 and RoHS standards for quality and safety compliance.

Includes real-time contact position and triggered state indication through signal contact. Compatible with P-series busbar system and supports retrofittable auxiliary switch. Manufactured in Romania ensuring consistent product quality.
