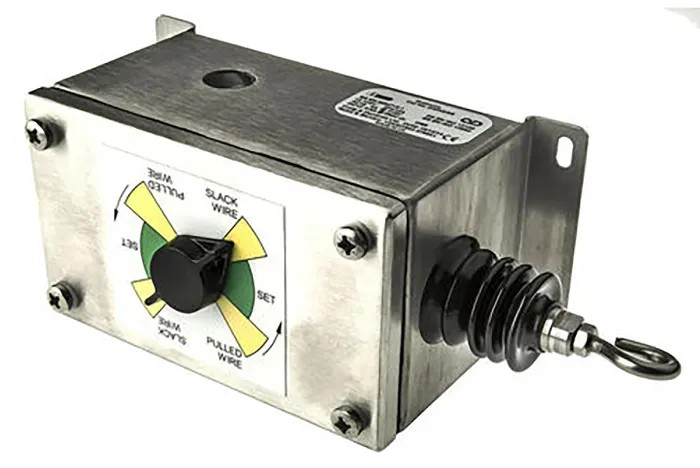

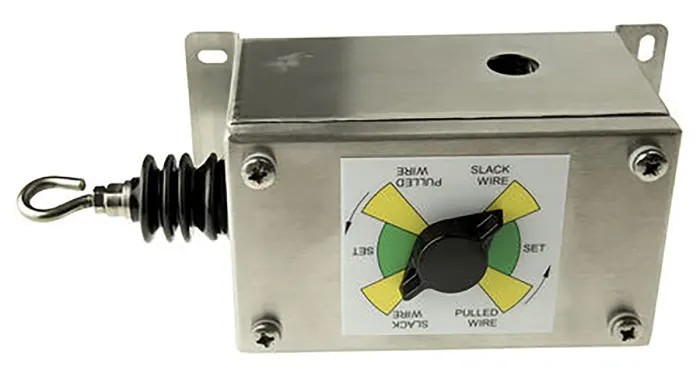

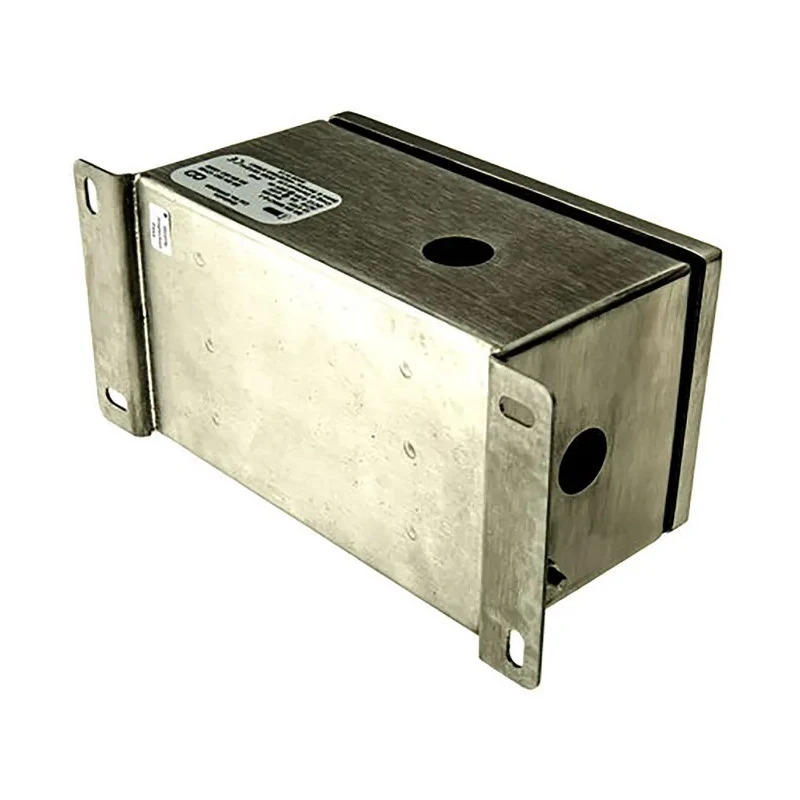

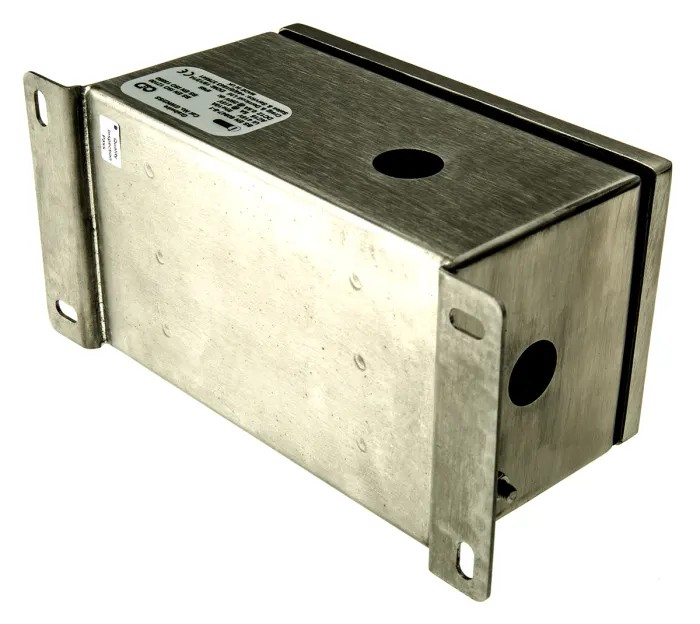

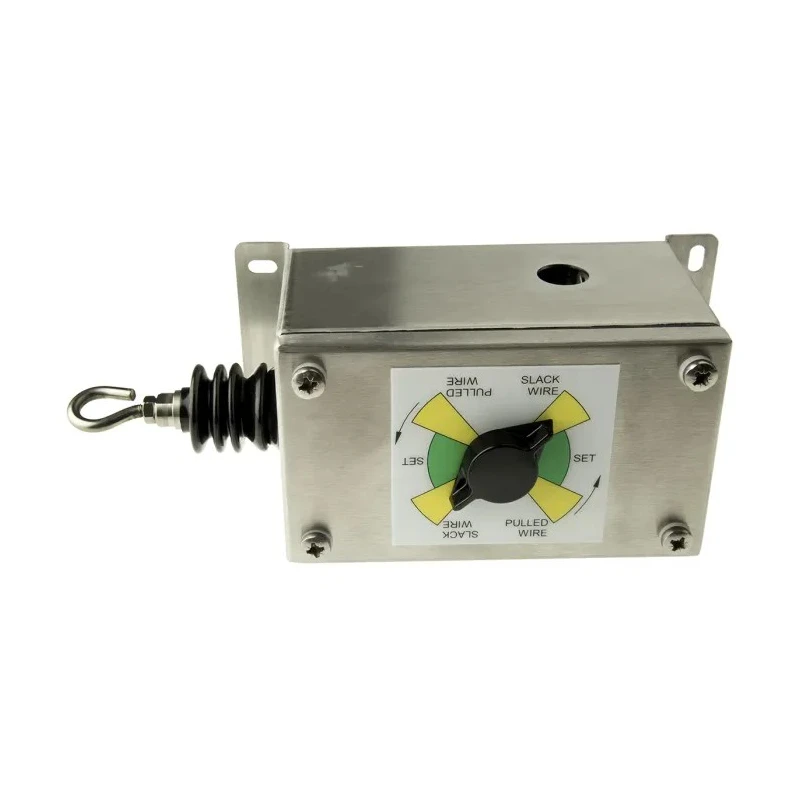

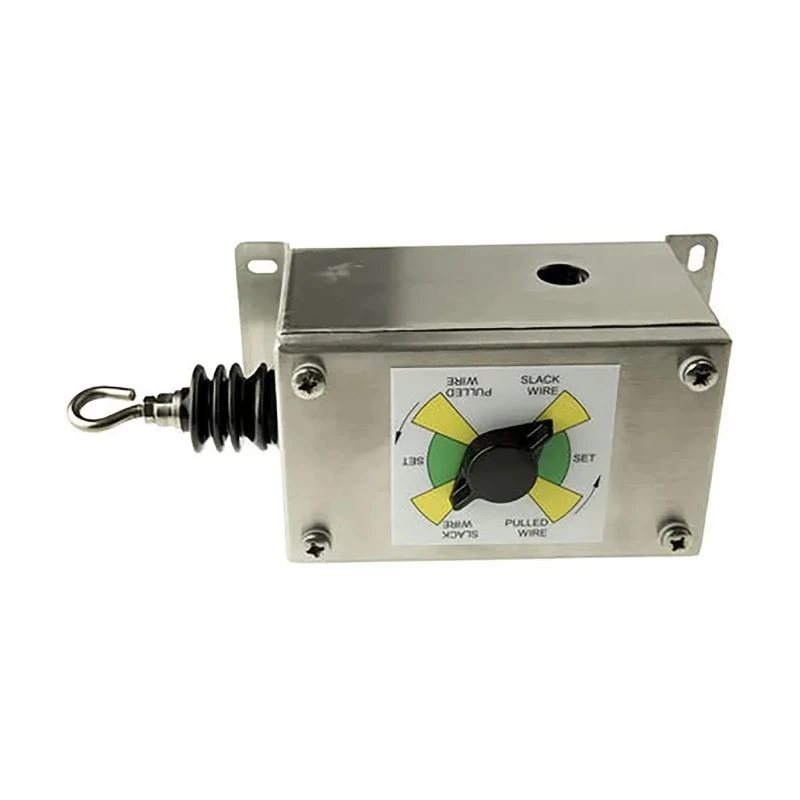

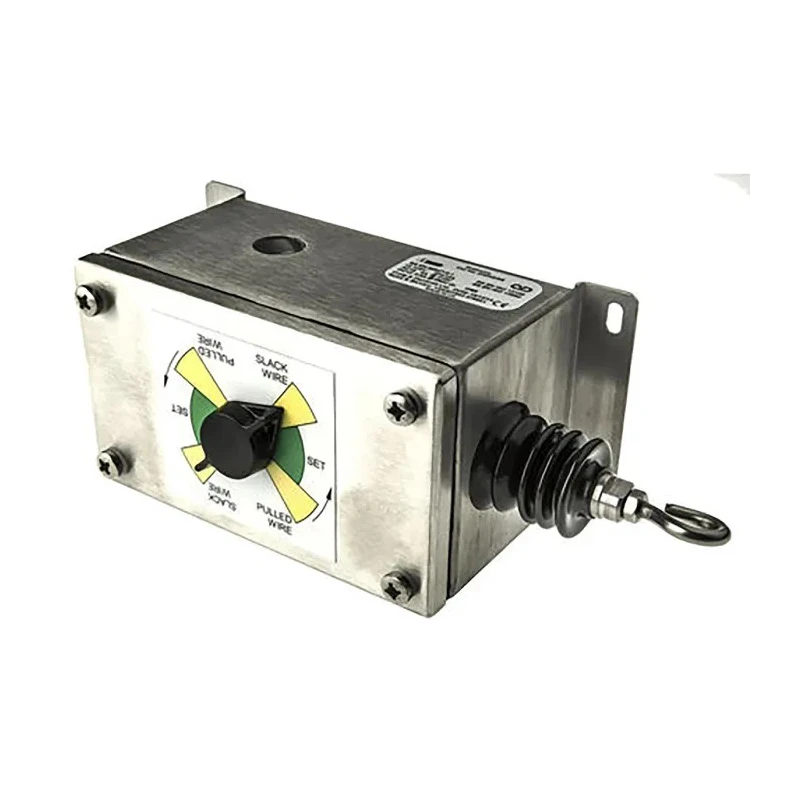

Craig & Derricott GWN Rope Pull Switch 209 mm, Straight, 2 NO/2 NC, Stainless Steel, IP65, 16A Contact Current GWN2/SS

Craig & Derricott GWN2/SS Rope Pull Switch 209 mm, Straight, 2 NO/2 NC is a high-quality safety switch designed for industrial automation and personnel protection on conveyor belts and moving machinery. With a stainless steel housing and IP65 ingress protection, it ensures durability and reliable operation in harsh industrial environments.

The switch employs a grab wire mechanism, enabling workers to stop machinery instantly by pulling the rope in case of emergency. It contains 2 normally open and 2 normally closed contacts rated up to 16A, suitable for AC voltages up to 415V and DC control circuits at 24V.

The device has a robust mechanical life of up to 1,000,000 operations and includes reset and emergency stop buttons for controlled operation and safety compliance. Sealed M20 cable entries protect internal components from dust and moisture ingress.

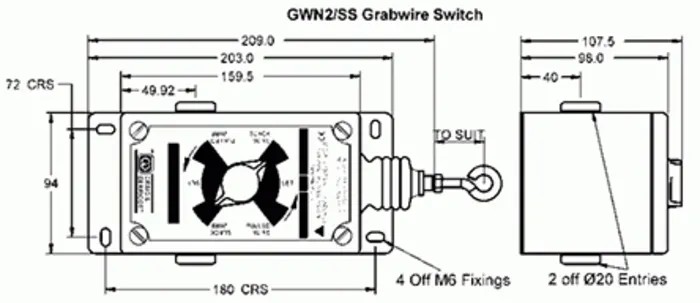

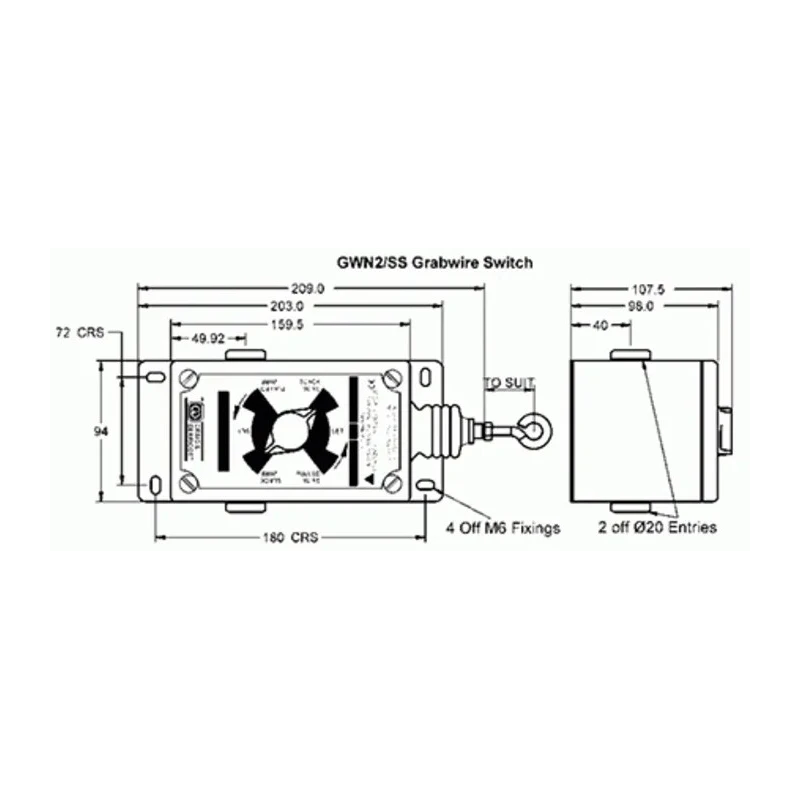

Measuring 209 mm in length, 94 mm in width, and 107.5 mm in depth, the switch is engineered for straightforward mounting in a straight orientation. It is ideal for applications such as conveyors, assembly lines, transfer lines, packaging machinery, and various process equipment within industrial manufacturing, material handling, and safety control systems.

Manufactured in the United Kingdom under standards ISO and EN, this grab wire switch supports installation of rope runs up to 100 meters with common wiring and dual head heads for maximum operator safety. It complies with BS 5304 standard recommendations for grab wire safety switches.

The switch is constructed with stainless steel housing for durability and corrosion resistance. IP65 rating ensures protection from water jets and dust ingress. Includes 2 normally open (NO) and 2 normally closed (NC) contacts for flexible control applications.

Equipped with reset and emergency stop push buttons for safe operation. Mechanical life rated at one million operations ensures long-term reliability. The dimensions allow easy integration into existing conveyor safety systems.

Sealed M20 cable entries prevent moisture and dust ingress. Common wiring with two heads simplifies installation over long rope runs. Compliant with BS EN 60947-5-1, BS EN 60947-5-5, and BS 5304 standards.

Craig & Derricott products offer reliable safety solutions tailored for industrial automation, manufacturing, and material handling sectors. Explore more rope pull switches and safety components in the Rope Pull Switch category on EnvMart.
