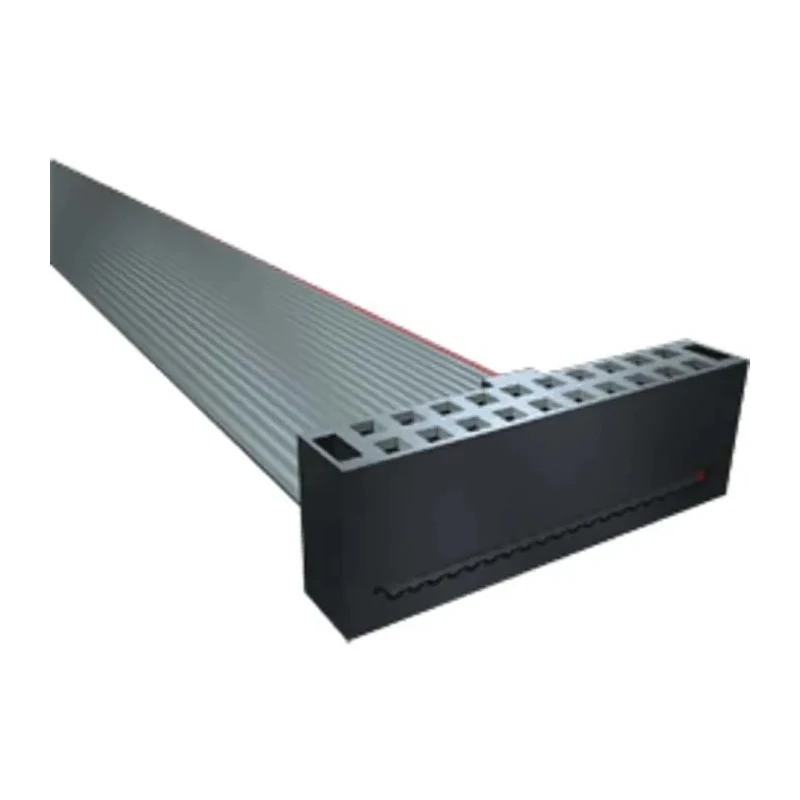

Samtec HCSD Series Straight Surface PCB Socket, 8-Contact, 2 Row, 2.54 mm Pitch, Solder Termination HCSD-08-01-N
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 600V ac |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | HCSD-08-01-N |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | HCSD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | IDC Socket |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Cable |
Key Features
- Suitable for surface mount applications with solder termination method.
- Houses 8 female contacts made from phosphor bronze with gold plating for enhanced conductivity.
- Supports up to 3.2A current and 600V AC voltage rating.
- Constructed from black liquid crystal polymer housing for durability and temperature tolerance.
- Operates reliably across a temperature range of -20°C to 105°C.
- Complies with RoHS standards for environmental safety.
- Ideal for automation control systems and compact electronic device circuit connections.
- Designed for high-frequency signal power supply distribution.
Product Description
Samtec HCSD-08-01-N PCB Socket is a high-quality surface mount IDC socket designed for seamless connectivity in demanding electronic applications. Featuring an 8-contact, 2-row configuration and a standard 2.54 mm pitch, this connector ensures precise board-to-cable interfacing while simplifying assembly processes with its straight orientation and solder termination.
The socket housing is made from a robust black liquid crystal polymer, offering excellent mechanical strength and high-temperature resistance up to 105°C. The contacts are constructed from phosphor bronze and plated with gold to provide exceptional conductivity and corrosion resistance, supporting currents up to 3.2A and voltage ratings of 600V AC for reliable performance.
Certified to meet RoHS standards, the HCSD series socket is compliant with environmental regulations, making it suitable for green electronics manufacturing. Its operating temperature range from -20°C to +105°C allows it to perform reliably under varying thermal conditions.
This PCB socket is widely used in automation control systems, electronic devices requiring compact and reliable circuit connections, and power supply distribution for high-frequency signals. Its surface mount technology reduces assembly time and ensures a secure connection within densely packed printed circuit board layouts.
Surface mount friendly with solder termination for secure installation. 8 female gold-plated contacts arranged in 2 rows with 2.54 mm pitch. Liquid crystal polymer housing ensures durability and heat resistance. Robust electrical ratings: 3.2A current and 600V AC voltage support.
Wide operational temperature range from -20°C to 105°C. RoHS compliant for environmental and safety standards. Ideal for automation, electronic devices, and power distribution. Explore more products in the PCB Sockets category at EnvMart to find complementary components and solutions for your electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 3.2A.
This model has a voltage rating of 600V AC.
The contacts in this PCB socket are arranged with a pitch of 2.54 mm.
The housing is made from liquid crystal polymer, and the contacts are constructed from phosphor bronze with gold plating.
It operates reliably across a temperature range of -20°C to 105°C.
Yes, it complies with RoHS standards for environmental safety.
This socket features 8 female contacts arranged in 2 rows.
It uses a solder termination method for secure installation.
The orientation of this model is straight.
It is ideal for automation control systems and compact electronic device circuit connections.
The connector system is designed for board-to-cable connections.
The country of origin for this PCB socket is India.
