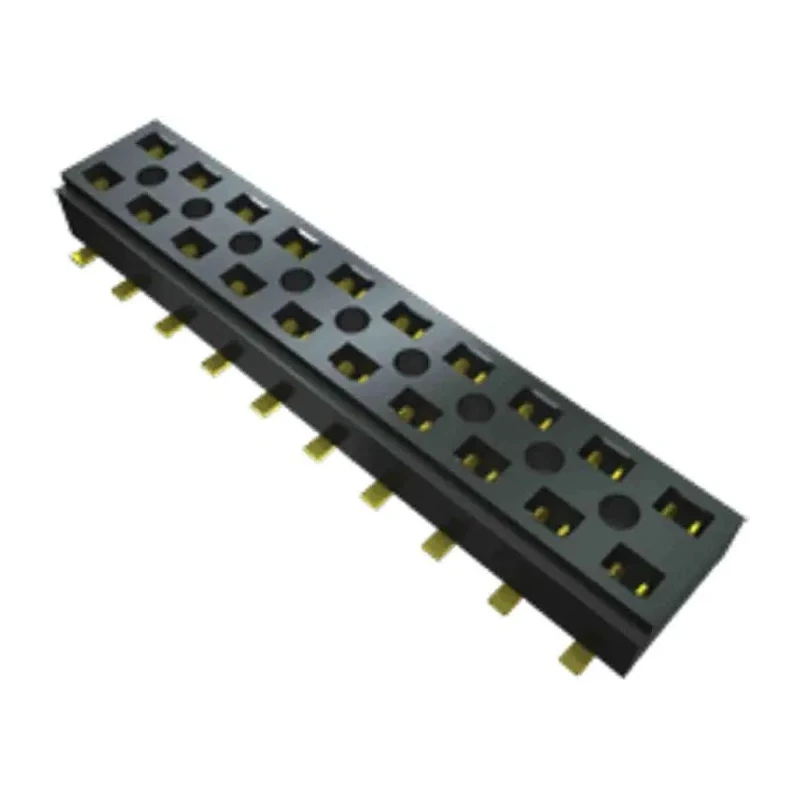

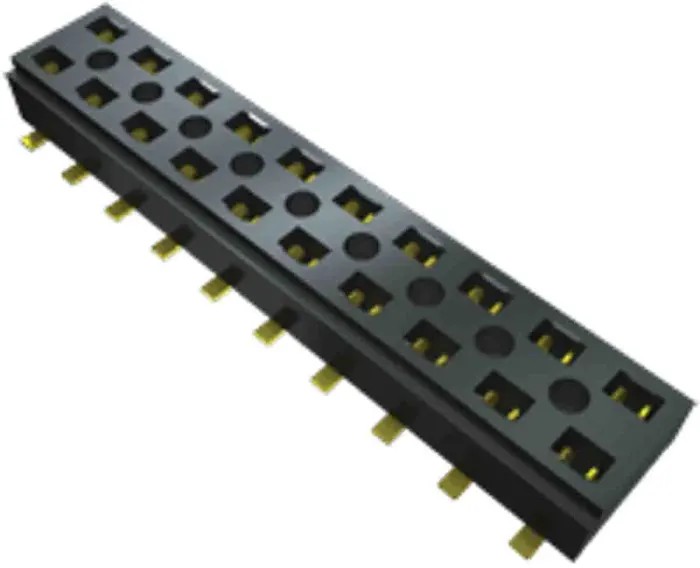

Samtec CLT Series Vertical Surface PCB Socket 40-Contact 2 Row 2 mm Pitch Solder CLT-120-01-F-D

Name: Samtec CLT Series Vertical Surface PCB Socket 40-Contact 2 Row 2 mm Pitch Solder CLT-120-01-F-D
Brand: Samtec
SKU: 162261
Price: 5.63 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Vertical
Current	4.1A
Model	CLT-120-01-F-D
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	CLT
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	40
Connector System	Board-to-Board
Insulator Material	black liquid crystal polymer
Operating temp range	-55°C to +125°C

Key Features

Constructed with black liquid crystal polymer housing for durability.
Features phosphor bronze contacts plated with gold for reliable electrical performance.
Designed for surface mount technology and vertical orientation.
Supports a maximum current rating of 4.1 A.
Operates reliably within a temperature range of -55°C to 125°C.
Offers solder termination for secure connections.
Part of the CLT series with low profile dual wipe socket design.
Suitable for double row configurations up to 100 pins.

Product Description

Samtec CLT-120-01-F-D is a high-quality CLT series vertical surface PCB socket engineered for durable board-to-board connections. This 40-contact socket features two rows with a 2 mm pitch and is designed for robust surface mount applications.

Its black liquid crystal polymer housing offers structural stability while the phosphor bronze contacts with gold plating ensure excellent conductivity and resistance to corrosion. The socket supports a maximum current of 4.1 A and can operate across a wide temperature range from -55°C to 125°C, making it suitable for demanding industrial and electronic environments.

The dual wipe design allows for top and bottom entry pass-through options, supporting configurations with up to 100 pins. Termination is done via solder, ensuring secure and stable mounting onto the PCB.

Durable black liquid crystal polymer housing. Phosphor bronze contacts with gold plating for high conductivity. 40 contacts configured in 2 rows with 2 mm pitch. Surface mount type with vertical orientation. Solder termination for reliable connection.

Max current capacity of 4.1 A. Operating temperature range: -55°C to 125°C. RoHS compliant, ensuring environmental safety.

This PCB socket is ideal for electronics manufacturing, industrial applications, telecommunications equipment, and other settings requiring reliable board-to-board connections. Its compact and robust design lends itself well to modern high-density PCB assemblies.
