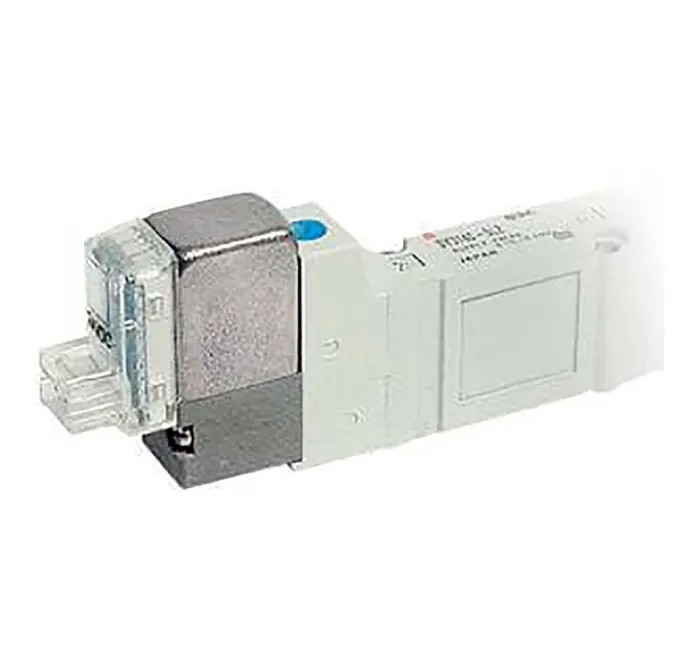

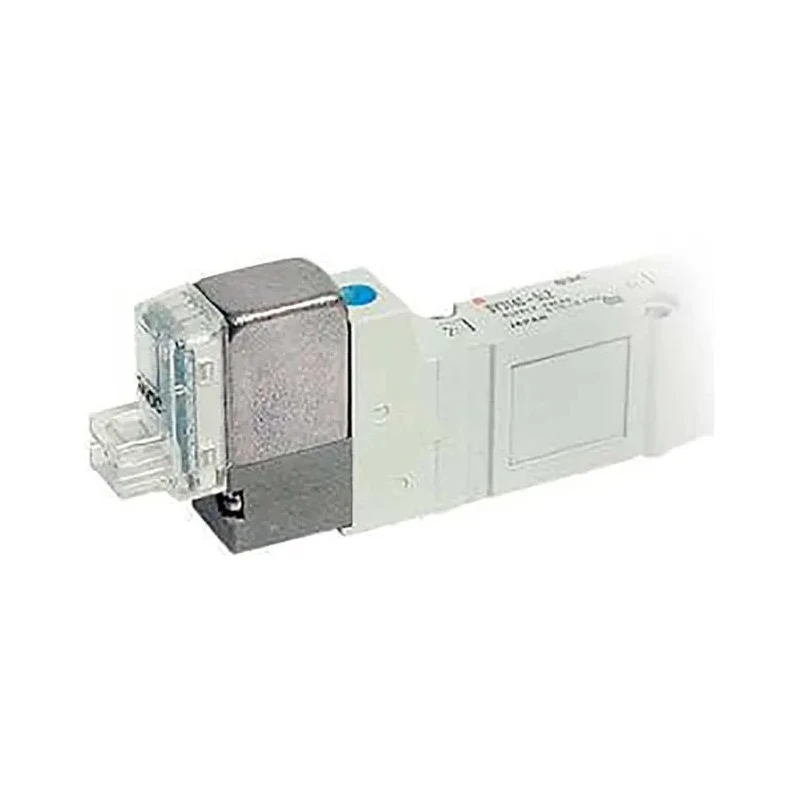

SMC Solenoid Pilot Valve Series SY7000, G 1/4 Port, Aluminium Body, Double Acting, 0.7 MPa Pressure, 1130 L/min Flow

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Pilot Valve Series SY7000, G 1/4 Port, Aluminium Body, Double Acting, 0.7 MPa Pressure, 1130 L/min Flow



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	110mm
Model	SY7000
Width	31.5mm
Mount Type	Body Ported, Base
Series	SY7000
Number Of Ports	5
Maximum Operating Temperature	50°C
Thread Size	1/4 in
Port Type	One-Touch Fitting
Number of Positions	2
Port Size	G 1/4
Seal Material	Halogenated Nitrile Rubber
Minimum Operating Temperature	-10°C
Operating pressure range	-100 kPa to 0.7
Fluid	Air
Maximum Flow Rate	1130L/min
Connection Thread Standard	G, NPT, Rc, NPTF
Minimum Pilot Pressure	0.1MPa
Valve Function	Double Acting, Closed, Pressure Centre, 1 Action, Exhaust
Ambient and fluid temperature [°C]	-10 to 50 (No freezing)
Coil rated voltage [DC]	24, 12 V

Key Features

Designed for air fluid with operating pressure range from -100 kPa to 0.7 MPa.
Operates reliably within ambient and fluid temperatures from -10 to 50°C without freezing.
Features multiple connection thread standards including G, NPT, Rc, and NPTF.
Double acting valve function with closed pressure centre and exhaust action for precise control.
Maximum flow rate of 1130 L/min suitable for high-efficiency pneumatic systems.
Body material is aluminum, providing lightweight durability and corrosion resistance.
Mount type includes body ported and base mounting for flexible installation.
Compact dimensions with 110 mm height and 31.5 mm width ensure easy integration.

Product Description

SMC SY7120-5Y-02F-Q Solenoid Pilot Valve from the SY7000 Series is engineered for pneumatic and fluid power industrial applications that require reliable and precise control of air flow. This valve operates with air fluid and supports a wide operating pressure range from -100 kPa vacuum to 0.7 MPa maximum pressure. It supports multiple connection thread standards including G, NPT, Rc, and NPTF to ensure compatibility with various piping systems.

The valve features a double acting function with a closed pressure centre, 1 action, and exhaust capability. Its robust aluminium body construction provides durability, corrosion resistance, and lightweight benefits, making it suitable in demanding industrial environments such as manufacturing, automation, HVAC, and laboratory fluid control systems.

Operating temperatures span from -10°C to 50°C, ensuring performance in a range of ambient and fluid conditions without risk of freezing. The valve has 5 ports and 2 positions providing versatile flow control configurations. It offers a maximum flow rate of 1130 L/min, supporting efficient pneumatic system operation.

Compact in size, the valve measures 110 mm in height and 31.5 mm in width, facilitating easy integration into existing setups. The mount type includes body ported and base, providing multiple mounting options for installation flexibility. The coil is rated for DC voltages of 12 V and 24 V, allowing it to be powered by commonly available control circuits.

Designed for air fluid with operating pressure range from -100 kPa to 0.7 MPa. Operates within ambient and fluid temperatures from -10°C to 50°C without freezing. Multiple thread standards (G, NPT, Rc, NPTF) for versatile connections.

Double acting valve function with closed pressure centre and exhaust. Maximum flow rate of 1130 L/min for high performance. Aluminium body for lightweight and corrosion resistance. Body ported and base mount types allow flexible installation.

Compact dimensions (110 mm height, 31.5 mm width) for easy integration. Coil rated voltages 12 V and 24 V DC for flexible power supply. 5 ports and 2 positions for multi-functional operation.

This solenoid pilot valve is ideal for industrial pneumatic systems requiring precise actuation and flow control such as automation lines, fluid power circuits, HVAC systems, and laboratory instrumentation. Its Japanese manufacture assures quality and longevity. Enhance your pneumatic control setups with the reliable and versatile SMC SY7120-5Y-02F-Q valve. Browse more Pneumatic Solenoid Valves at EnvMart for additional configuration options from trusted industrial brands.
