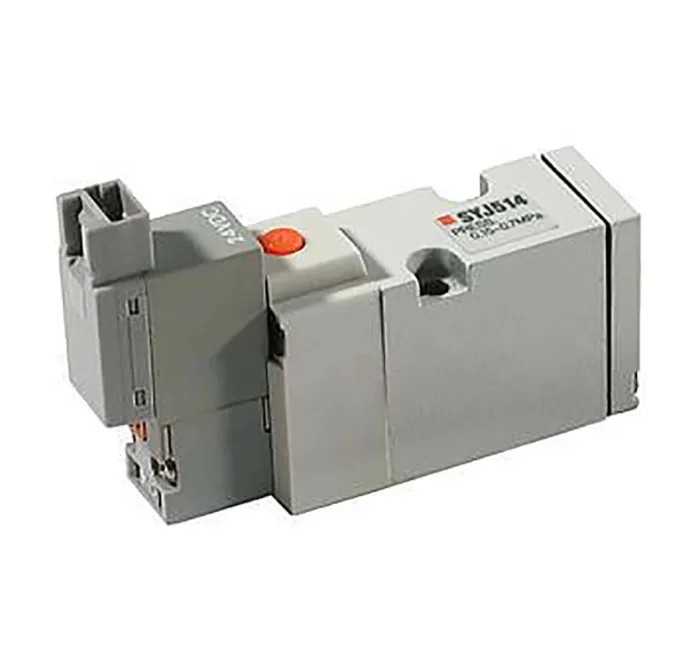

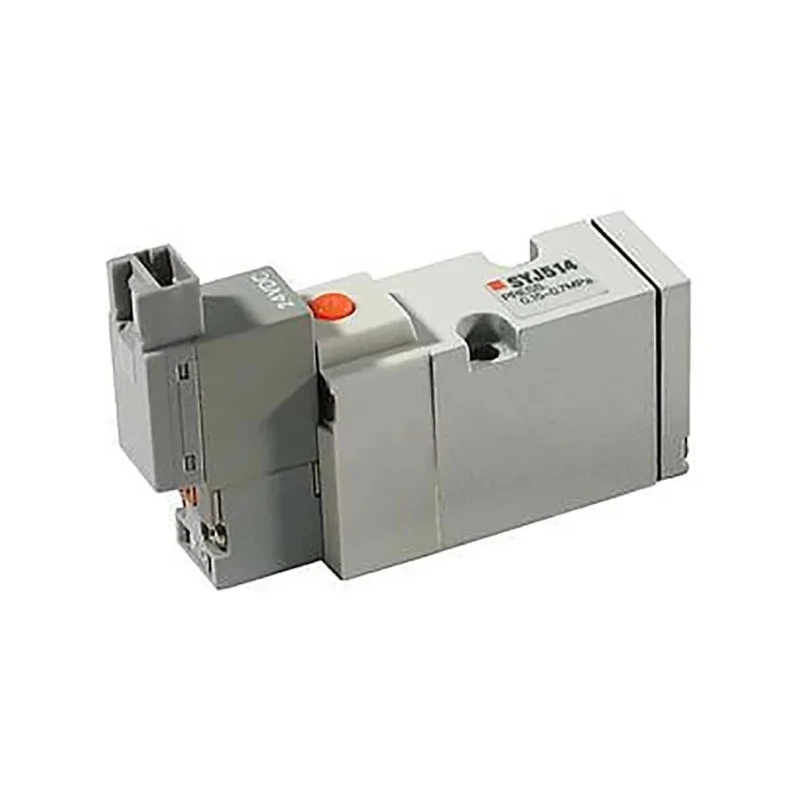

SMC Solenoid Pilot Valve Aluminium Body 3 Ports 0.7 Mpa Max Operating Pressure SYJ500

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Pilot Valve Aluminium Body 3 Ports 0.7 Mpa Max Operating Pressure SYJ500



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SYJ500
Mount Type	Body Ported, Base
Series	SYJ500
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Type P, PE, Type E, Type A, Type R
Number of Positions	2
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Fluid	air
Maximum Flow Rate	329L/min
Minimum Pilot Pressure	0.15MPa
Valve Function	NO, NC
Operating pressure range (MPa)	0.15 to 0.7
Ambient and fluid temperature (°C)	-10 to 50 (no freezing)
Maximum operating frequency (Hz)	5 Hz

Key Features

Aluminium body ensures lightweight and corrosion resistance.
Operates within temperature range -10°C to 50°C without freezing risk.
Supports 3 ports with NO and NC valve functions.
Maximum flow rate of 329 L/min suitable for various pneumatic systems.
Solenoid actuation ensures fast and reliable valve operation.
Designed for air as the working fluid, compatible with pilot pressure as low as 0.15 MPa.
Two-position valve with a maximum operating frequency of 5 Hz.
Seal constructed of durable rubber for enhanced reliability.

Product Description

SMC SYJ522-5LOU-M5-Q Solenoid Pilot Valve from the SYJ500 series is a high-performance pneumatic valve designed for precise fluid power control in industrial applications. Featuring an aluminium body construction, this valve supports three ports with NO (Normally Open) and NC (Normally Closed) configurations, enabling versatile use in pneumatic circuits.

Operating pressure ranges from 0.15 to 0.7 MPa, with a maximum flow rate of 329 L/min, making it suitable for medium-pressure pneumatic systems. The valve is solenoid actuated, providing fast response and reliable switching performance. The unit functions within an ambient and fluid temperature range of -10°C to 50°C, ensuring operation without freezing under standard environmental conditions.

The valve's seal material is rubber, offering robust tightness and durability in pneumatic environments. Mounting options include body ported and base styles, allowing flexible installation to meet varying system configurations. With a maximum operating frequency of 5 Hz and two positions, the SYJ522-5LOU-M5-Q is optimized for frequent cycling in industrial automation setups.

Designed and manufactured in Japan, this product complies with standard industrial quality expectations, though it does not carry specific certifications or approvals. It is ideal for applications in manufacturing, automation, machinery, and fluid control systems requiring pneumatic valve control.

Aluminium body provides strength and corrosion resistance. Supports operation in temperature range from -10°C to 50°C. Rubber seals ensure effective sealing performance. Solenoid actuation for rapid valve switching. Three ports with NO and NC valve functions accommodate diverse pneumatic needs.

Maximum flow rate up to 329 L/min for effective air control. Mounting options include body ported and base configurations. Operates at pressures from 0.15 to 0.7 MPa with a max frequency of 5 Hz.

Explore the full SMC SYJ500 series for additional pneumatic solenoid valve options and accessories to optimize your fluid power systems. Trusted for quality and performance, SMC valves stand out in industrial pneumatic solutions.
