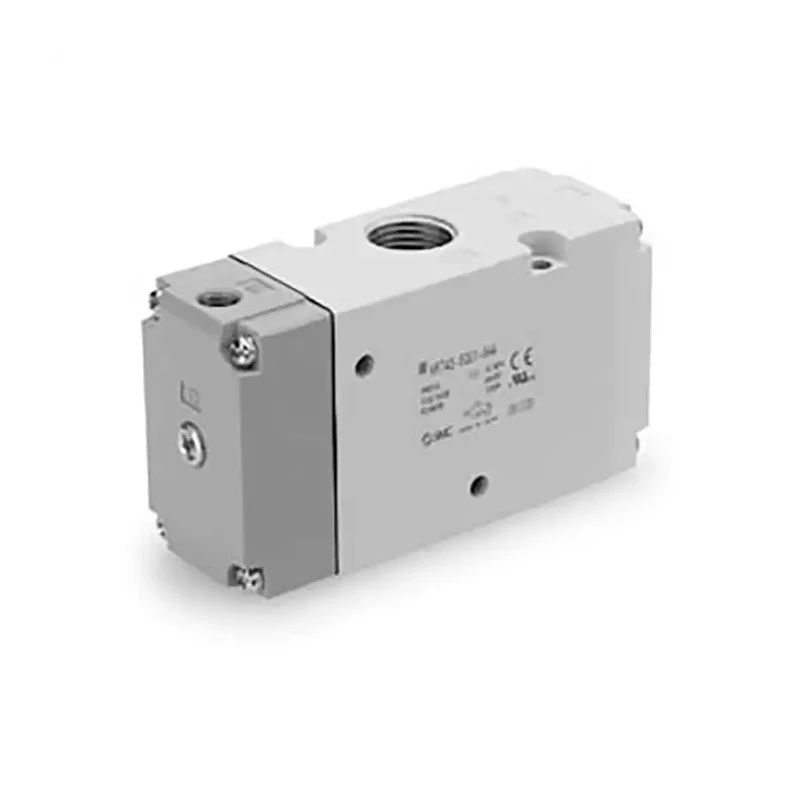

SMC Pneumatic Manual Control Valve VPA500 Series Rc 3/8, 3-Port 2-Position Aluminium Body Japan
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium |
| Maximum Operating Pressure | 1 Mpa |
| Height | 46mm |
| Length | 76.8mm |
| Model | VPA500 |
| Width | 32mm |
| Series | VPA500 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Thread Size | 3/8 in |
| Number of Positions | 2 |
| Port Size | Rc 3/8 |
| Minimum Operating Temperature | -10°C |
| Maximum Flow Rate | 2132L/min |
| Connection Thread Standard | Rc |
| Valve Function | 3/2 |
| 3 Port Air Operated Valve.High flow capacity | Cv1.0 (VPA300), Cv2.3 (VPA500), Cv4.0 (VPA700). Possible to use as either selector valve or divider valve.Changeable from normally closed style to normally open style |
Key Features
- The valve body is constructed from durable aluminium for long service life.
- Operating temperature range is from -10°C to 50°C suitable for various industrial conditions.
- This 3/2 valve can switch between normally closed and normally open styles.
- The compact dimensions are 76.8 mm length, 46 mm height, and 32 mm width.
- Designed for use as a selector or divider valve in pneumatic systems.
- The valve features 3 ports and 2 positions for precise air control.
- It complies with minimal standards and is manufactured in Japan.
- High flow capacity with Cv value of 2.3 specific to VPA500 series.
Product Description
SMC VPA542-1-03A Pneumatic Manual Control Valve of the VPA500 Series is engineered for high reliability and performance in pneumatic systems. It features a robust aluminium body with Rc 3/8 connection thread standard, providing ease of installation and durability. The valve supports a maximum operating pressure of 1 Mpa and a maximum flow rate of 2132 L/min, allowing it to efficiently manage compressed air flow within industrial machinery.
This 3-port, 2-position valve offers versatility by enabling switching between normally closed and normally open operations. Its compact size with dimensions 76.8 mm in length, 46 mm in height, and 32 mm in width allows integration in constrained spaces. Operating temperature ranges from -10°C to 50°C, making it suitable for a variety of industrial environments.
Applications include pneumatic control in manufacturing, automation, and fluid power systems where precise manual control of compressed air is necessary. The valve's design allows use as a selector valve or a divider valve, increasing its utility across multiple pneumatic applications.
Manufactured in Japan, this valve complies with relevant industrial standards, ensuring quality and consistent performance. It is specifically designed to handle high flow capacity with a Cv rating of 2.3 for the VPA500 series, providing efficient air control for demanding systems.
The valve body is made of aluminium for enhanced durability and corrosion resistance. Designed for 3-port, 2-position operation allowing flexible pneumatic routing. Supports Rc 3/8 connection thread standard ensuring compatibility with common pneumatic fittings.
Maximum operating pressure is 1 Mpa for robust system integration. Maximum flow rate of 2132 L/min supports high throughput pneumatic applications. Operates reliably within -10°C to 50°C temperature range suitable for industrial environments.
Can be changed from normally closed to normally open style for versatile control. Compact size with length 76.8 mm, height 46 mm, and width 32 mm for space-saving installation.
This Pneumatic Manual Control Valve is ideal for industrial use in manufacturing plants, automation systems, HVAC, and fluid power applications. It ensures precise manual control of pneumatic flow while maintaining high durability and performance standards.
Explore the complete range of pneumatic valves and components on EnvMart for tailored industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure is 1 Mpa.
It has a maximum flow rate of 2132 L/min.
The dimensions are 76.8 mm in length, 46 mm in height, and 32 mm in width.
The operating temperature range is from -10°C to 50°C.
This valve features 3 ports.
It operates as a 3/2 valve, allowing switching between normally closed and normally open styles.
The valve has a Rc 3/8 connection thread size.
It is suitable for pneumatic control in manufacturing, automation, and fluid power systems.
The valve body is constructed from aluminium.
It is manufactured in Japan.
The Cv value for this valve is 2.3.
Yes, it can be used as either a selector valve or a divider valve.
