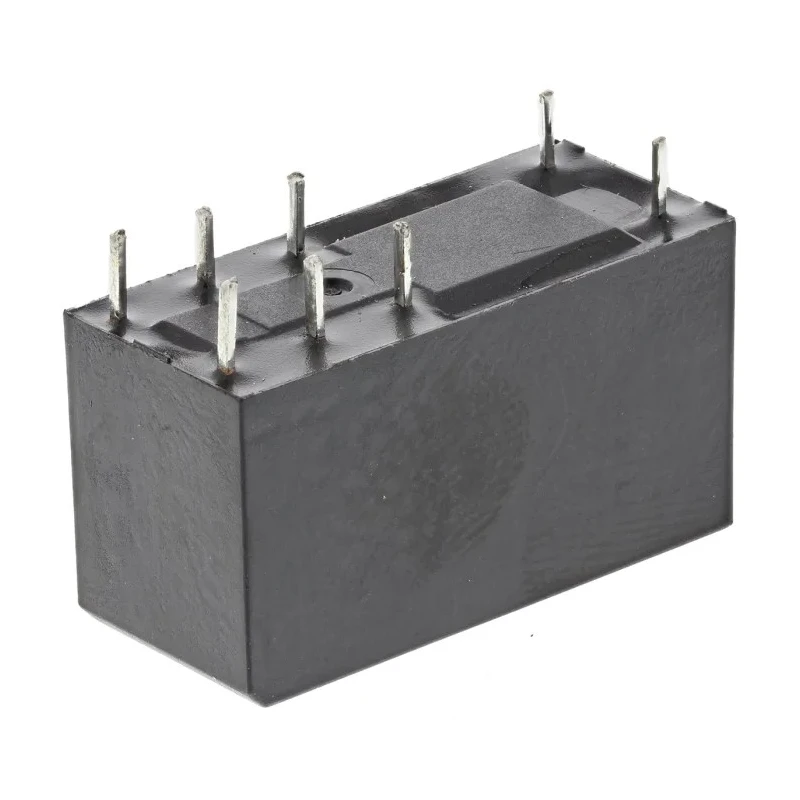

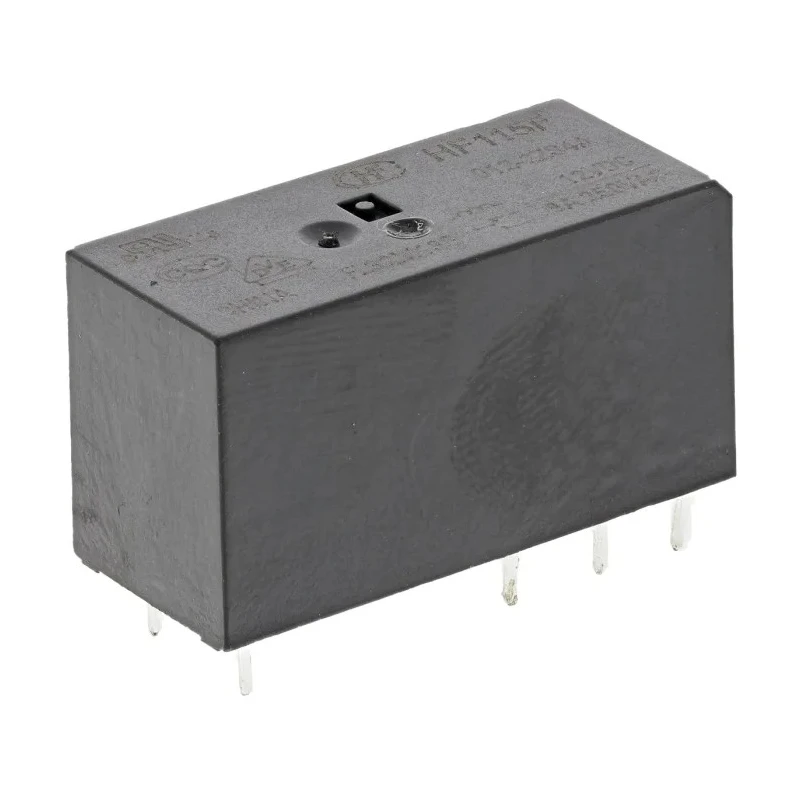

RS PRO PCB Power Relay with 12V DC Coil, 8A Switching Current, DPDT Contact Configuration 476-753

RS PRO 476-753 is a high-quality PCB Power Relay featuring a 12V DC coil and double-pole double-throw (DPDT) configuration designed for industrial and electronic applications requiring reliable switching of currents up to 8A.

This low profile relay has a compact form factor with a maximum height of 15.7mm, length of 29mm, and width of 12.7mm, making it suitable for space-constrained PCB designs. The solder terminal mount type enables firm connections to printed circuit boards, ensuring stable operation.

The relay supports switching voltages up to 300V DC and 440V AC, with a maximum switching power capacity of 2kVA. It operates reliably across a wide temperature range from -40°C to 85°C, suitable for diverse industrial environments.

The coil resistance is 360Ω with a coil power consumption of 400mW, maintaining efficiency. The silver alloy contacts provide a low contact resistance of 100mΩ, facilitating excellent electrical conductivity. The relay is designed to withstand surges up to 10kV and features a dielectric strength of 5kV between the coil and contacts, prioritizing electrical safety.

It complies with international safety and quality standards including RoHS, UL (File no. E134517), VDE (File no. 116934), CQC (File no. CQC02001001951), and IEC 60335-1. The relay's wash tight construction and 10mm creepage distance between contacts further ensure durability and reliability in automated machinery applications.

This RS PRO relay is ideal for use in industrial automation, electrical control systems, signal conditioning, and manufacturing equipment requiring compact and reliable power relay solutions. Set contains one unit packaged ready for insertion into equipment for improved production efficiency.

Browse additional Power Relay products in the Electronics & Electricals > Relays & Contactors category at EnvMart for comprehensive industrial relay solutions. The relay provides reliable PCB mounting and solder terminal connections.

It operates effectively between -40°C and 85°C ambient temperatures. Includes low profile design with a maximum height of 15.7mm for compact applications. Supports switching voltages up to 300V DC and 440V AC with switching power up to 2kVA.

Features high dielectric strength of 5kV between coil and contacts for electrical safety. Contacts are made of silver alloy with low contact resistance of 100mΩ for efficient conductivity. Has a coil resistance of 360Ω consuming 400mW power for operation.

Conforms to RoHS environmental standards and certifications including UL, VDE, and CQC. Ensures wash tight construction and complies with IEC 60335-1 safety standards.
