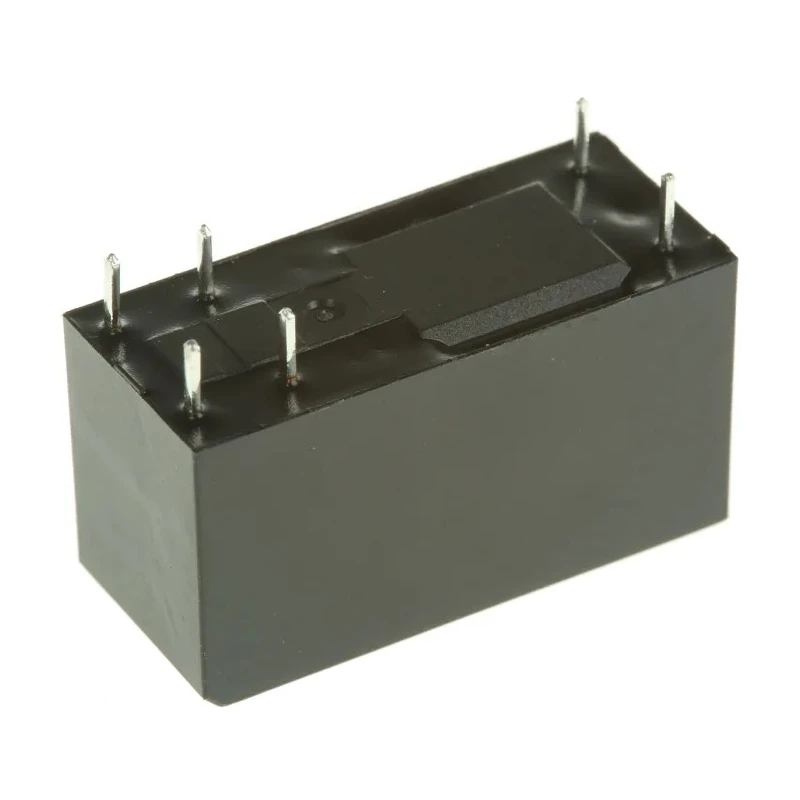

RS PRO PCB Power Relay 12V DC Coil 16A Switching Current SPST 476-703
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 476-703 |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
| Standards and Approvals | IEC 60335-1, UL, CUL, CQC, VDE, RoHS compliant |
Key Features
- This non-latching miniature relay offers high inrush capability, handling up to 80A TV-5 at 125V AC.
- Compact dimensions of 29 x 15.7 x 15.7 mm ensure space-saving integration on circuit boards.
- Silver alloy contacts provide reliable conductivity with a contact resistance of 100 mΩ.
- Suitable for switching DC voltage up to 300V and AC voltage up to 440V with a maximum switching power of 4 kVA.
- Coil resistance measures 360 Ω with coil power consumption limited to 400 mW.
- Operates reliably within a temperature range from -40 °C to 85 °C.
- Plastic sealed and flux proofed housing offers excellent moisture resistance for enhanced durability.
- Ideal for industrial automation, electrical control, and signal conditioning applications where compact and reliable relays are critical.
Product Description
RS PRO 476-703 PCB Power Relay is a high-quality single-pole single-throw (SPST) non-latching relay designed for PCB mounting in compact electronic circuits. Operating with a 12V DC coil voltage, this relay provides a switching current capacity of 16A and supports DC switching voltages up to 300V and AC switching voltages up to 440V.
Its miniature design with dimensions of 29 mm length, 15.7 mm width, and 15.7 mm height allows for space-efficient installations where PCB space is limited.
The relay features silver alloy contacts which ensure low contact resistance of 100 mΩ and robust conductivity. Its coil resistance is 360 Ω with a coil power consumption of 400 mW, ensuring efficient operation.
Engineered to endure harsh environmental conditions, it operates reliably within a temperature range from -40°C to 85°C and is plastic sealed and flux proofed to resist moisture ingress.
It has a high inrush current capability of TV-5 80A at 125V AC, making it suitable for applications requiring high transient current handling. Non-latching SPST signal relay for reliable switching. High inrush current capacity of 80A TV-5 at 125V AC.
Compact size optimized for PCB mounting. Durable silver alloy contacts with low contact resistance. Wide operating temperature range of -40°C to 85°C. Plastic sealed, flux proof housing for moisture resistance. Suitable for automation, industrial control, and electrical applications.
Conforms to international safety standards including IEC 60335-1, UL, CUL, CQC, and VDE. RoHS compliant ensuring environmentally safe materials. This RS PRO relay is ideal for use in electrical control and automation systems, industrial machines, and other devices requiring high-reliability switching components.
Explore our extensive category of Power Relays on EnvMart to find compatible components for your industrial or commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a maximum switching current capacity of 16A.
This model has compact dimensions of 29 mm in length, 15.7 mm in width, and 15.7 mm in height.
The relay operates with a coil voltage of 12V DC.
It features a single-pole single-throw (SPST) contact configuration.
The relay can switch DC voltages up to 300V and AC voltages up to 440V.
The coil resistance measures 360 Ω.
The coil power consumption is limited to 400 mW.
The contacts are made of silver alloy, providing reliable conductivity.
It operates reliably within a temperature range from -40 °C to 85 °C.
It conforms to international safety standards including IEC 60335-1, UL, CUL, CQC, VDE, and is RoHS compliant.
This model is designed for PCB mounting.
The contact resistance is 100 mΩ, ensuring efficient operation.
