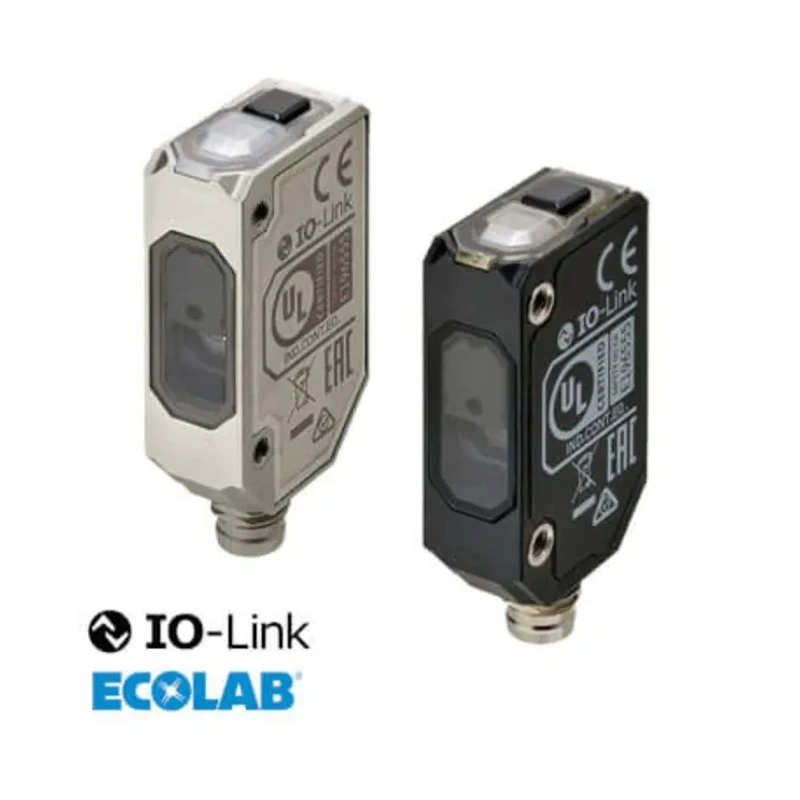

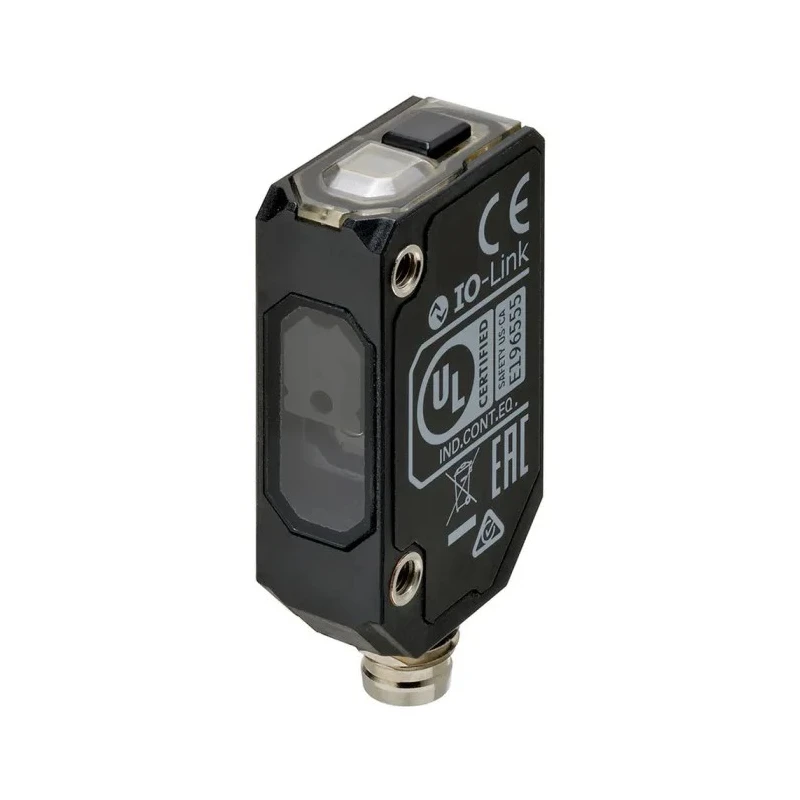

Omron Diffuse Photoelectric Sensor Compact Sensor, Detection Range 50 mm to 1 m, NPN Output E3AS-F1000IPN M3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Response time | 150ms |
| Light Source | Infrared |
| Detection range | 50 mm → 1 m |
| Model | E3AS-F1000IPN M3 |
| IP Rating | IP67, IP67G, IP69K |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | NPN |
| Series | E3AS-F |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 30mA |
| DetectIon Type | Diffuse |
| Terminal type | M8 Connector |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Sensor Style | Compact |
Key Features
- This sensor offers a compact size suitable for mounting in confined spaces.
- It features NPN output type with M8 connector terminal for reliable connectivity.
- The sensor operates at a maximum DC voltage of 30V and maximum current of 30mA.
- Equipped with an infrared light source and IO-Link interface for precise communication and control.
- IP67, IP67G, and IP69K rated for robust protection against dust and water ingress.
- Designed to function in wide temperature ranges from -20°C to 55°C.
- Has a fast response time of 150ms suitable for high-speed detection processes.
- Constructed with durable polybutylene terephthalate and polycarbonate housing materials.
Product Description
Omron E3AS-F1000IPN M3 diffuse photoelectric sensor is a compact industrial sensor designed for reliable detection within a 50 mm to 1 m range. Its compact size allows installation in limited spaces, making it suitable for diverse industrial automation setups including conveyor line monitoring.
This sensor employs an NPN output combined with a sturdy M8 connector terminal ensuring stable electrical connections. Operating under a maximum DC voltage of 30V and carrying a maximum current of 30mA, it caters to efficient power consumption and performance.
Incorporating an infrared light source and IO-Link interface technology, this sensor delivers precise, real-time data communication, which assists in reducing startup times and improving changeover efficiency in manufacturing processes. The durable housing made from polybutylene terephthalate and polycarbonate enhances its mechanical robustness and longevity.
It has IP67, IP67G and IP69K protection ratings that guarantee resistance to dust ingress and water jets, enabling operation in harsh industrial environments. Operating temperature ranges from -20°C to 55°C, suitable for various environmental conditions.
The response time of 150 milliseconds facilitates rapid and accurate detection, which is critical for high-speed industrial automation tasks. This sensor is ideal for detecting low-reflective and various types of conveyed workpieces across conveyor widths.

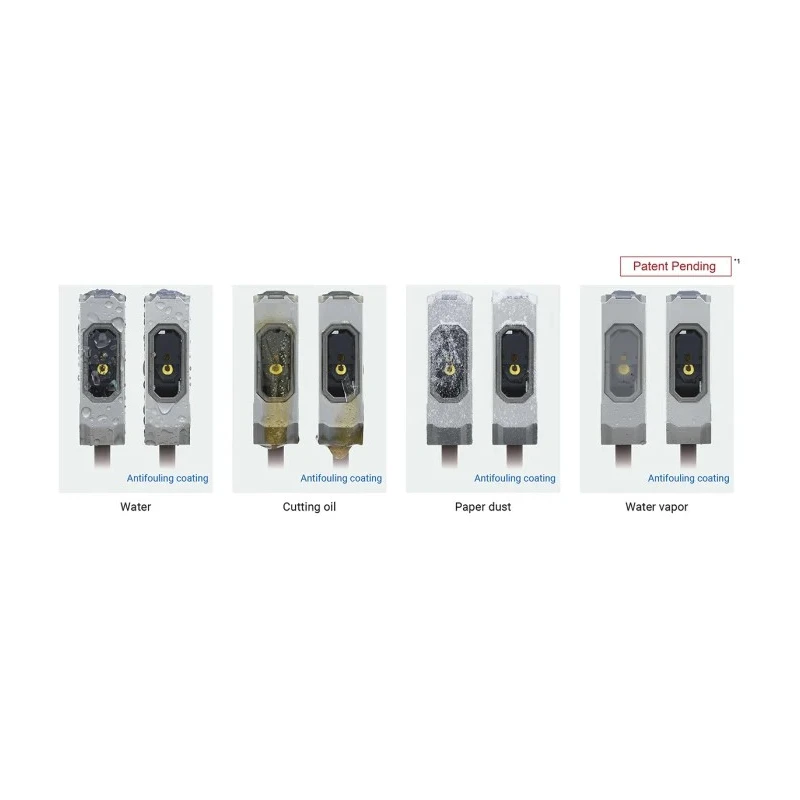

Designed and manufactured in China, the Omron E3AS-F1000IPN M3 is suited for use in industrial, manufacturing, automation, and conveyor control applications. Its advanced features like antifouling coatings and laser sealing technology minimize maintenance and enhance detection reliability.
This sensor offers a compact size suitable for mounting in confined spaces. It features NPN output type with M8 connector terminal for reliable connectivity. The sensor operates at a maximum DC voltage of 30V and maximum current of 30mA.
Equipped with an infrared light source and IO-Link interface for precise communication and control. IP67, IP67G, and IP69K rated for robust protection against dust and water ingress. Designed to function in wide temperature ranges from -20°C to 55°C.
Has a fast response time of 150ms suitable for high-speed detection processes. Constructed with durable polybutylene terephthalate and polycarbonate housing materials. Ideal for conveyor line applications enabling detection of various types of workpieces.
Explore more Photoelectric Sensors and automation solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 50 mm to 1 m.
It features an NPN output type.
The maximum operating voltage is 30V DC.
The response time is 150 milliseconds, suitable for high-speed detection processes.
It has IP67, IP67G, and IP69K ratings, providing protection against dust and water ingress.
The housing is constructed from polybutylene terephthalate and polycarbonate.
The sensor operates within a temperature range of -20°C to 55°C.
It uses an infrared light source for detection.
It features an M8 connector terminal for reliable connectivity.
Yes, its compact size makes it suitable for mounting in confined spaces.
It is equipped with an IO-Link interface for precise communication and control.
This sensor is designed and manufactured in China.
